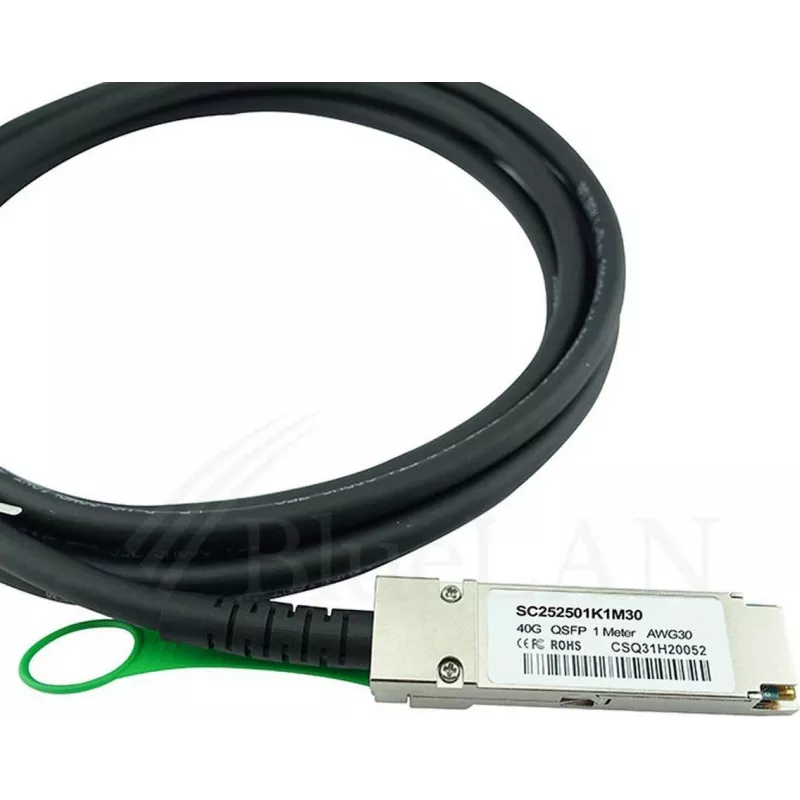

BlueOptics LSWM1QSTK0 compatibile BlueLAN cavo Direct Attach QSFP, 40GBASE-CR4, 1m, 30AWG

The BlueOptics LSWM1QSTK0 is a high-performance, compatible direct attach copper (DAC) cable designed for H3C LSWM1QSTK0 switches. It provides a cost-effective, low-power solution for short-range 40 Gbps connections in data centers and high-performance computing environments.

Advantages

This passive copper cable offers zero power consumption, hot-swappable convenience, and full compliance with SFF-8436 standards. It ensures reliable, low-latency data transmission for 40GBASE-CR4 Ethernet and InfiniBand QDR networks.

Suitable for

• Data center interconnect (DCI) within racks
• High-performance computing (HPC) clusters
• Enterprise network aggregation
• Storage area networks (SAN)

Key specifications

• Product Type: Direct Attach Cable (DAC)
• Cable Type: Passive Copper
• Connector Type: QSFP to QSFP
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-CR4
• Supported Protocols: Ethernet, InfiniBand QDR
• Cable Length: 1 Meter
• Wire Gauge: 30 AWG
• OEM Compatibility: H3C LSWM1QSTK0
• Hot-Swappable: Yes
• Power Consumption: Passive (0W)

Recommendations

For optimal performance, use this cable with compatible H3C or BlueOptics QSFP ports. Ensure proper cable management to avoid bending beyond the minimum bend radius.
