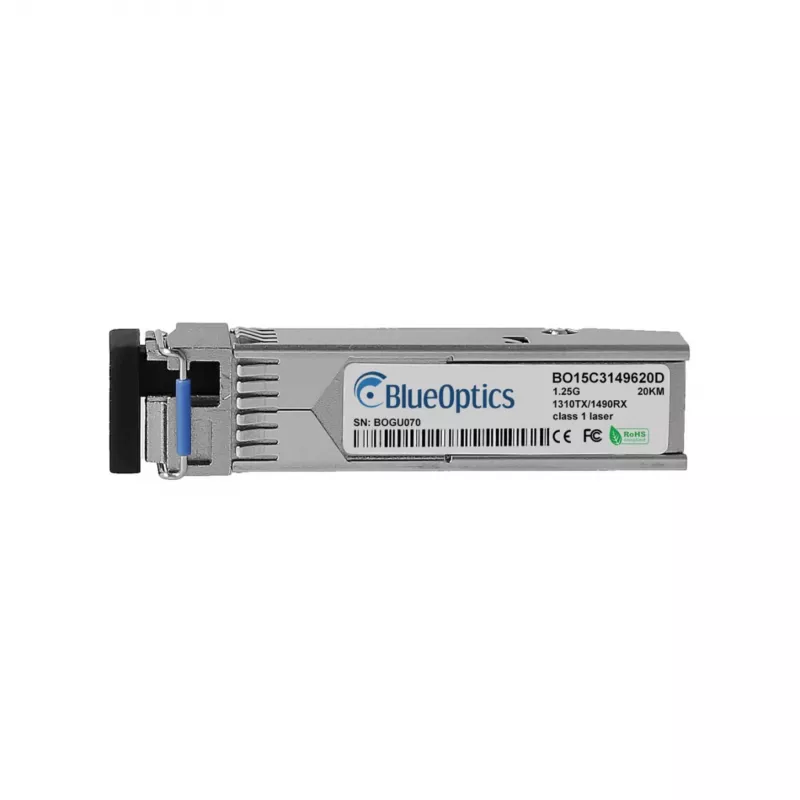

BlueOptics modulo SFP BO15C3149620D compatibile con TP-Link TL-SM321B

The BlueOptics SFP Module BO15C3149620D is a high-performance, cost-effective transceiver designed for seamless compatibility with TP-Link TL-SM321B switches and routers. This BiDi (Bi-Directional) SFP module operates on a single strand of single-mode fiber, utilizing 1490 nm for transmission and 1310 nm for reception, enabling data rates up to 1.25 Gbps over distances of up to 20 km. It is ideal for Gigabit Ethernet applications in enterprise and data center environments.

Advantages

This module offers reliable connectivity with Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its hot-pluggable design ensures easy installation without network downtime. The metal housing provides durability and effective heat dissipation, while compliance with IEEE 802.3z and SFP MSA standards guarantees interoperability with a wide range of networking equipment.

Suitable for

• Gigabit Ethernet connections in LANs and WANs
• Fiber-to-the-home (FTTH) and fiber-to-the-building (FTTB) deployments
• Data center interconnects and enterprise networks
• Telecommunications and service provider infrastructures

Key specifications

• Module Type: SFP Transceiver
• Compatibility: TP-Link TL-SM321B
• Data Rate: 1.25 Gbps
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Simplex
• Wavelength (Tx): 1490 nm
• Wavelength (Rx): 1310 nm
• Max Transmission Distance: 20 km
• DDM/DOM Support: Yes
• Bi-Directional (BiDi): Yes
• Standard Compliance: IEEE 802.3z, SFP MSA
• Operating Temperature Range: 0°C to 70°C
• Hot-Pluggable: Yes
• Power Supply: 3.3 V
• Laser Type: DFB Laser
• Receiver Type: PIN Photodiode
• Application: Gigabit Ethernet
• Cable Compatibility: OS1 / OS2 Single-Mode Fiber
• Housing Material: Metal
• RoHS Compliant: Yes

Recommendations

For optimal performance, pair this module with OS1 or OS2 single-mode fiber cables and ensure your TP-Link TL-SM321B device is updated with the latest firmware. This module is a direct replacement for the original TP-Link TL-SM321B SFP, offering identical functionality at a competitive price.
