BlueOptics QSFP-40G-PLR4-SG-BO Transceiver QSFP compatibile Synology, MPO/MTP, 40GBASE-PLR4, monomodale, 10 km

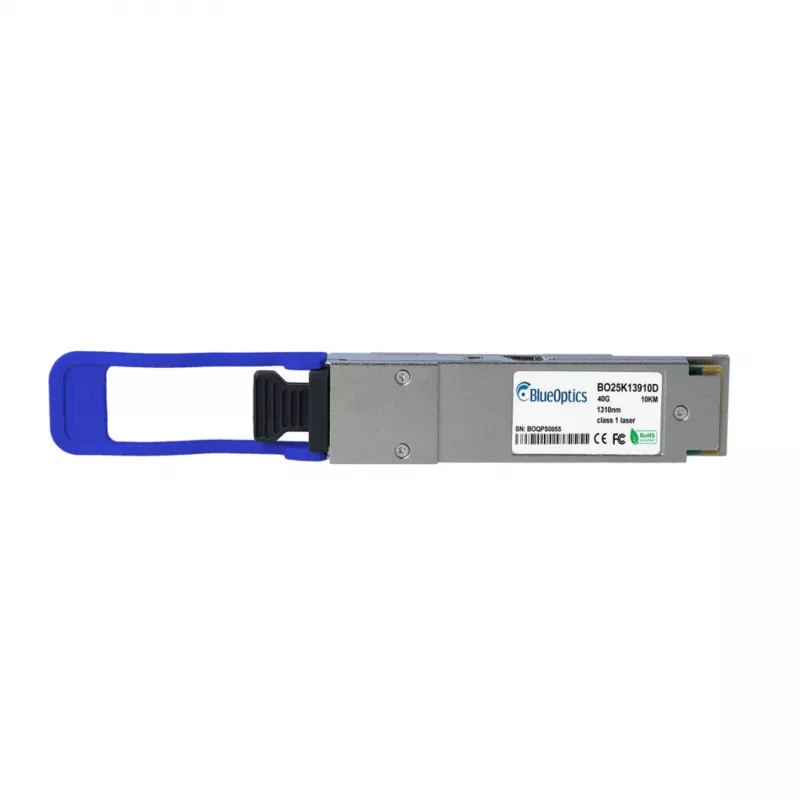

The BlueOptics QSFP-40G-PLR4-SG-BO is a high-performance QSFP optical transceiver module designed for 40 Gigabit Ethernet applications. It is fully compatible with Synology QSFP-40G-PLR4 equipment, offering reliable connectivity for data centers and enterprise networks. This transceiver utilizes parallel optics with four 10 Gbps lanes operating at 1310 nm over single-mode fiber, achieving a reach of up to 10 km via an MPO/MTP connector.

Advantages

Cost-effective alternative to OEM modules with guaranteed compatibility and performance. Hot-pluggable design simplifies installation and maintenance. Supports Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Low power consumption of max 3.5 W reduces energy costs.

Suitable for

• 40 Gigabit Ethernet connections in data centers
• Enterprise network backbone links
• High-speed storage area networks (SAN)
• Interconnect between switches, routers, and servers

Key specifications

• Form Factor: QSFP (Quad Small Form-Factor Pluggable)
• Data Rate: 40 Gbps
• Ethernet Standard: 40GBASE-PLR4
• Wavelength: 1310 nm (4x 10Gbps lanes)
• Connector Type: MPO/MTP (12-fiber)
• Fiber Type: Single-Mode Fiber (SMF)
• Maximum Reach: 10 km
• Compatibility: Synology (QSFP-40G-PLR4 equivalent)
• Digital Diagnostic Monitoring (DDM): Supported
• Power Consumption: Max 3.5 W
• Operating Temperature Range: 0°C to 70°C (32°F to 158°F)
• Hot Swappable: Yes
• Industry Compliance: MSA Compliant
• Safety & Environmental Compliance: RoHS, CE, FCC
• Transmitter Technology: DFB Laser
• Receiver Technology: PIN Photodiode
• Number of Optical Channels: 4 Transmit, 4 Receive
• Optical Interface Type: Parallel Optics

Recommendations

For optimal performance, use with single-mode fiber patch cables terminated with MPO/MTP connectors. Ensure your network equipment supports 40GBASE-PLR4 standard. This module is ideal for upgrading to 40G speeds in existing fiber infrastructure.
