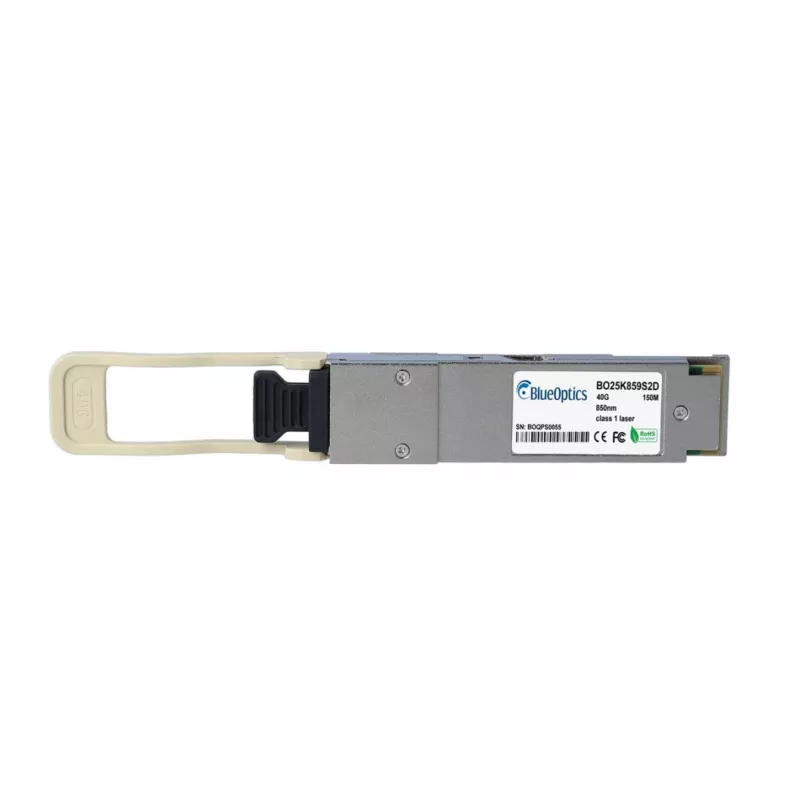

BLUEOPTICS QSFP-40G-SR4-TL-BO modulo transceiver QSFP+ 40GBASE-SR4, 850nm, 150m OM4 MMF, MPO/MTP

The BLUEOPTICS QSFP-40G-SR4-TL-BO is a high-performance QSFP+ transceiver module designed for 40 Gigabit Ethernet applications. It is compatible with TP-Link and other major networking equipment, providing reliable connectivity for data centers and high-performance computing environments. This module supports 40GBASE-SR4 standard over multi-mode fiber with MPO/MTP connector, delivering data rates up to 40 Gbps.

Advantages

This transceiver offers hot-pluggable functionality, low power consumption under 1.5W, and Digital Diagnostic Monitoring (DDM) for real-time performance tracking. Its VCSEL laser technology ensures efficient optical transmission, and the commercial temperature range (0 to 70°C) suits most indoor environments.

Suitable for

• 40 Gigabit Ethernet networks
• Data center interconnects
• High-performance computing clusters
• Enterprise and service provider networks

Key specifications

• Form Factor: QSFP+
• Data Rate: 40 Gbps
• Transceiver Type: 40GBASE-SR4
• Wavelength: 850 nm
• Max Distance: 150m (OM4), 100m (OM3)
• Fiber Type: Multi-mode (MMF)
• Connector: MTP/MPO-12 female
• DDM/DOM: Yes
• Power Consumption: < 1.5 W
• Operating Temperature: 0 to 70°C
• Standards: IEEE 802.3ba
• Hot Swappable: Yes
• Laser Type: VCSEL
• Number of Lanes: 4 Tx / 4 Rx
• Compatibility: Multi-vendor (Cisco, Juniper, Arista, etc.)

Recommendations

For optimal performance, use with OM4 multi-mode fiber and ensure proper MPO/MTP connector cleaning. This module is an ideal replacement for OEM transceivers, offering cost savings without compromising quality.
