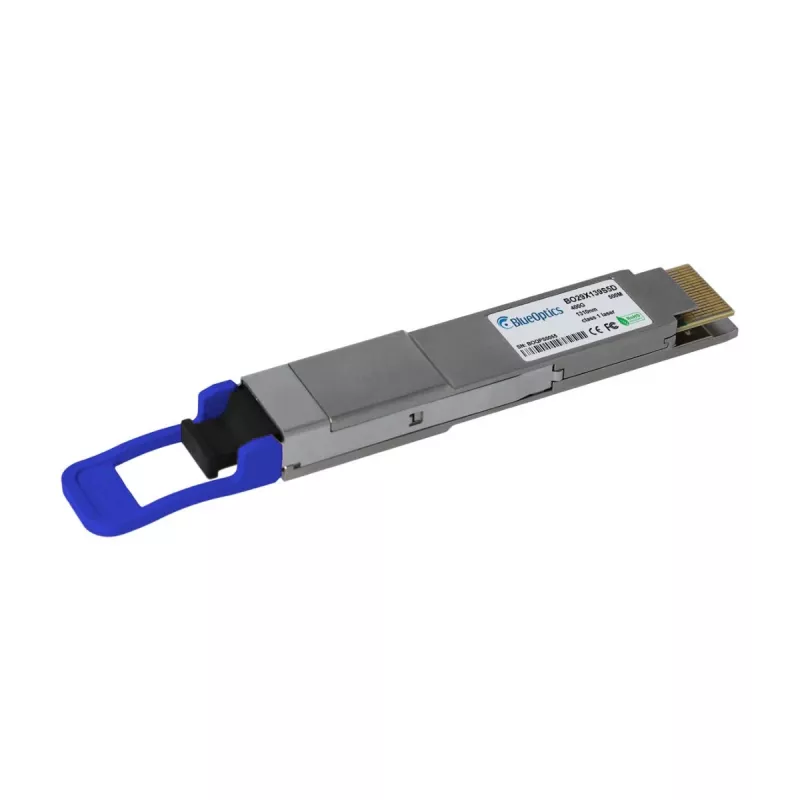

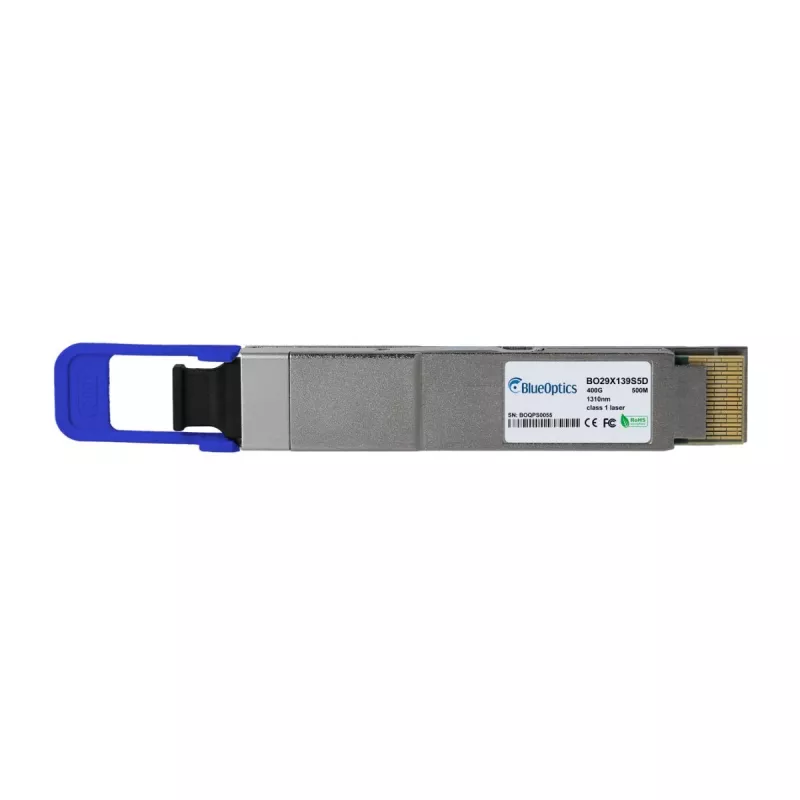

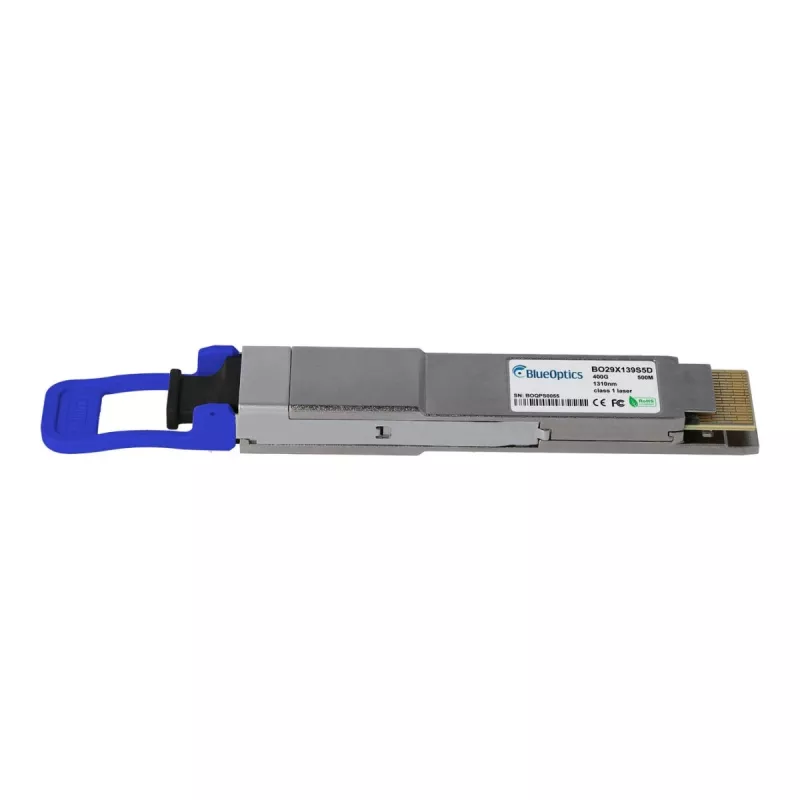

BlueOptics QSFP-DD-400G-DR4 modulo transceiver QSFP-DD BO29X139S5D compatibile

The BlueOptics QSFP-DD-400G-DR4 (BO29X139S5D) is a high-performance, hot-pluggable transceiver module designed for 400 Gigabit Ethernet applications. It is fully compatible with the QSFP-DD MSA standard and supports 400GBASE-DR4 optical interface, enabling high-speed data transmission over single-mode fiber.

Advantages

This module offers a cost-effective and reliable solution for data center and enterprise networks requiring high bandwidth. With low power consumption (<12W) and support for DDM/DOM, it provides real-time monitoring of optical parameters. The MPO-12 connector simplifies cabling and reduces installation time.

Suitable for

• Data center interconnects
• Enterprise network backbone
• High-performance computing clusters
• Telecommunications infrastructure

Key specifications

• Form Factor: QSFP-DD
• Data Rate: 400 Gbps (8x 50G PAM4 electrical, 4x 100G PAM4 optical)
• Wavelength: 1310 nm
• Max Reach: 500 m over single-mode fiber (OS2)
• Connector: MPO-12 (MTP/MPO)
• Power Consumption: < 12 W
• Operating Temperature: 0°C to 70°C
• Compliance: IEEE 802.3bs, QSFP-DD MSA, RoHS

Recommendations

For optimal performance, use with OS2 single-mode fiber patch cables and ensure proper cleaning of MPO connectors. Compatible with a wide range of networking equipment from leading vendors such as Cisco, Juniper, Arista, and Mellanox.
