BlueOptics QSFP28 100GBASE-LR4 ricetrasmettitore BO28L13610D compatibile con Finisar FTLC1154RDPL4

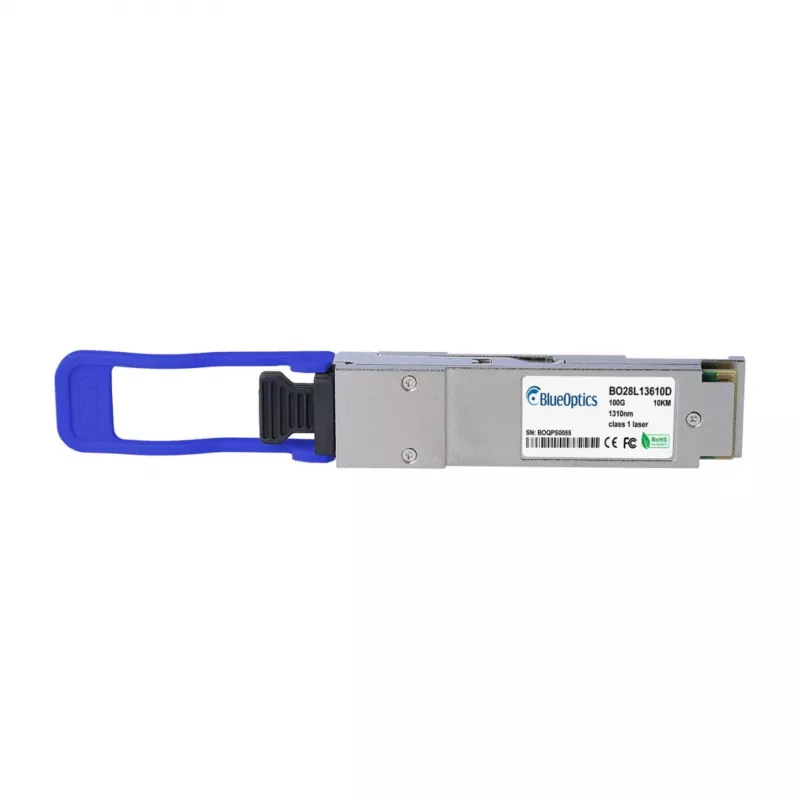

The BlueOptics BO28L13610D is a high-performance QSFP28 transceiver designed for 100 Gigabit Ethernet applications. It is fully compatible with Finisar FTLC1154RDPL4 and offers reliable connectivity over single-mode fiber at distances up to 10 km. This hot-pluggable module supports 100GBASE-LR4 protocol and features LAN-WDM wavelengths for efficient data transmission.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Supports Digital Diagnostics Monitoring (DDM) for real-time monitoring of operating parameters. Low power consumption of less than 4.5W ensures energy efficiency. Compliant with IEEE 802.3bm and QSFP28 MSA standards for broad compatibility.

Suitable for

• Data center interconnects
• Enterprise networking
• Telecommunications
• High-performance computing

Key specifications

• Form Factor: QSFP28
• Data Rate: 100 Gbps
• Protocol: 100GBASE-LR4
• Max Distance: 10 km
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Wavelengths: LAN-WDM (1295.56nm, 1300.05nm, 1304.58nm, 1309.14nm)
• DDM/DOM Support: Yes
• Hot-Pluggable: Yes
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 4.5 W
• Compatibility: Finisar FTLC1154RDPL4 and MSA Compliant QSFP28 Ports
• Standards Compliance: IEEE 802.3bm, QSFP28 MSA, SFF-8665, SFF-8636
• Laser Type: DFB
• Power Supply: 3.3 V
• RoHS Compliant: Yes

Recommendations

This transceiver is ideal for upgrading network infrastructure to 100G speeds. Ensure your switch or router supports QSFP28 and 100GBASE-LR4 for optimal performance.
