BlueOptics Ruckus 10G-SFPP-TWX-0301 cavo DAC SFP+ BlueLAN compatibile 3m

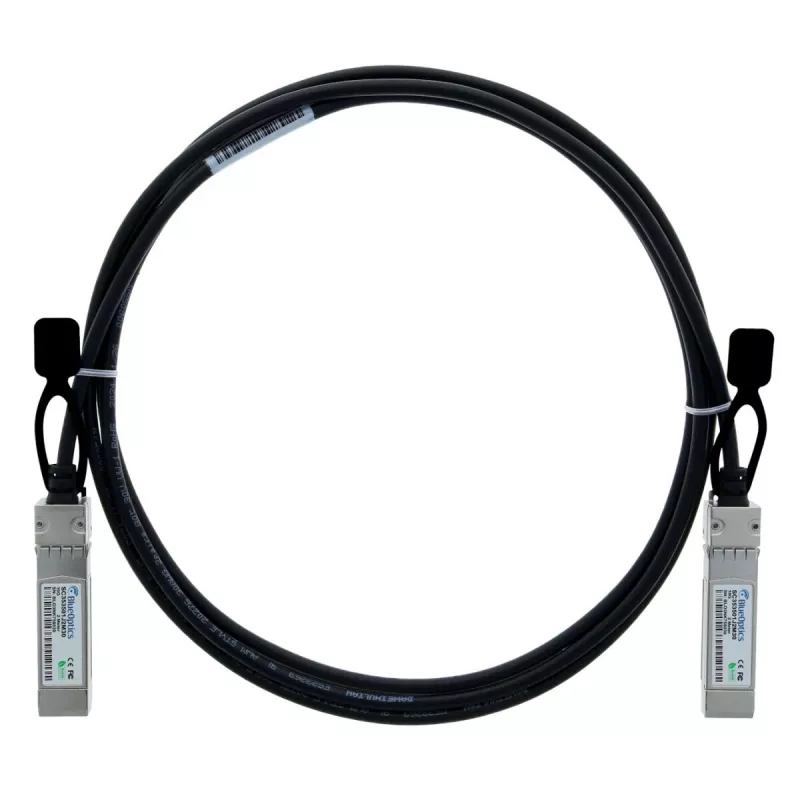

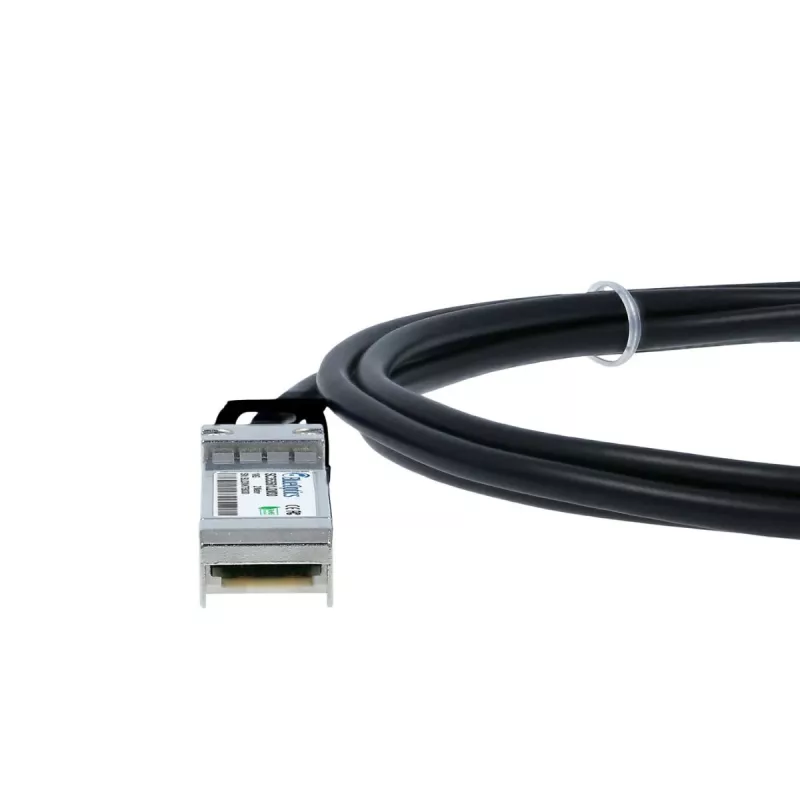

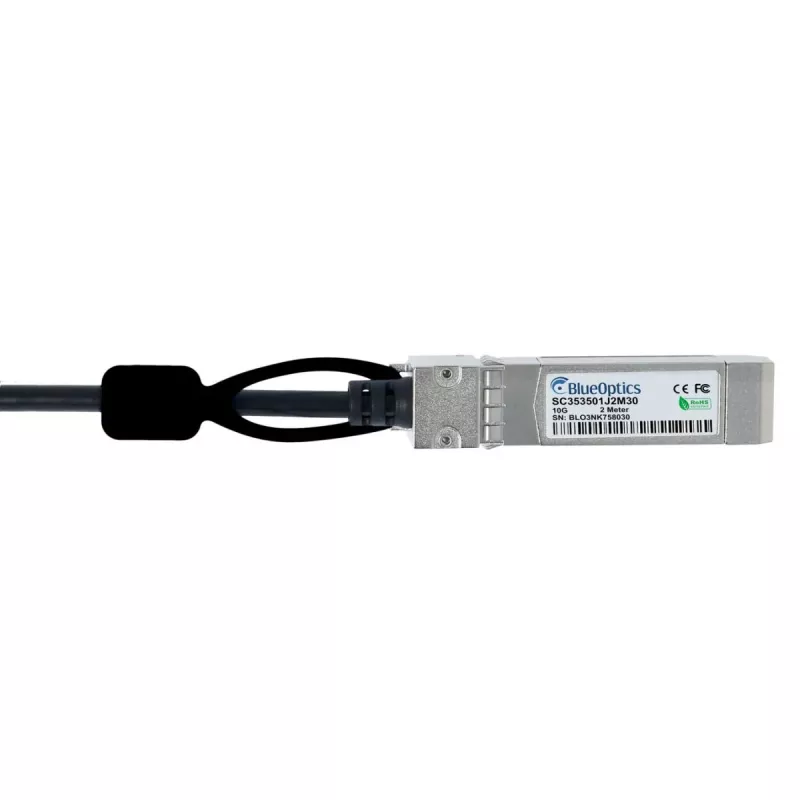

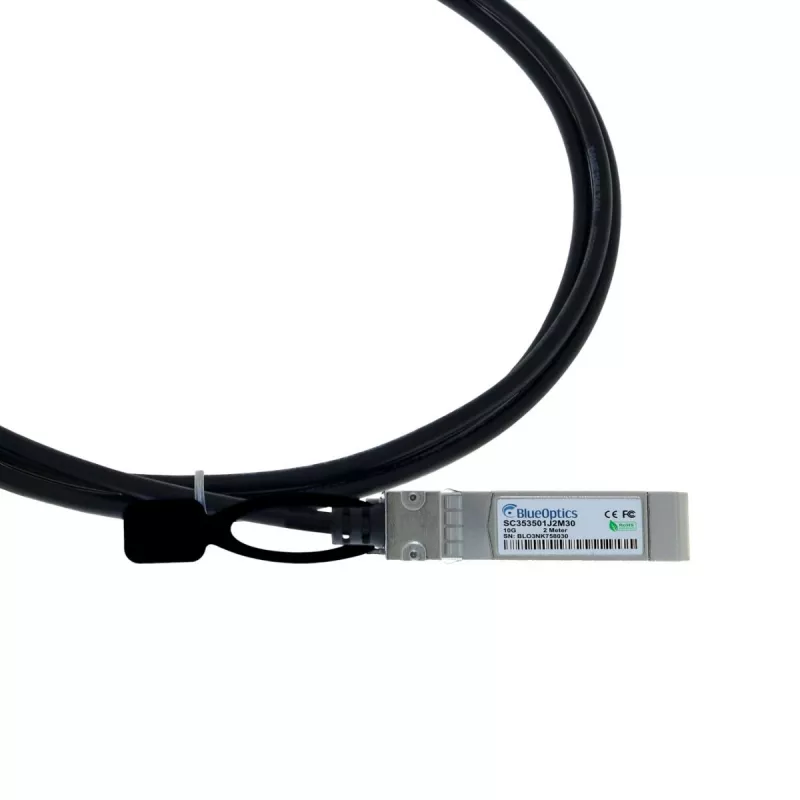

The BlueOptics Ruckus 10G-SFPP-TWX-0301 Compatible BlueLAN DAC SFP+ Cable is a high-performance direct attach copper cable designed for 10 Gigabit Ethernet connections. With a length of 3 meters and passive copper construction, it provides reliable, low-latency connectivity for data center and enterprise networks. This cable is fully compatible with Ruckus 10G-SFPP-TWX-0301 transceivers and meets MSA standards for interoperability.

Advantages

Cost-effective solution for short-range 10GbE connections without the need for separate transceivers and fiber cables. Low power consumption (<0.1W) reduces energy costs. Hot-swappable design allows for easy installation and maintenance without network downtime. Passive copper construction ensures durability and consistent performance.

Suitable for

• Data center interconnects
• Network attached storage (NAS) connections
• Server-to-server links
• Enterprise network backbone

Key specifications

• Cable Type: Direct Attach Copper (DAC) Passive
• Connector Type: SFP+ to SFP+
• Data Rate: 10 Gbps (10GbE)
• Length: 3 meters (9.84 ft)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Compliance: MSA Compliant, RoHS, CE, FCC

Recommendations

For optimal performance, use this cable with compatible Ruckus 10G-SFPP-TWX-0301 ports. Ensure proper handling to avoid damage to connectors. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks.
