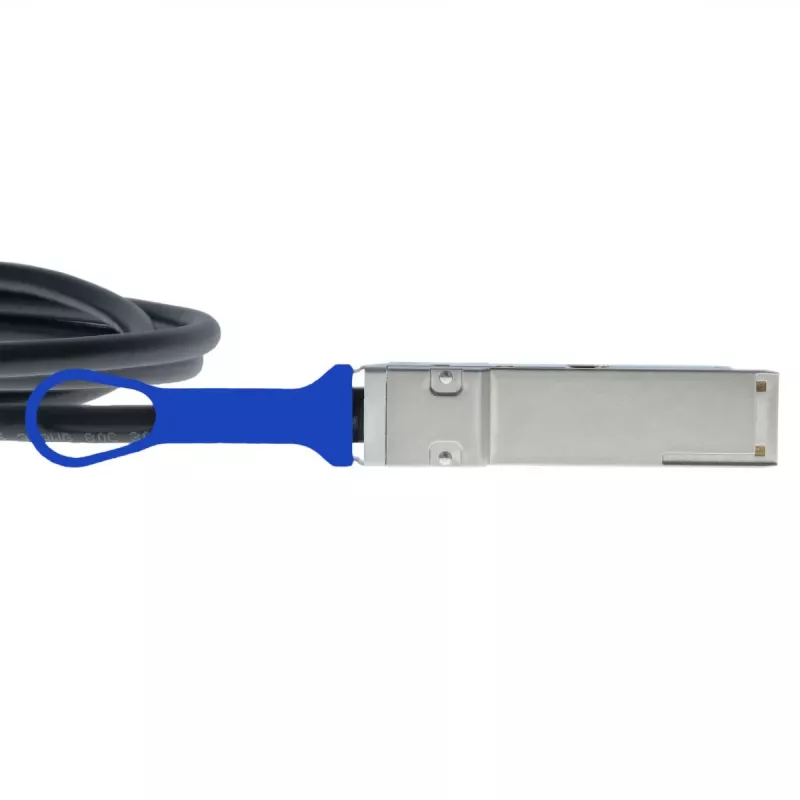

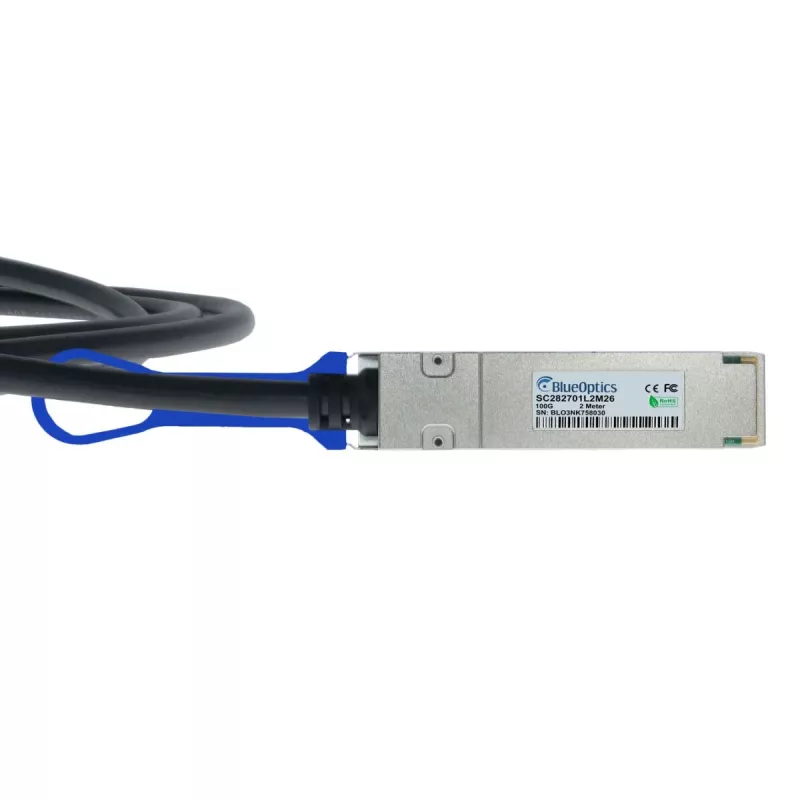

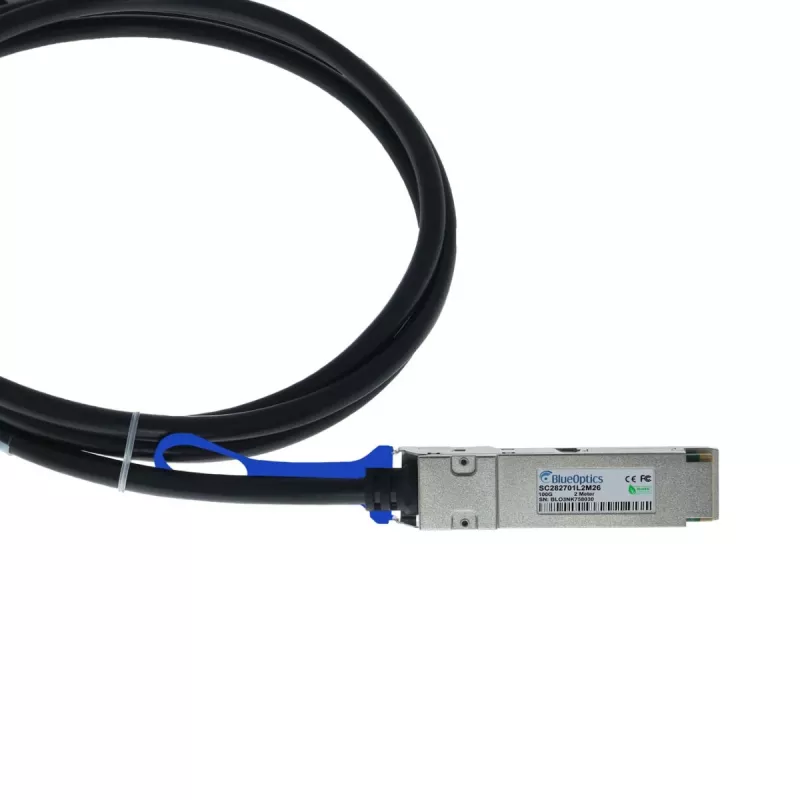

BlueOptics Ruckus E100G-QSFP-4SFP-P-0101 compatibile BlueLAN QSFP28 DAC 1m

The BlueOptics Ruckus E100G-QSFP-4SFP-P-0101 Compatible BlueLAN QSFP28 DAC is a high-performance direct attach copper breakout cable designed for 100 Gigabit Ethernet and InfiniBand EDR applications. It provides a reliable and cost-effective solution for short-range interconnects in data centers and high-performance computing environments.

Advantages

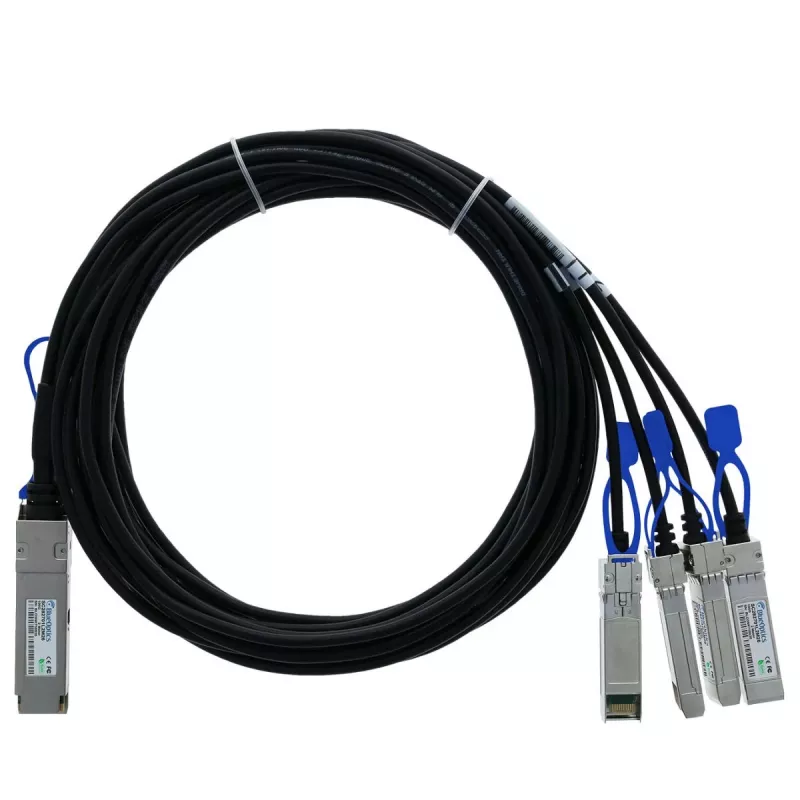

This passive copper cable offers low power consumption (<0.5W) and hot-pluggable functionality, ensuring easy installation and minimal energy usage. The breakout configuration (1x QSFP28 to 4x SFP28) allows for flexible network architecture, enabling a single 100G port to connect to four 25G devices.

Suitable for

• Data center interconnects
• High-performance computing (HPC) clusters
• 100 Gigabit Ethernet networks
• InfiniBand EDR environments
• Ruckus E100G-QSFP-4SFP-P-0101 compatible equipment

Key specifications

• Cable Type: Direct Attach Copper (DAC), Passive
• Connector A: QSFP28
• Connector B: 4x SFP28
• Total Data Rate: 100 Gbps
• Data Rate Per Lane: 25 Gbps
• Cable Length: 1 Meter (3.3 feet)
• Cable Gauge: 30 AWG
• Impedance: 100 Ohm
• Jacket Material: PVC
• Operating Temperature: 0°C to 70°C
• Power Consumption: < 0.5W
• Compliance: IEEE 802.3bj 100GBASE-CR4, SFF-8665, SFF-8402, RoHS

Recommendations

For optimal performance, ensure that both ends of the cable are securely connected to compatible QSFP28 and SFP28 ports. This cable is ideal for short-distance, high-speed connections within racks or between adjacent racks.
