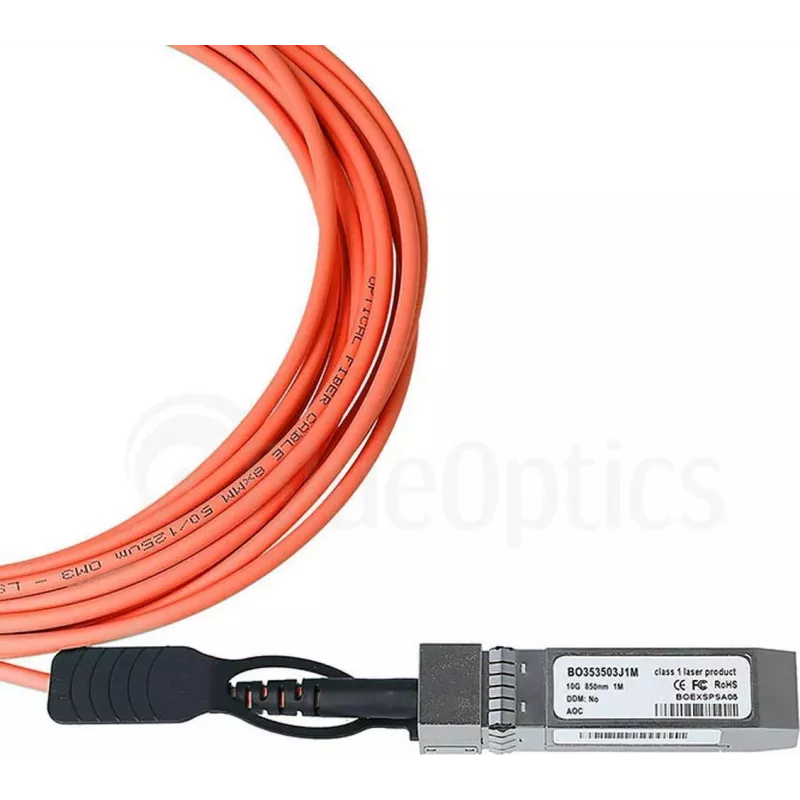

BlueOptics SFP-AOC-10G-10M-RW-BO cavo ottico attivo SFP+ 10G 10m arancione

This BlueOptics active optical cable stands out by integrating the transceivers directly into the cable ends, eliminating the need for separate SFP+ modules and reducing potential points of failure. The 10-meter orange cable delivers a 10 Gbps link for InfiniBand and Ethernet environments where copper would struggle with signal integrity.

Highlights

• 10 Gbps data transfer rate over 10 meters
• SFP+ connectors on both ends with integrated active optical transceivers
• Hot-swappable and compatible with InfiniBand QDR/FDR and 10 Gigabit Ethernet
• Low power consumption, under 1 W per end
• Operating temperature range from 0°C to 70°C

In daily use

The cable is suited for data center interconnects, high-performance computing clusters, and network-attached storage links. Its fiber optic construction avoids electromagnetic interference, and the active design maintains signal quality over the full 10-meter length without external power supplies.

Full specifications

• Cable Type: Active Optical Cable (AOC)
• Network Technology: InfiniBand / Ethernet
• Connector Type (End 1): SFP+
• Connector Type (End 2): SFP+
• Data Transfer Rate: 10 Gbps
• Cable Length: 10 m
• Colour: Orange
• Compatibility: SFP+ ports, InfiniBand QDR/FDR, 10 Gigabit Ethernet
• Cable Material: Fiber Optic
• Transceiver Type: Integrated Active Optical Transceiver
• Hot-Swappable: Yes
• Protocol Support: InfiniBand, Ethernet, Fibre Channel
• Application: Data Center Interconnect, High-Performance Computing (HPC), Network Attached Storage (NAS)
• Power Consumption: < 1 W per end (typical)
• Operating Temperature: 0°C to 70°C

Final note

With its active optical design and SFP+ compatibility, this cable provides a reliable 10G link for demanding network environments.
