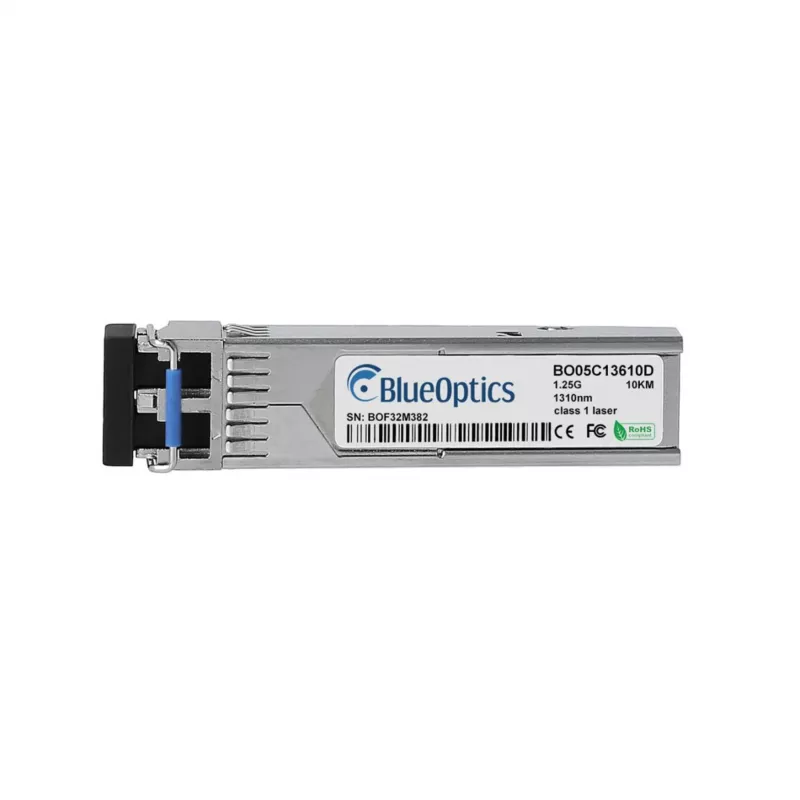

BLUEOPTICS TL-SM311LS-BO modulo ricetrasmettitore di rete fibra ottica 1000 Mbits SFP 1310 nm

The BLUEOPTICS TL-SM311LS-BO is a high-performance SFP transceiver module designed for Gigabit Ethernet applications. It provides reliable fiber optic connectivity over single-mode fiber at a wavelength of 1310 nm, supporting distances up to 10 km. This module is compatible with TP-Link SFP-enabled devices and is hot-swappable for easy installation.

Advantages

Cost-effective solution for extending network reach over single-mode fiber. Hot-swappable design minimizes downtime during maintenance or upgrades. Low power consumption and compact form factor make it ideal for high-density deployments.

Suitable for

• Gigabit Ethernet networks in enterprise, data center, and ISP environments
• Connecting switches, routers, and media converters over single-mode fiber
• Fiber-to-the-x (FTTx) and metropolitan area networks (MAN)

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Wavelength: 1310 nm
• Fiber Type: Single-Mode Fiber (SMF)
• Connector Type: LC Duplex
• Max Distance: 10 km
• Standard: IEEE 802.3z
• Power Supply: 3.3V
• Hot-Pluggable: Yes
• DDM Support: No
• Operating Temperature: 0°C to 70°C
• Storage Temperature: -40°C to 85°C
• Operating Humidity: 10%~90% non-condensing

Recommendations

For optimal performance, use with single-mode fiber patch cables (LC connectors) and ensure compatibility with your TP-Link SFP slot. This module is a direct replacement for TP-Link TL-SM311LS.
