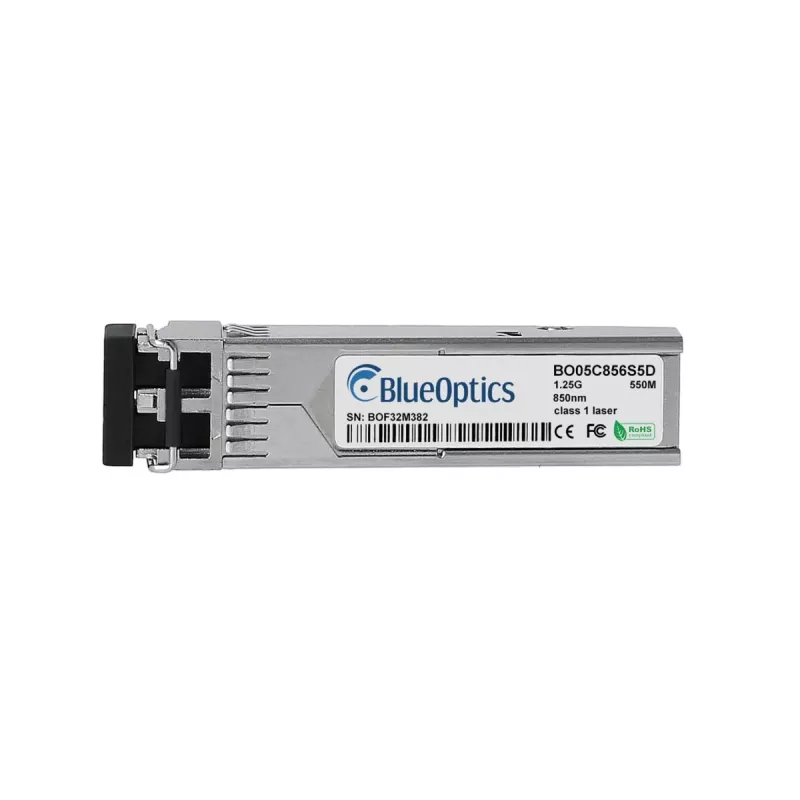

BlueOptics TP-Link SM311LM BO05C856S5D SFP-Ricetrasmettitore, 1000BASE-SX, Fibra Multimodale, 850nm, 550m

The BlueOptics BO05C856S5D SFP transceiver is a high-performance, hot-pluggable module designed for Gigabit Ethernet applications. It is fully compatible with TP-Link SM311LM and MSA-compliant devices, ensuring seamless integration into existing network infrastructures. This transceiver operates at 1.25 Gbps over multimode fiber with a wavelength of 850nm, supporting distances up to 550 meters.

Advantages

This SFP transceiver offers reliable and cost-effective connectivity for short-range Gigabit Ethernet links. Its hot-swappable design allows for easy installation and maintenance without disrupting network operations. The built-in Digital Diagnostic Monitoring (DDM) provides real-time performance monitoring, enabling proactive network management. With low power consumption (<1W) and a wide operating temperature range (0°C to 70°C), it is suitable for various environments.

Suitable for

• Gigabit Ethernet networks requiring 1000BASE-SX connectivity
• Data centers, enterprise LANs, and campus networks
• Connecting switches, routers, and servers over multimode fiber
• Upgrading or expanding existing fiber optic infrastructure

Key specifications

• Transceiver Type: SFP
• Data Rate: 1.25 Gbps
• Ethernet Standard: 1000BASE-SX
• Wavelength: 850 nm
• Fiber Type: Multimode Fiber (MMF)
• Max Transmission Distance: 550 m
• Connector Type: LC Duplex
• Digital Diagnostic Monitoring (DDM): Supported
• Hot-Swappable: Yes
• Laser Type: VCSEL
• Power Supply: 3.3V
• Power Consumption: <1W
• Operating Temperature: 0°C to 70°C
• Compatibility: TP-Link SM311LM and MSA Compliant Devices
• Compliance: MSA Compliant, RoHS Compliant
• Duplex Mode: Full-Duplex

Recommendations

For optimal performance, use with high-quality multimode fiber (OM1/OM2/OM3/OM4) and ensure proper cleaning of fiber connectors. This transceiver is an ideal replacement or upgrade for TP-Link SM311LM modules.
