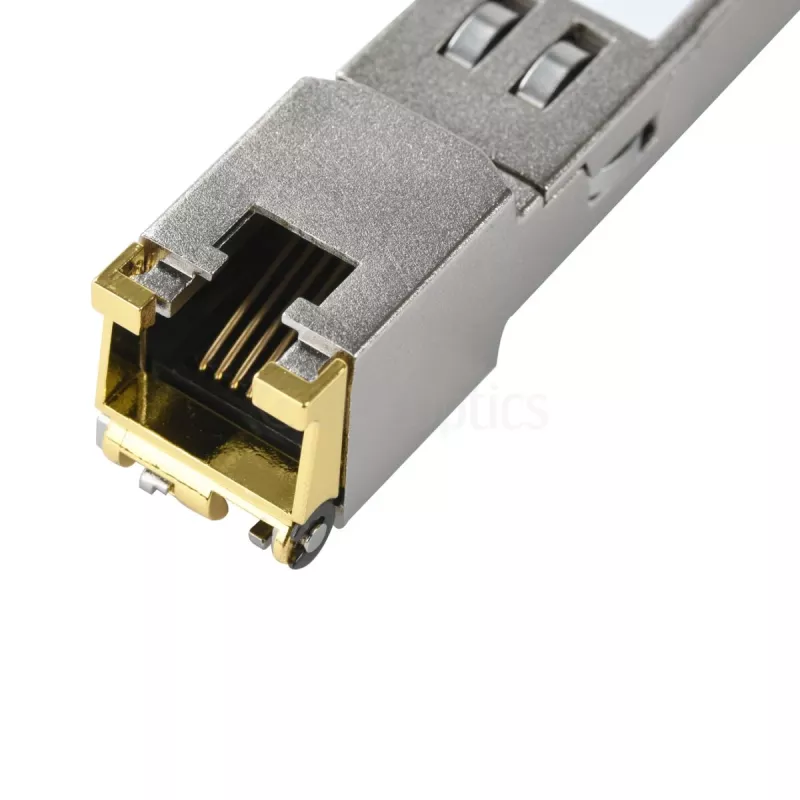

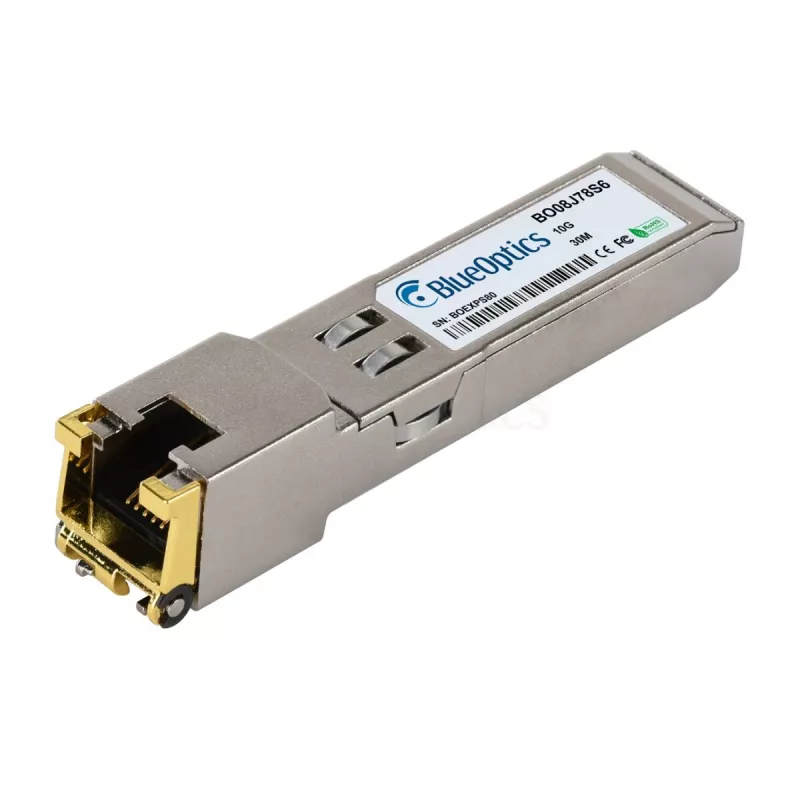

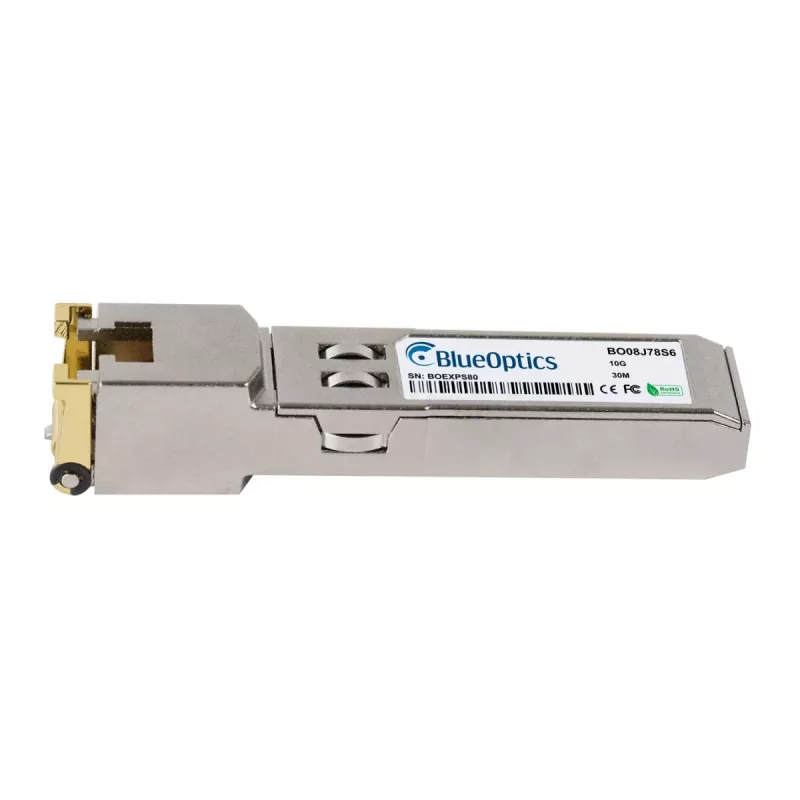

BlueOptics TP-Link SM5310-T Compatibile SFP+ Ricetrasmettitore, Rame RJ45, 10GBASE-T, 30m

The BlueOptics BO08J78S6 SFP+ transceiver is a high-performance, cost-effective solution designed for 10 Gigabit Ethernet over copper cabling. It is fully compatible with TP-Link SM5310-T switches and other SFP+ ports, delivering reliable 10GBASE-T connectivity up to 30 meters over Cat.6a or Cat.7 twisted pair cable. This hot-pluggable module features low power consumption (<2.5W) and supports Digital Diagnostic Monitoring (DDM) for real-time performance monitoring.

Advantages

Optimized for short-reach, high-speed copper links, this transceiver eliminates the need for fiber optic cabling in data center and enterprise networks. Its auto-negotiation capability ensures seamless integration with existing 10GBASE-T infrastructure, while the rugged RJ45 connector provides secure, tool-free installation.

Suitable for

• 10 Gigabit Ethernet connections in server rooms, data centers, and enterprise LANs
• Upgrading existing copper-based networks to 10G speeds
• TP-Link SM5310-T switches and compatible SFP+ equipment

Key specifications

• Transceiver Type: SFP+
• Data Rate: 10 Gbps
• Interface Standard: 10GBASE-T
• Connector Type: RJ45
• Media Type: Copper (Twisted Pair)
• Max Reach: 30 meters
• Power Consumption: <2.5W
• Operating Temperature: 0°C to 70°C
• Hot-Pluggable: Yes
• DDM Support: Yes
• Standards: IEEE 802.3an, SFF-8431

Recommendations

For optimal performance, use with Cat.6a or Cat.7 cabling. Ensure your switch or NIC supports 10GBASE-T and SFP+ form factor. This module is a direct replacement for the TP-Link SM5310-T original transceiver.
