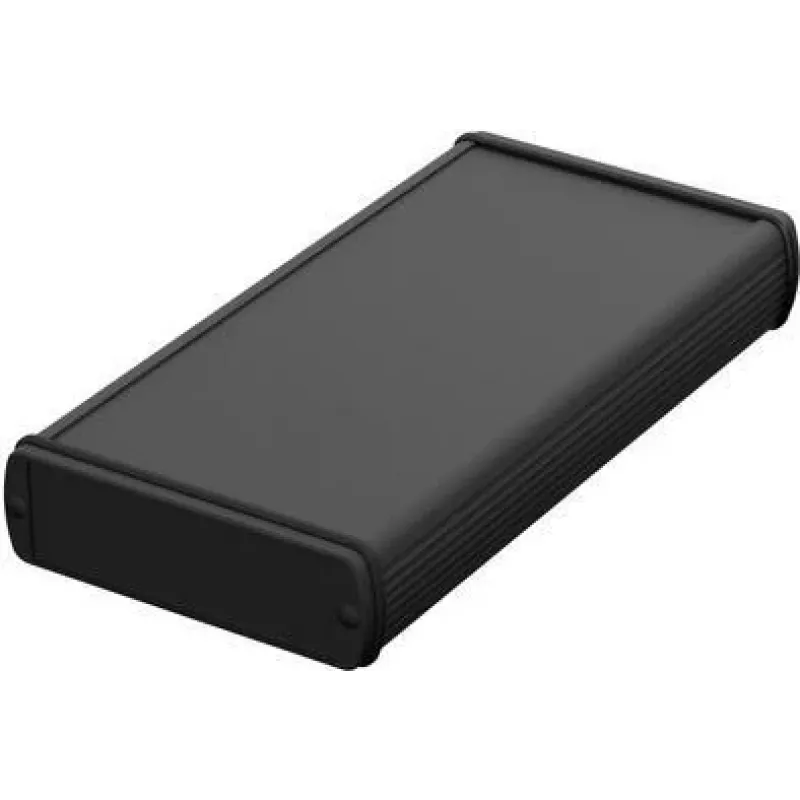

Bopla ABPH 1000-200 custodia universale 200 x 106 x 32 mm alluminio nero 84106200.H

Engineers and technicians building industrial electronics will appreciate the Bopla ABPH 1000-200 universal enclosure. Its aluminium body and powder-coated black finish provide a robust housing for control units, sensors, and interface modules in demanding environments.

Key specifications

• External dimensions: 200 x 106 x 32 mm (L x W x H)
• Material: Aluminium (AlMgSi 0.5)
• Colour: Black (RAL 9005)
• Protection class: IP65
• Lid fastening: Stainless steel screws
• Surface finish: Powder-coated
• Operating temperature: -40 to +100 °C
• Mounting type: Surface mount
• Series: ABPH 1000
• Number of components: 2 (base, lid)
• RoHS compliant: Yes

Why choose it

The ABPH 1000-200 combines a lightweight yet sturdy aluminium construction with a sleek black powder coating. Its IP65 rating ensures protection against dust and water jets, making it suitable for both indoor and outdoor installations.

Ideal use cases

• Industrial control panels
• Outdoor sensor housings
• Interface and junction boxes
• Custom electronics projects

Good to know

The enclosure consists of a base and lid, secured with stainless steel screws for corrosion resistance. The wide operating temperature range allows use in harsh climates.
