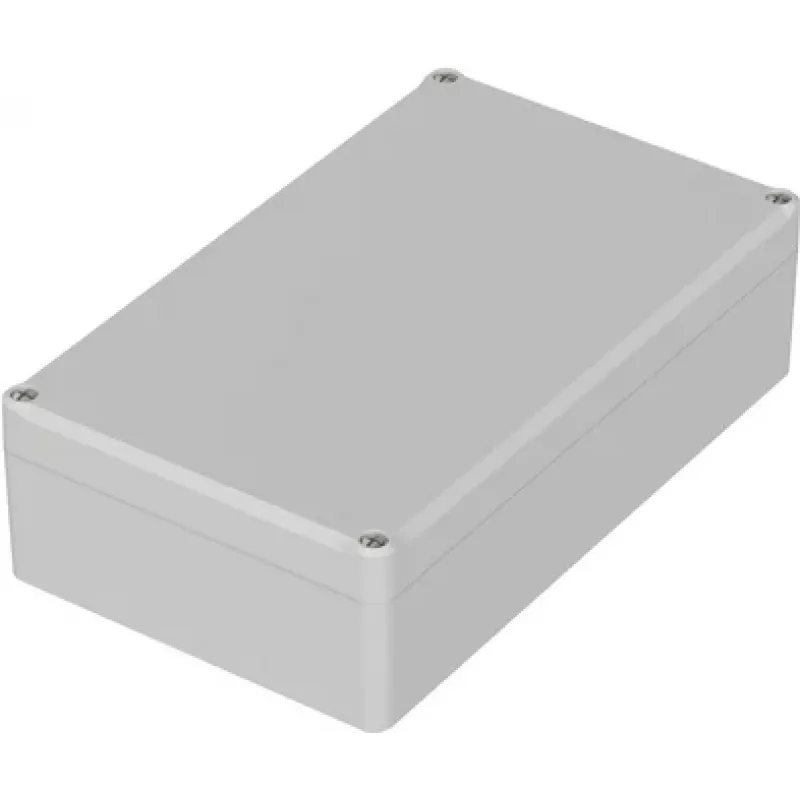

Bopla custodia universale 200 x 120 x 57 ABS grigio chiaro (RAL 7035) ET 214 63214300

Electronics projects often stall when a suitable housing cannot be found. The Bopla ET 214 solves this by offering a robust, ready-to-use enclosure for PCBs, control systems, and measurement devices.

Who is it for

Engineers, technicians, and hobbyists who need a dependable enclosure for custom electronics. It suits prototyping and small production runs where protection and easy access are essential.

Main features

• Made from ABS plastic, light grey (RAL 7035), for durability and a clean appearance.
• External dimensions: 200 mm length, 120 mm width, 57 mm height.
• Screw-on lid with 4 screws for secure closure and convenient access.
• Integrated bosses inside for mounting PCBs or plates.
• Operating temperature range: -40 to +80 °C.
• Impact resistance: IK07.
• Flammability rating: UL 94 HB.

Specifications

• Material: ABS
• Colour: Light Grey (RAL 7035)
• External dimensions: 200 x 120 x 57 mm
• Protection class: IP40
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Flammability rating: UL 94 HB
• Lid fastening: Screw-on, 4 screws
• Internal mounting: Integrated bosses
• Series: ET

Tips

Check the internal dimensions against your PCB before ordering. For outdoor use, consider additional sealing or a higher IP-rated enclosure.
