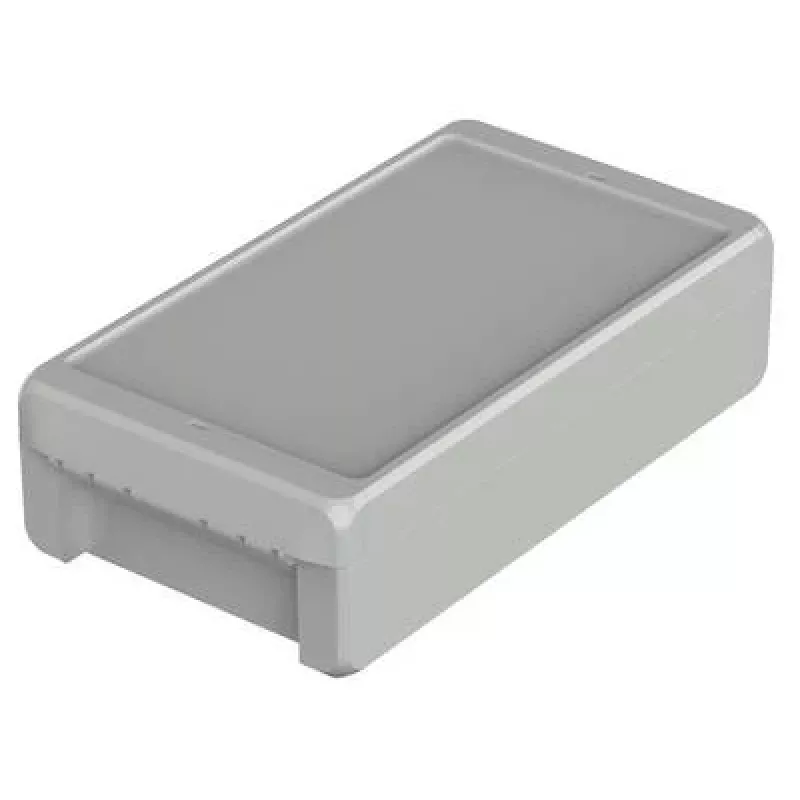

BOPLA custodia a parete, custodia per installazione, ABS grigio chiaro (RAL 7035), 125 x 231 x 60 mm 96035225

Protecting electrical and electronic components in industrial or outdoor environments requires a robust and reliable housing. The BOPLA wall-mount enclosure in light grey ABS offers a secure and durable solution for installations where protection from dust and moisture is essential.

Who is it for

This enclosure is ideal for electricians, panel builders, and system integrators who need a dependable housing for control systems, junction boxes, or small electronic assemblies. It suits applications in machinery, building automation, and industrial control where a wall-mounted, sealed enclosure is required.

Main features

• Made from ABS (Acrylonitrile Butadiene Styrene) for good impact resistance and chemical stability.
• Light grey colour (RAL 7035) blends well with industrial equipment.
• External dimensions: 125 mm width, 231 mm length, 60 mm height.
• Usable internal dimensions: 118 mm width, 224 mm length, 54 mm height, providing ample space for components.
• Screw-on lid with 4 stainless steel screws ensures a secure closure.
• Polyurethane gasket provides a reliable seal against dust and moisture.
• Operating temperature range: -40°C to +70°C, suitable for harsh environments.
• Flammability rating UL94 V-0 for enhanced fire safety.
• Impact resistance IK07, offering protection against mechanical impacts.
• Good chemical resistance against oils, greases, weak acids, and alkalis.

Specifications

• Material: ABS
• Colour: Light Grey (RAL 7035)
• External dimensions (W x L x H): 125 x 231 x 60 mm
• Internal dimensions (W x L x H): 118 x 224 x 54 mm
• Lid fastening: 4 stainless steel screws
• Gasket material: Polyurethane (PU)
• Operating temperature: -40°C to +70°C
• Flammability rating: UL94 V-0
• Impact resistance: IK07

Tips

When installing, ensure the mounting surface is flat and stable. Use appropriate cable glands to maintain the enclosure's sealing integrity. Avoid prolonged exposure to direct sunlight as ABS has limited UV resistance; consider painting or using a UV-stable cover for outdoor applications.
