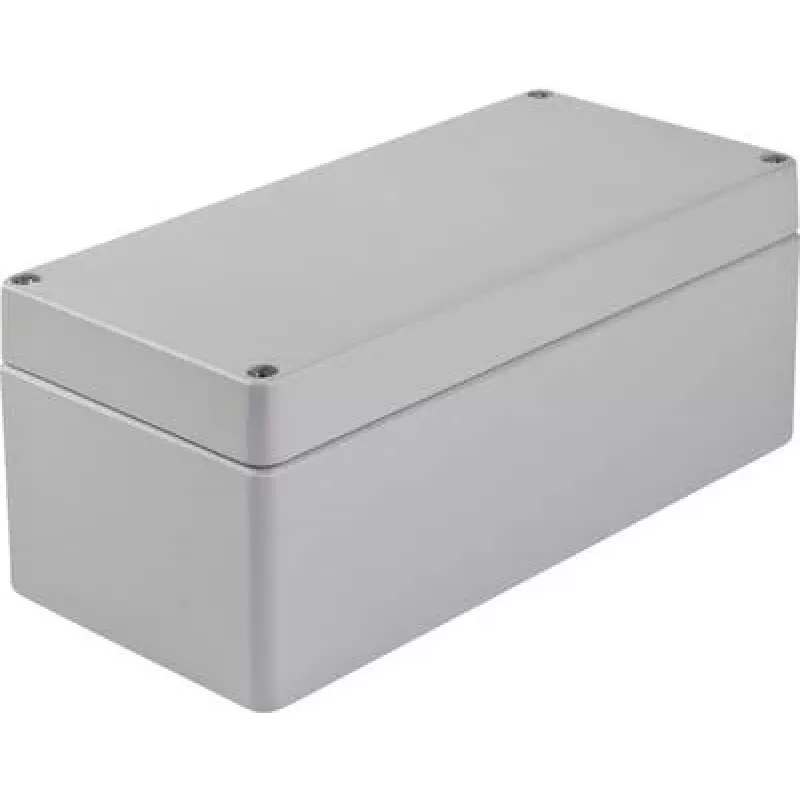

Bopla custodia universale 200 x 100 x 80 mm alluminio grigio argento (RAL 7001) A 114 01114000.H

Universal enclosure made of aluminium with powder-coated silver-grey finish (RAL 7001). The A 114 housing offers a spacious interior for mounting DIN rails or mounting plates, protected by a neoprene gasket and stainless steel lid screws.

Advantages

Robust aluminium construction with IP66 protection, suitable for demanding industrial environments. The powder coating provides corrosion resistance and a clean appearance. Four stainless steel screws secure the lid, ensuring reliable sealing.

Suitable for

• Electrical and electronic installations
• Industrial control systems
• Outdoor or harsh environment applications

Key specifications

• External dimensions: 200 x 100 x 80 mm
• Material: Aluminium
• Colour: Silver-grey (RAL 7001)
• Protection class: IP66
• Lid fastening: 4 stainless steel screws
• Gasket material: Neoprene
• Wall thickness: 3 mm
• Operating temperature: -40 °C to +100 °C
• Internal mounting: bosses for DIN rails or mounting plates
• Surface finish: Powder coated

Recommendations

Ideal for custom electronic projects, junction boxes, or control enclosures where durability and weather resistance are required.
