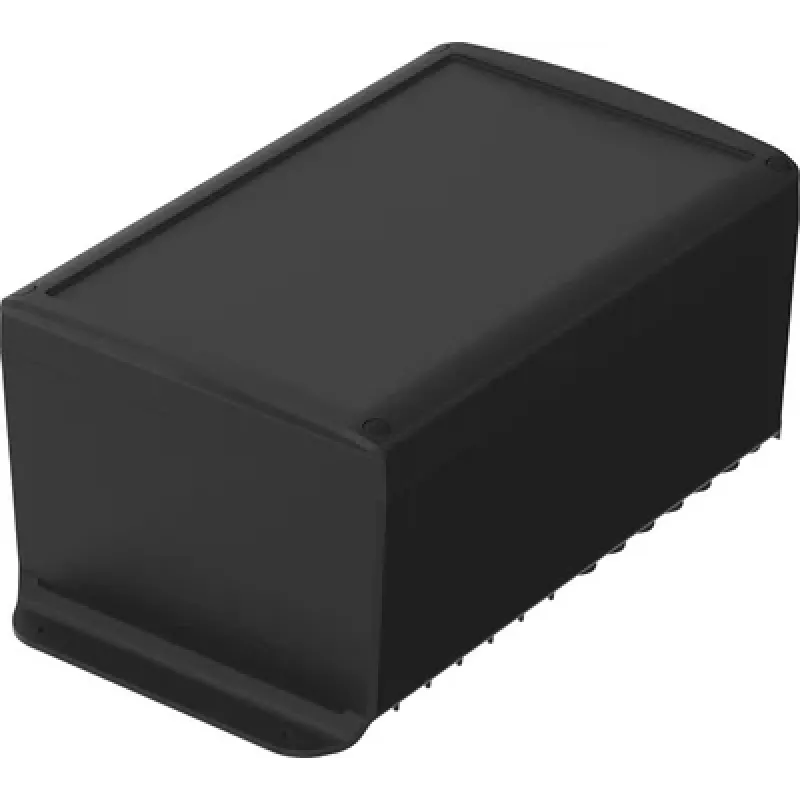

Bopla BoVersa 48198685.HMT3 custodia industriale 323 x 185 x 139 mm alluminio nero

In automated production lines, control cabinets, and outdoor installations, engineers need enclosures that protect electronics from dust, moisture, and mechanical impact. The Bopla BoVersa 48198685.HMT3 industrial enclosure provides a robust die-cast aluminium housing with a recessed lid for membrane keypads and internal mounting bosses for secure component placement.

Key specifications

• External dimensions: 323 x 185 x 139 mm (L x W x H)
• Material: Die-cast aluminium (AlSi 12)
• Colour: Black (RAL 9005)
• Protection class: IP65
• Temperature range: -40 °C to +90 °C
• Lid fastening: Stainless steel captive screws
• Gasket material: Silicone, flammability rating UL 94 V-0
• Mounting: Wall mounting channels
• Included quantity: 1 piece

Why choose it

The BoVersa series is designed for universal industrial use, offering a recessed lid that accommodates membrane keypads and internal bosses for easy assembly. Its die-cast aluminium construction provides durability, while the silicone gasket ensures a reliable seal against dust and water ingress.

Ideal use cases

• Housing for control electronics in machinery
• Outdoor sensor enclosures
• Junction boxes for industrial automation
• Custom operator interfaces with membrane keypads

Good to know

The enclosure is supplied as a single unit. Optional EMC shielding is available with a conductive gasket (not included).
