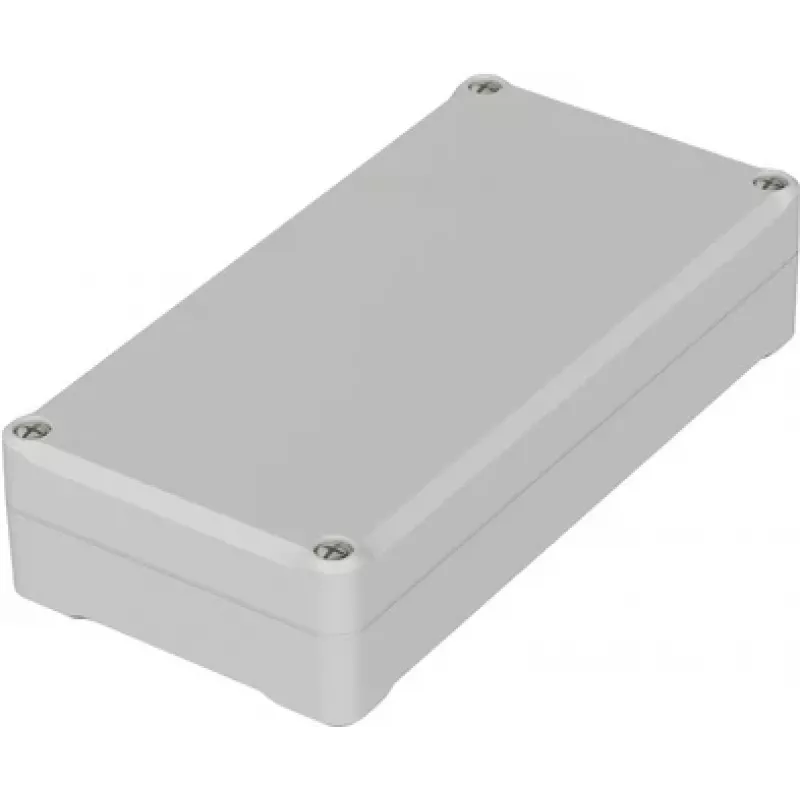

Bopla custodia universale 160 x 80 x 37 mm ABS grigio chiaro RAL 7035 ET 229 63229000

Electronics projects need a reliable housing that protects components while offering easy access for assembly and maintenance. The Bopla Universal Enclosure ET 229 provides a robust ABS shell in light grey (RAL 7035), sized 160 x 80 x 37 mm, suitable for a wide range of electronic and electrical applications.

Who is it for

This enclosure is ideal for engineers, hobbyists, and technicians who require a durable, flame-retardant housing for PCBs, sensors, or control modules. Its screw-on lid and internal mounting bosses simplify installation and servicing.

Main features

• Universal enclosure with external dimensions 160 mm (L) x 80 mm (W) x 37 mm (H)
• Material: ABS (Acrylonitrile Butadiene Styrene), light grey RAL 7035
• Flammability rating UL 94 V-0 for enhanced fire safety
• Impact resistance IK07
• Operating temperature range: -40 °C to +80 °C
• Screw-on lid for secure closure and easy access
• Internal PCB mounting bosses for straightforward board fixation
• Series: ET 229

Specifications

• Product type: Universal enclosure
• External dimensions: 160 x 80 x 37 mm
• Material: ABS
• Colour: Light grey (RAL 7035)
• Protection class: IP40
• Flammability rating: UL 94 V-0
• Impact resistance: IK07
• Operating temperature: -40 to +80 °C
• Lid fastening: Screw-on
• Internal mounting: PCB mounting bosses
• Manufacturer part number: 63229000

Tips

When selecting an enclosure, consider the internal clearance needed for your PCB and connectors. The ET 229 offers ample space for many standard boards, and the ABS material can be machined for custom cutouts if required.
