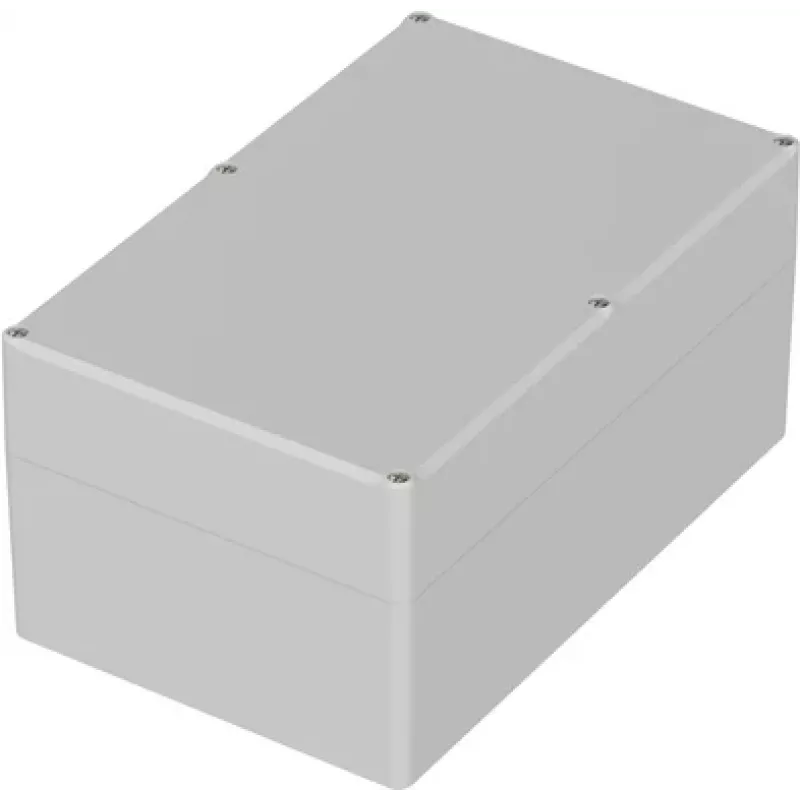

Bopla custodia universale 250 x 160 x 122 ABS grigio chiaro (RAL 7035) ET 241 63241000

This Bopla universal enclosure offers robust protection with an IP65 rating, making it suitable for demanding industrial environments. Its ABS construction in light grey (RAL 7035) provides a balance of durability and chemical resistance.

Overview

The Bopla ET 241 is a universal enclosure designed for housing electronic and electrical components. With external dimensions of 250 x 160 x 122 mm, it provides ample space for PCBs and other devices. The enclosure is made from ABS, a material known for its impact resistance and good chemical resistance against aqueous acids, alkalis, salts, and oils. It features a light grey color (RAL 7035) and a polyurethane gasket to ensure a tight seal. The lid is secured with four stainless steel screws, and integrated screw channels outside the sealed area allow for wall mounting without compromising the IP65 protection.

What stands out

• IP65 protection against dust and water jets
• ABS material with UL 94 V-0 flammability rating
• Integrated wall mounting channels outside the sealed area
• Polyurethane gasket for reliable sealing
• Operating temperature range from -40°C to +80°C

Technical details

• External dimensions: 250 x 160 x 122 mm
• Material: ABS (Acrylonitrile Butadiene Styrene)
• Colour: Light grey (RAL 7035)
• Protection class: IP65
• Impact resistance: IK07
• Flammability rating: UL 94 V-0
• Gasket material: Polyurethane (PUR)
• Lid fastening: 4x stainless steel screws
• Internal mounting: Mounting bosses for PCBs/components
• Wall mounting: Integrated screw channels outside sealed area
• Chemical resistance: Good against aqueous acids, alkalis, salts, oils
• UV stability: Limited
• RoHS compliant: Yes

Our verdict

A reliable and versatile enclosure for industrial electronics, offering solid protection and easy installation.
