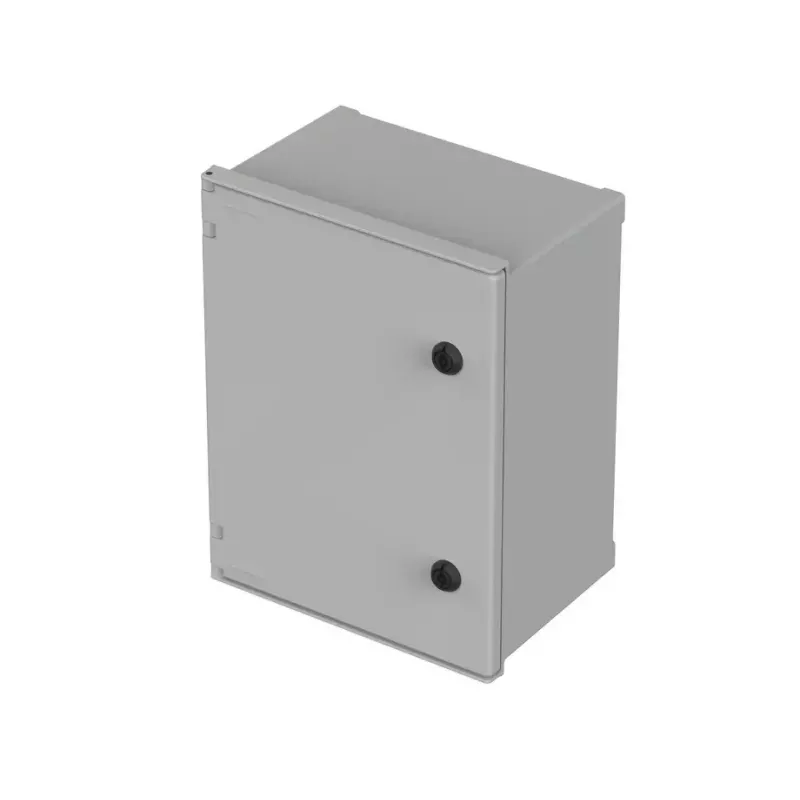

Bopla PS 432 custodia a parete 400 x 300 x 200 mm grigio chiaro (RAL 7035) 42143200

Protect sensitive electronics in harsh industrial environments with the Bopla PS 432 wall-mount enclosure. This robust housing offers a secure, IP65-rated seal against dust and water, ensuring reliable operation of control systems, measurement devices, and communication equipment.

Who is it for

Engineers, system integrators, and maintenance teams who need a durable, weatherproof enclosure for wall-mounted electronics in factories, outdoor installations, or washdown areas.

Main features

• Wall-mounted design with integrated mounting points for easy installation
• ABS construction provides impact resistance (IK07) and UV stability
• Light grey (RAL 7035) opaque lid with six captive stainless steel screws
• Polyurethane gasket ensures reliable sealing
• Temperature range from -40 °C to +80 °C for extreme conditions

Specifications

• External dimensions (H x W x D): 400 x 300 x 200 mm
• Internal dimensions (H x W x D): 388 x 288 x 188 mm
• Material: ABS (UL 94 HB flammability rating)
• Protection class: IP65
• Impact resistance: IK07
• Wall thickness: approx. 3.5 mm
• Lid screws: 6, stainless steel, captive
• Gasket material: Polyurethane (PUR)
• Resistance: UV resistant, chemical resistant

Tips

Pair with appropriate cable glands to maintain the IP65 rating when routing wires. For outdoor use, ensure the enclosure is mounted vertically to prevent water pooling on the lid.
