Bosch 0 601 675 001 sega circolare 16,5 cm 6250 giri/min 1400 W

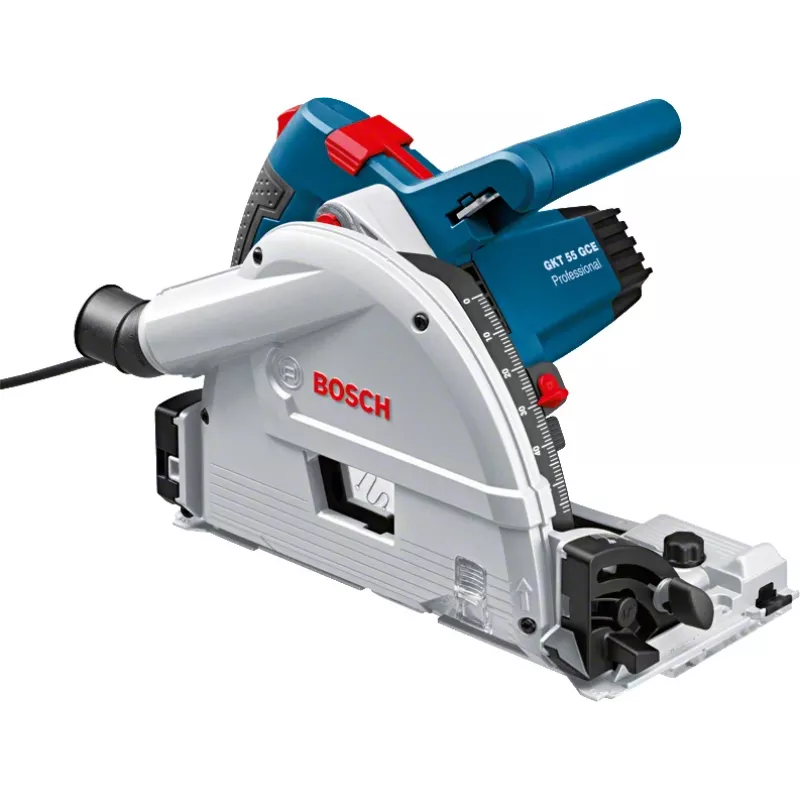

The Portable Circular Saw Bosch 0 601 675 001 delivers precision and power for clean, accurate cuts. It features a 165 mm saw blade, a potent 1400 W motor with Constant Electronic for steady performance, and an efficient dust extraction system combined with a noise-reduced blade for more comfortable indoor work. The saw accepts fine adjustment of cutting angle and depth and is suitable for a range of materials including wood, panel materials, aluminium and acrylic glass.

Advantages

High-quality machine components, a precision saw blade and a matching guide rail system ensure clean, precise cuts. The 1400 W motor with adjustable speed and Constant Electronic maintains cutting power under load. Efficient dust extraction and a noise-reduced blade reduce dust exposure and noise during indoor use. Exact angle and depth settings provide repeatable, accurate results.

Suitable for

• Crosscuts and rip cuts in wood and panels
• Cutting aluminium sections and profiles
• Trimming and cutting acrylic glass sheets

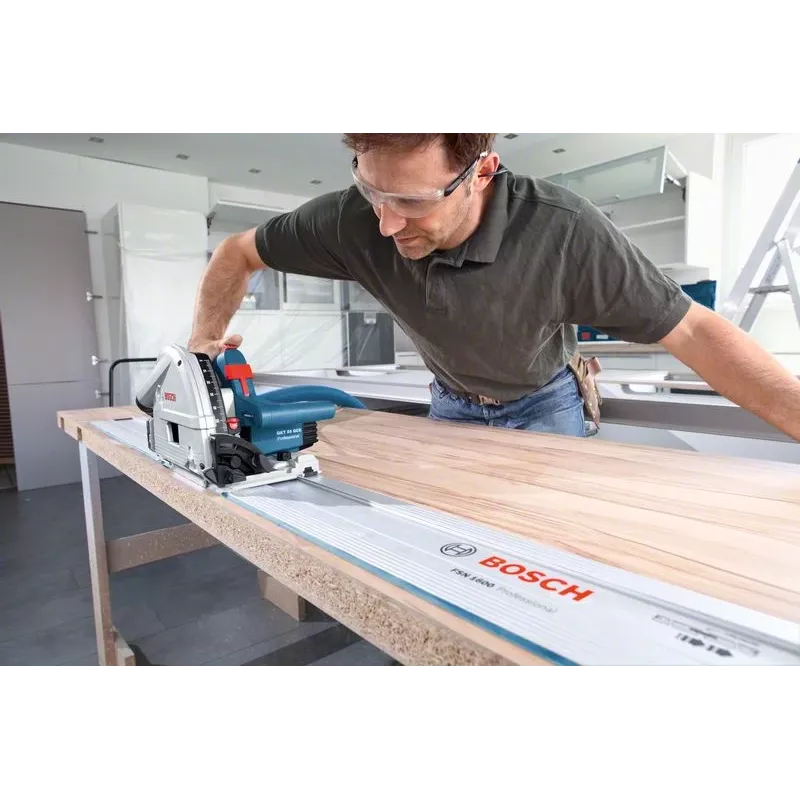

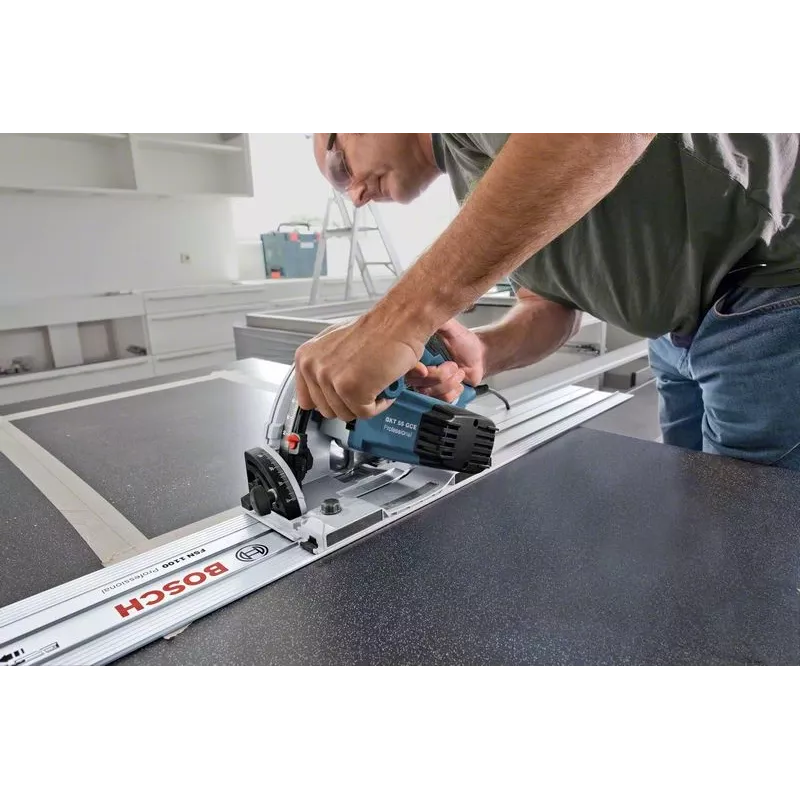

• Use with guide rails for straight, precise cuts

Key specifications

• Blade diameter: 165 mm
• Motor power: 1400 W
• No-load speed: up to 6250 RPM
• Cutting depth at 90°: 57 mm
• Dimensions (W×H): 310 × 240 mm
• Weight: 4.7 kg
• Brand / MPN / EAN: Bosch / 0.601.675.001 / 3165140607759

How to use

Set the desired cutting depth and angle using the adjustment controls, secure the workpiece, and position the saw on the guide rail if required. Start the saw and allow it to reach operating speed before making the cut. Feed the saw steadily through the material at a controlled pace; if cutting metal or acrylic, use the appropriate blade and speed setting. After cutting, wait for the blade to stop completely before setting the tool down and disconnecting power if necessary.

Recommendations

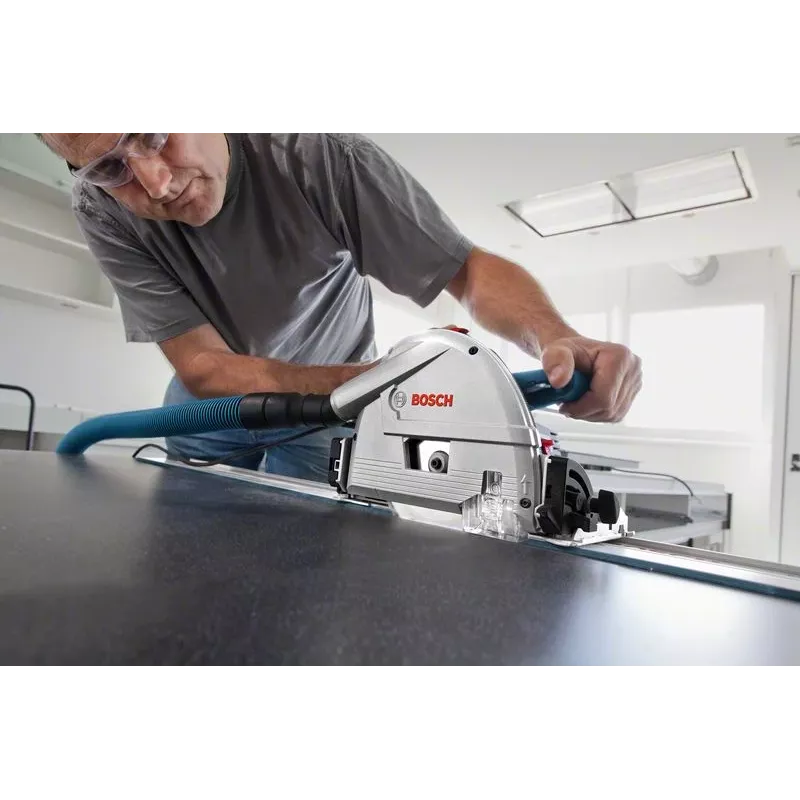

Use dust extraction and appropriate personal protective equipment (eye and hearing protection, gloves). For best results on long straight cuts, use a matching guide rail and a blade suitable for the material being cut. Allow the motor to reach speed before cutting and avoid forcing the saw through the material to prolong blade and motor life.
