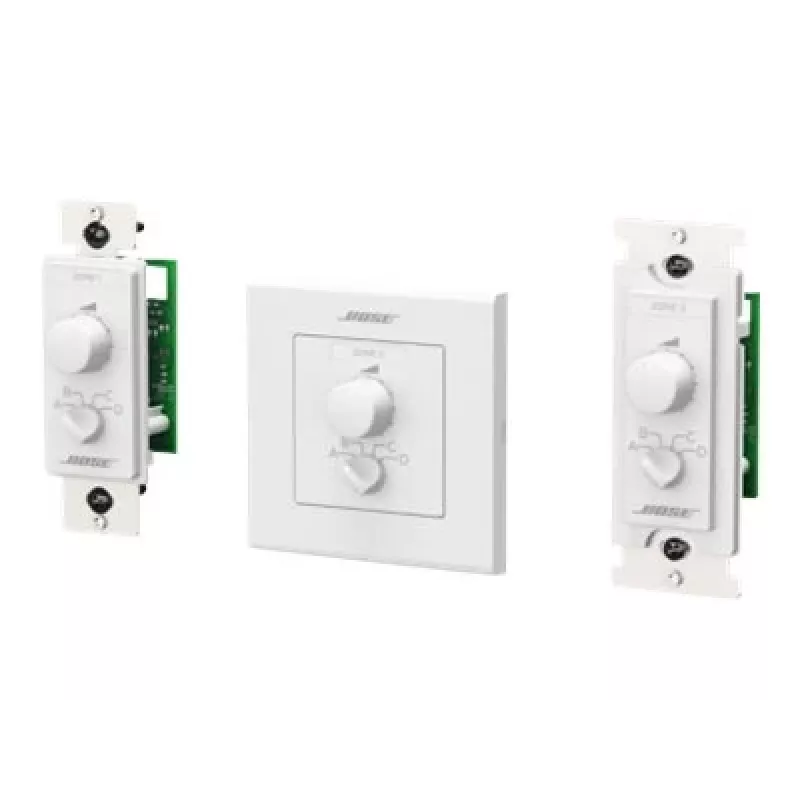

Bose ControlCenter CC-3 regolatore di zona a parete per selezione sorgente e controllo del volume

The Bose ControlCenter CC-3 is a wall-mounted zone controller designed for seamless source selection and volume control in commercial audio systems. It provides intuitive control over up to four audio sources (A, B, C, D) and is compatible with Bose ControlSpace ESP processors, FreeSpace IZA/IZA integrated zone amplifiers, and FreeSpace DXA 2120 digital mixer amplifiers. The CC-3 is powered directly by the host device and connects via standard CAT 5 (or higher) UTP cable using an RJ-45 interface, supporting cable runs up to 600 m (2000 ft) with ControlSpace processors and 152 m (500 ft) with FreeSpace systems.

Advantages

Simplifies audio zone management with a clean, wall-mounted design. The rotary encoder provides precise volume adjustment, while dedicated push buttons allow quick source switching. LED indicators clearly show the active source, enhancing user experience in commercial environments like restaurants, retail stores, and conference rooms.

Suitable for

• Commercial audio installations requiring remote zone control
• Integration with Bose ControlSpace and FreeSpace systems
• Applications needing up to four audio source selection
• Wall-mounted control in single-gang electrical boxes

Key specifications

• Product Type: Wall-mounted zone controller
• Control Functions: Volume control, Source selection
• Number of Audio Sources: 4 (A, B, C, D)
• Connectivity: RJ-45 (for CAT 5 cable)
• Cable Requirement: Standard CAT 5 (or higher) UTP cable
• Max Cable Length (ControlSpace): 600 m (2000 ft)
• Max Cable Length (FreeSpace): 152 m (500 ft)
• Power Supply: Powered by host device
• Mounting: Standard single-gang electrical box
• Interface: Rotary encoder for volume, Push buttons for source selection
• Indicators: LEDs for active source selection
• Operating Temperature: 0°C to 50°C (32°F to 122°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Humidity: 95% relative humidity, non-condensing
• Material: High-impact plastic

Recommendations

For optimal performance, use with Bose ControlSpace ESP processors or FreeSpace amplifiers. Ensure CAT 5 cable length does not exceed specified limits. The CC-3 is designed for indoor use only and should be installed in a standard single-gang electrical box.
