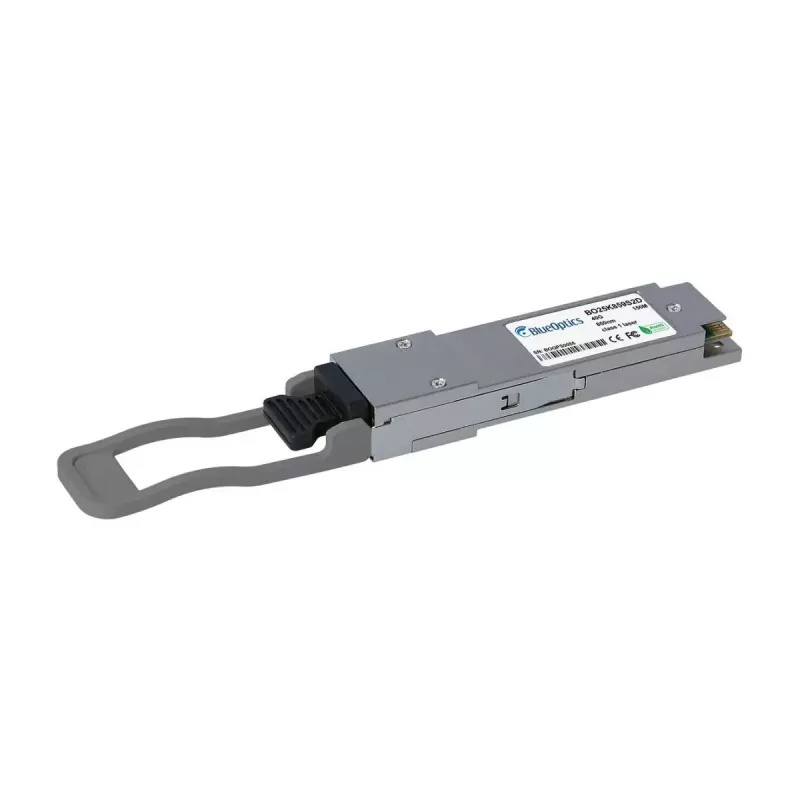

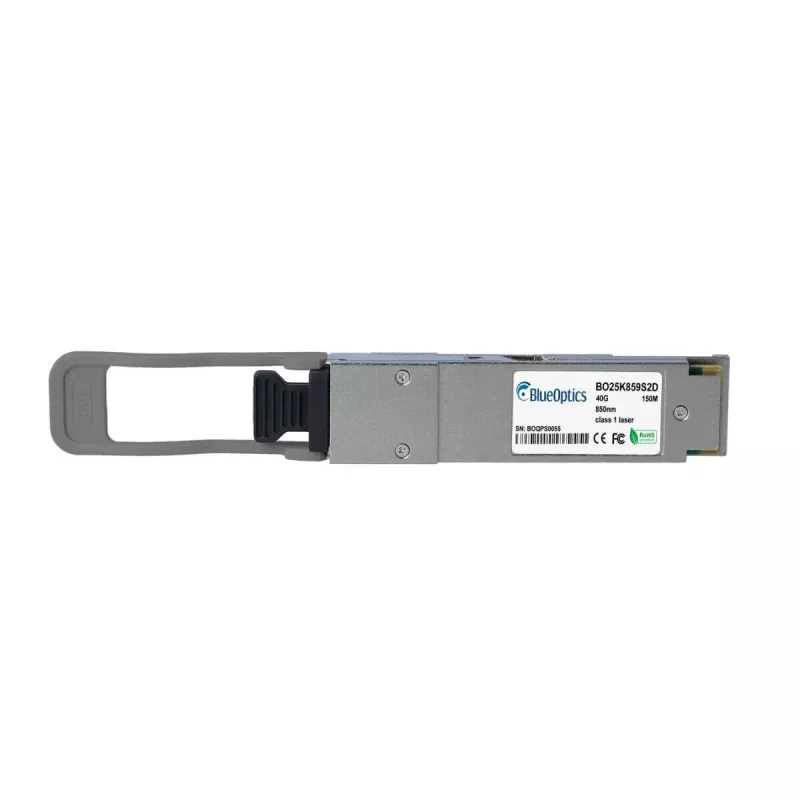

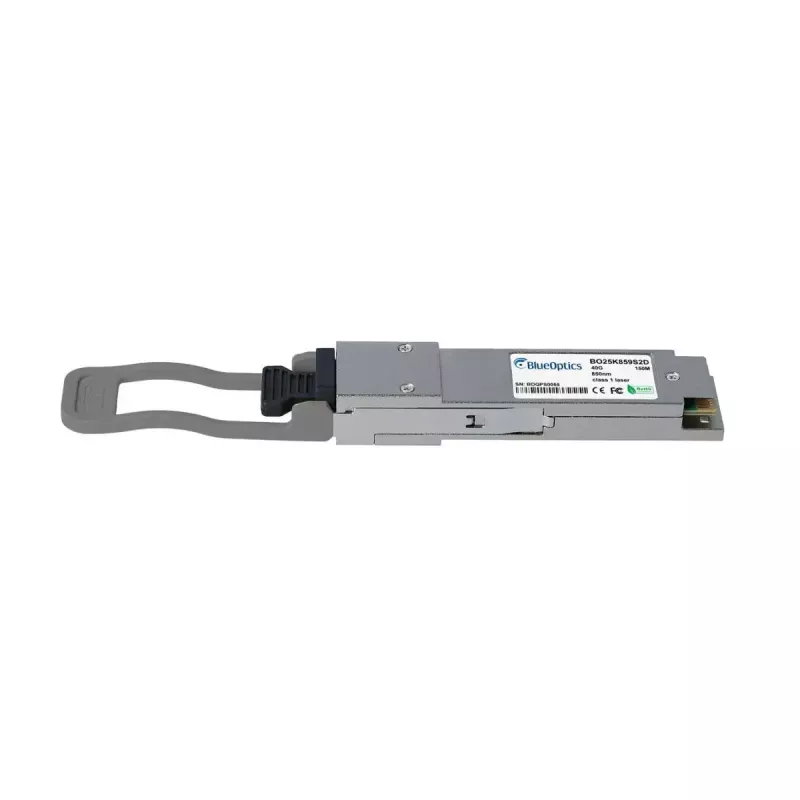

Modulo ricetrasmettitore in fibra ottica BlueOptics 40G-QSFP-SR-MM850-BIDI-BO 40000 Mbit/s

The BlueOptics 40G-QSFP-SR-MM850-BIDI-BO is a fiber optic transceiver module designed for high-speed data transfer in modern network infrastructures. With a QSFP interface and support for a maximum data rate of 40000 Mbit/s, this module is intended for short-range multimode fiber links up to 100 m and uses LC connectors. The stainless steel housing provides mechanical stability and compatibility with standard QSFP ports, and the module is compatible with Ruijie Networks equipment.

Advantages

This transceiver offers a high aggregate throughput of 40 Gbit/s suitable for dense networking environments and data center uplinks. Its bidirectional short-reach design reduces fiber requirements by enabling simultaneous transmit and receive signals over a single multimode strand. The LC connector type ensures wide compatibility with existing patch panels and fiber patch cords, while the stainless steel casing delivers durable mechanical protection and reliable insertion/removal in QSFP slots.

Suitable for

• Data center top-of-rack and spine aggregation
• High-speed server interconnects and switch uplinks
• Campus and enterprise LAN backbone links up to 100 m over multimode fiber
• Upgrading existing multimode fiber infrastructure to 40 Gbit/s links

Key specifications

• Maximum data transfer rate: 40000 Mbit/s
• Maximum transfer distance over multimode fiber: 100 m
• Interface: QSFP (Quad Small Form-factor Pluggable)
• Connector type: LC
• Optical wavelength / type: multimode 850 nm (short reach, bidirectional)
• Housing material / colour: stainless steel

How to use

Install the BlueOptics QSFP module into a compatible QSFP slot on a switch or server, ensuring the module is aligned and fully seated. Connect LC-terminated multimode fiber patch cords to the module’s LC ports, observing proper polarity for bidirectional links. Verify link status via the host device’s LED indicators or management interface and monitor link stability and throughput after installation. Handle the transceiver with ESD precautions and keep protective dust caps on connectors when not in use.

Recommendations

Use OM3/OM4 multimode fiber for optimal performance at 40 Gbit/s over distances up to 100 m, and verify compatibility with Ruijie Networks equipment if required. Maintain clean connector endfaces and follow standard fiber best practices to avoid signal degradation.
