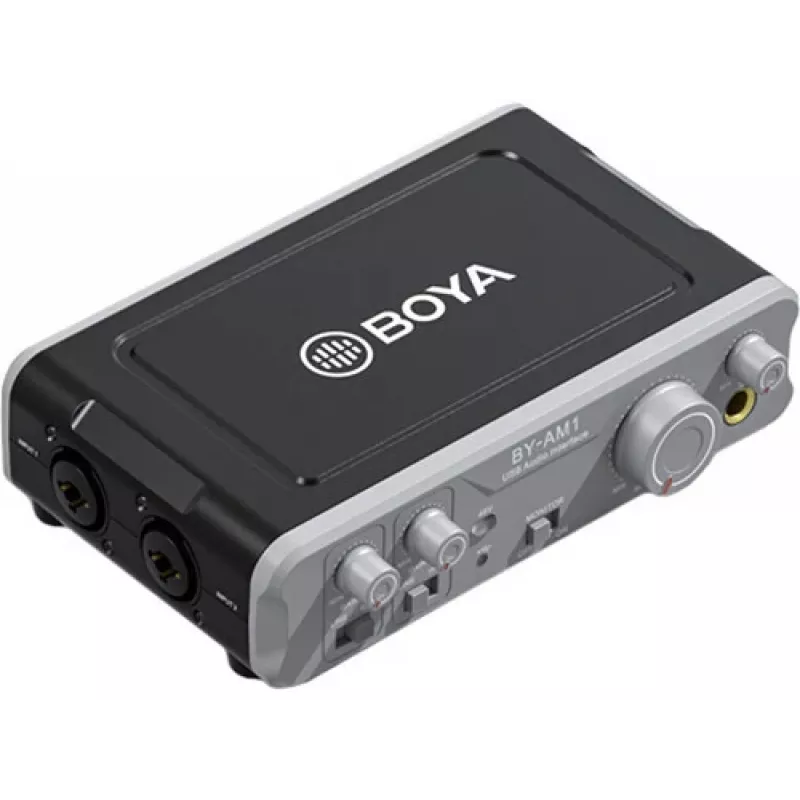

BOYA BY-AM1 interfaccia audio USB-C a 2 canali con ingressi XLR/TRS, alimentazione phantom +48V e direct monitoring

The BOYA BY-AM1 is a compact 2-channel audio interface that delivers pristine sound capture for musicians, podcasters, and content creators. Its standout feature is the dual XLR/TRS combo inputs with switchable +48V phantom power, enabling you to connect condenser microphones, dynamic mics, or instruments with ease. Powered entirely via USB-C, this interface offers high-resolution 24-bit/48 kHz recording and low-latency direct monitoring, making it a reliable companion for studio sessions and mobile recording alike.

Advantages

The BY-AM1 combines professional-grade connectivity in a rugged aluminum alloy body that withstands the rigors of travel and daily use. Individual gain controls for each channel give you precise level adjustment, while the dedicated headphone output with volume knob ensures accurate monitoring without latency. The interface is truly plug-and-play: no drivers required on Windows, macOS, Android, or iOS (with appropriate adapters), so you can start recording immediately. Its versatile mounting options—a 1/4"-20 thread and cold shoe mount—allow easy attachment to tripods, booms, or camera rigs, expanding its usability beyond the desktop.

Suitable for

• Home studio musicians recording vocals and instruments
• Podcasters needing multiple microphone inputs
• Mobile journalists and videographers requiring on-the-go audio capture
• Content creators streaming or recording directly to smartphones or tablets
• Field recordists who value durable, bus-powered equipment

Key specifications

• 2 x XLR/TRS combo inputs with switchable +48V phantom power per channel
• USB-C connection (USB 2.0) for power and data, bus-powered operation
• Up to 24-bit/48 kHz resolution with frequency response 20 Hz – 20 kHz
• Signal-to-noise ratio >80 dB for clean recordings
• 3.5mm headphone output with dedicated volume control for direct monitoring
• Individual gain knobs for each input channel
• Compatible with Windows, macOS, Android, and iOS (adapters may be required)
• Aluminum alloy construction with 1/4"-20 thread and cold shoe mount

Recommendations

Pair the BY-AM1 with a quality condenser microphone to take full advantage of its phantom power and low-noise preamps. For mobile use, use a USB-C to Lightning or USB-C to USB-C cable (depending on your device) to connect to smartphones or tablets, and monitor via headphones to ensure perfect takes every time.
