Braccio per monitor pneumatico ROLINE 17.03.1147

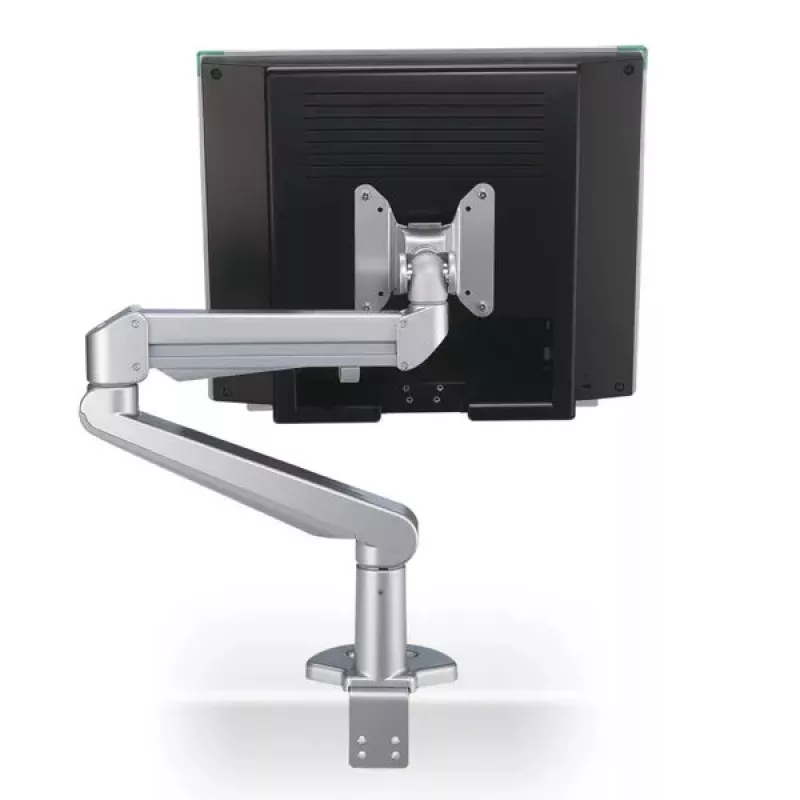

The ROLINE LCD Monitor Stand Pneumatic ROLINE 17.03.1147 is a desk-mounted monitor arm made of high-quality aluminium alloy. Designed with a delicate and streamlined appearance, the pneumatic gas spring allows smooth height adjustment and lets the LCD panel be positioned freely across a wide range. The mount is compatible with VESA 75 (75x75 mm) and VESA 100 (100x100 mm) standards and includes a compact desktop clamp to save workspace.

Advantages

The stand offers stable support for monitors weighing between 3 and 8 kg, with an arm extension of approximately 486 mm and a lift range from 200 to 500 mm. A built-in cable management channel keeps cables organised along the rear arm. The design includes a pivot function enabling 90° screen rotation and full 360° rotation for arm and display movement, providing versatile ergonomic positioning.

Suitable for

• Home offices and professional workstations
• Small desks where space saving is important
• Users who need frequent height and angle adjustments
• Monitors compatible with VESA 75 / VESA 100 weighing 3–8 kg

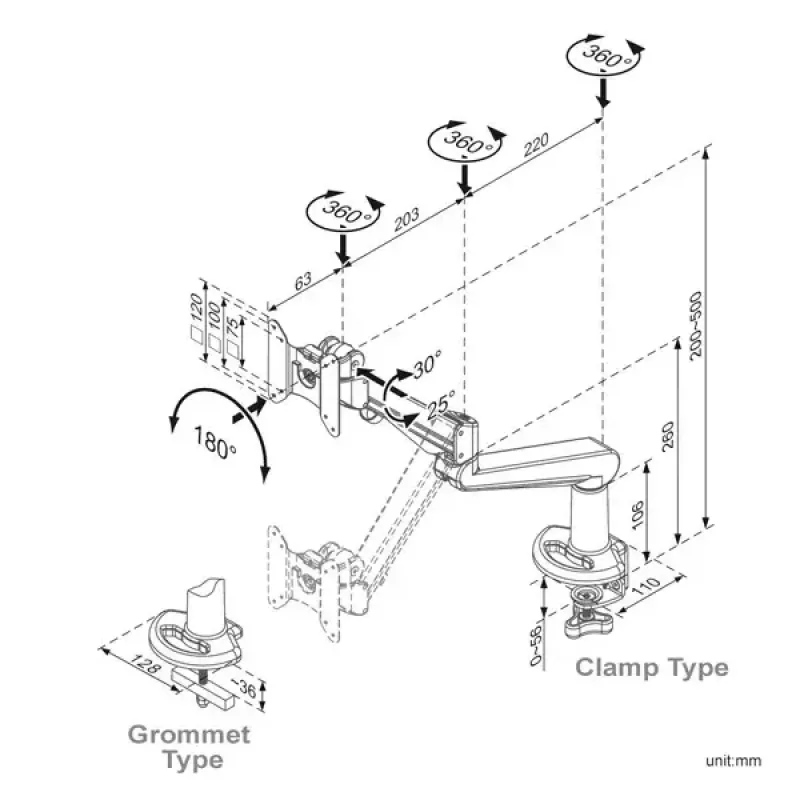

Key specifications

• Brand: ROLINE
• Model / MPN: 17.03.1147
• EAN: 7611990127948
• Material: Aluminium alloy
• Arm extension: ~486 mm
• Lift (height adjustment): 200–500 mm
• Monitor pivot: 180°
• Rotation: 360° (arm & display)
• VESA compatibility: 75x75 mm, 100x100 mm
• Load capacity: 3–8 kg

How to use

Attach the desk clamp to a stable desk edge following the mounting instructions. Secure the monitor to the VESA plate (75x75 or 100x100) and connect the plate to the arm. Use the pneumatic gas spring to adjust height and tilt by gently moving the monitor to the desired position; the mechanism provides smooth movement across the specified lift range. Rotate or pivot the display as needed for landscape or portrait orientation and route cables through the integrated cable management channel on the rear arm.

Recommendations

Ensure the monitor weight is within the specified 3–8 kg range and that the VESA pattern matches 75x75 mm or 100x100 mm before installation. Tighten mounting hardware securely and periodically check fastenings. Avoid sudden forceful movements when adjusting the arm to maintain gas spring performance.
