Braccio piatto per montaggio a pannello B-Tech BT8390 VESA 800 200 kg di portata

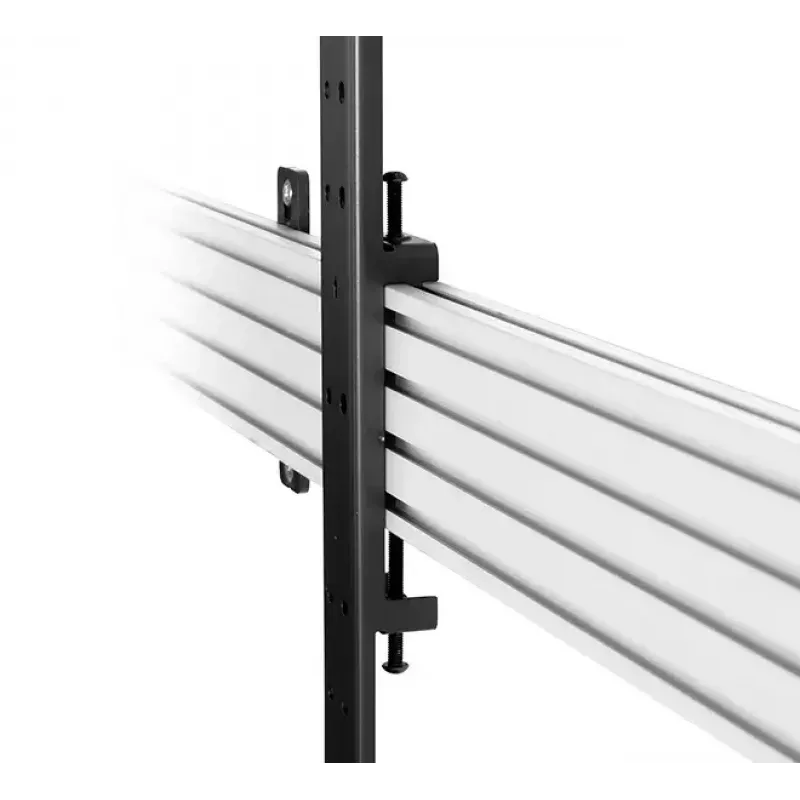

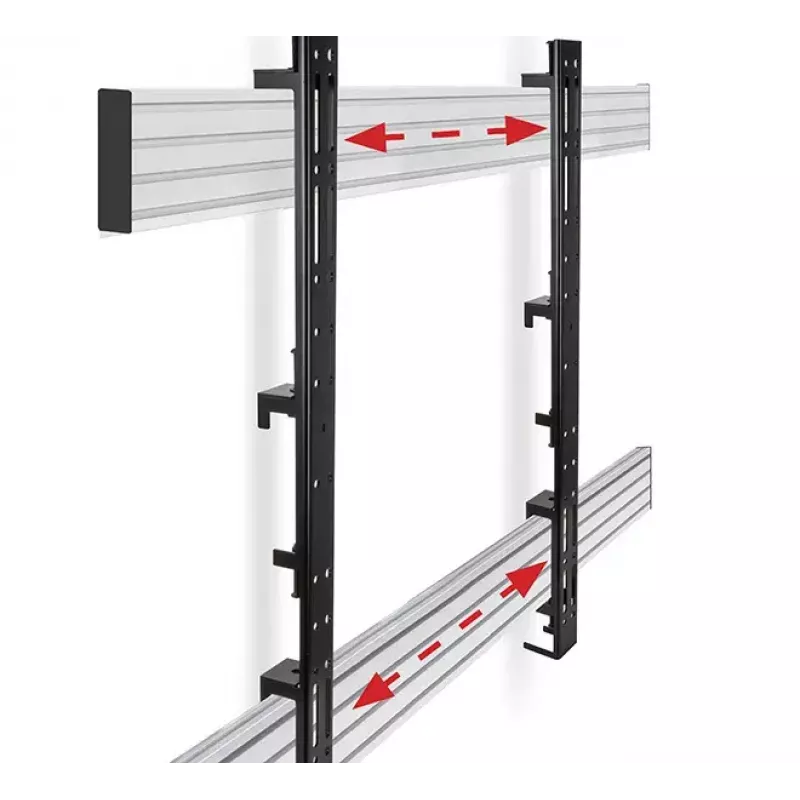

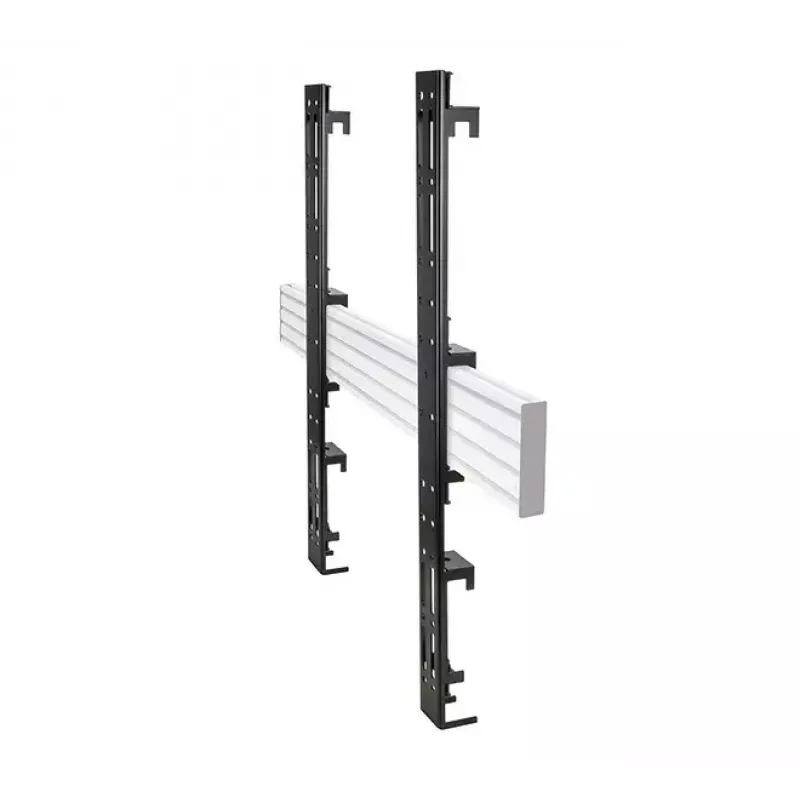

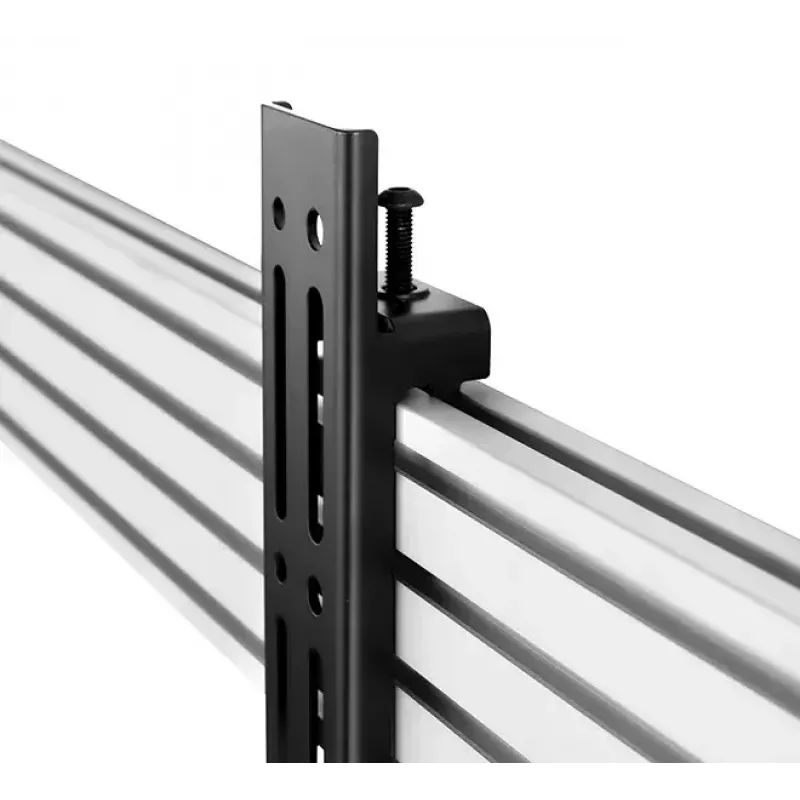

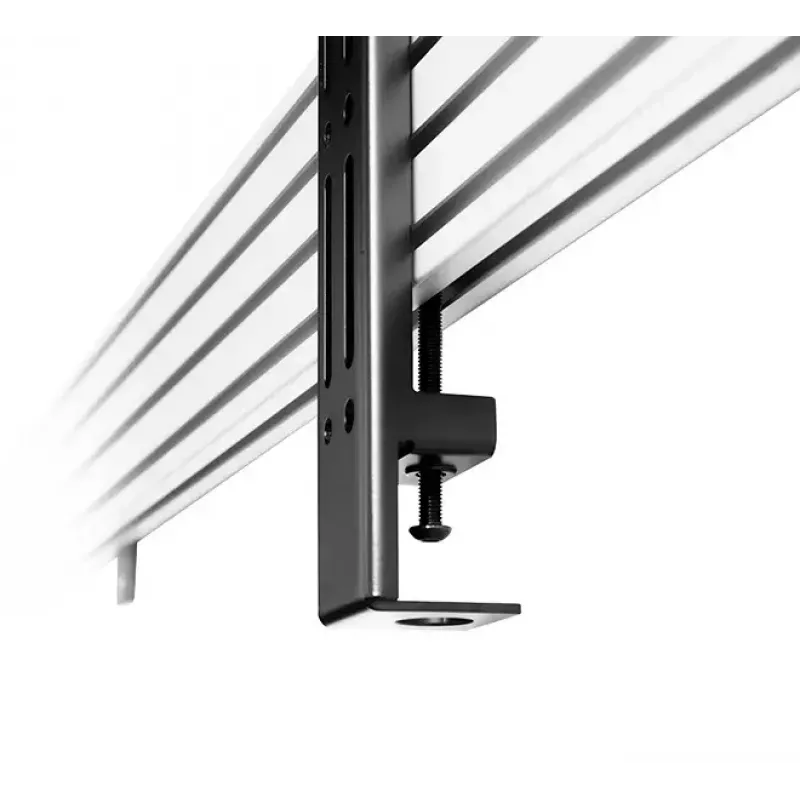

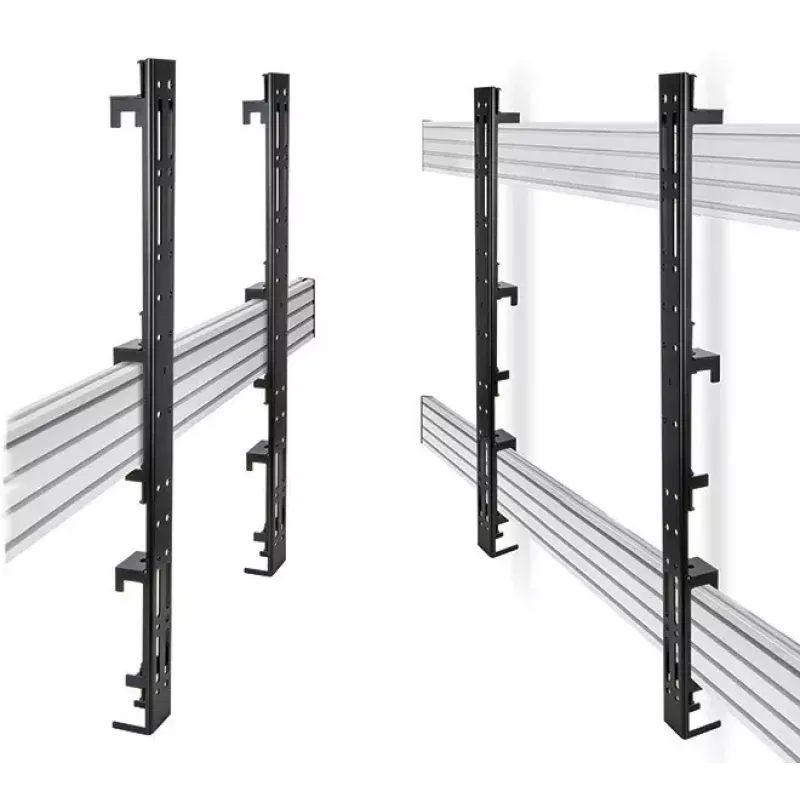

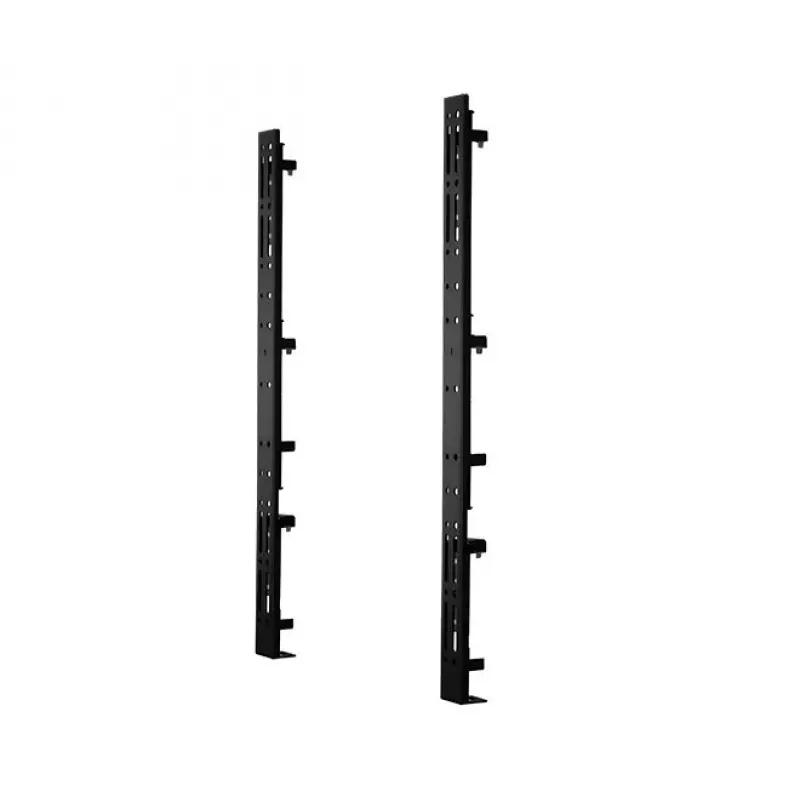

These interface arms mount flat-panel screens to one or two System X horizontal mounting rails in a fixed position. The universal design supports various screen sizes and allows installation in landscape or portrait orientation. Levelling screws on each arm enable post-installation height adjustment, and a mounted depth of 64 mm from the wall provides access for cables and connectors.

Advantages

The B-Tech BT8390 VESA 800 interface arms are rated for heavy-duty use with up to 200 kg capacity and carry cTUVus and TUV certification for reliable performance. The black finish and compact cross-section (58 mm wide, 64 mm deep) offer a low-profile, professional appearance while maintaining the mechanical strength required for large displays. Adjustable levelling screws simplify final alignment after mounting.

Suitable for

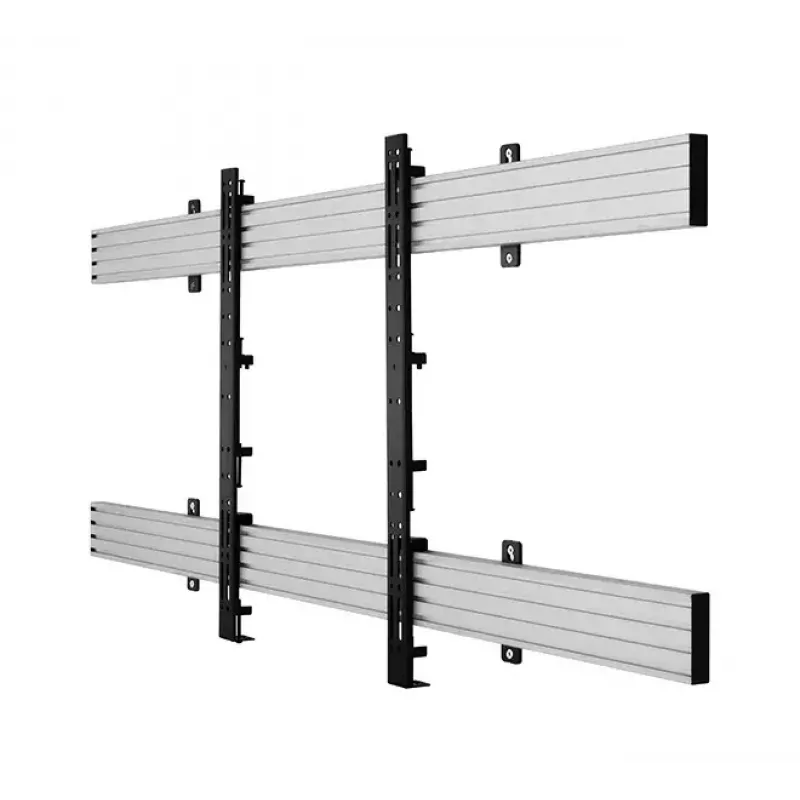

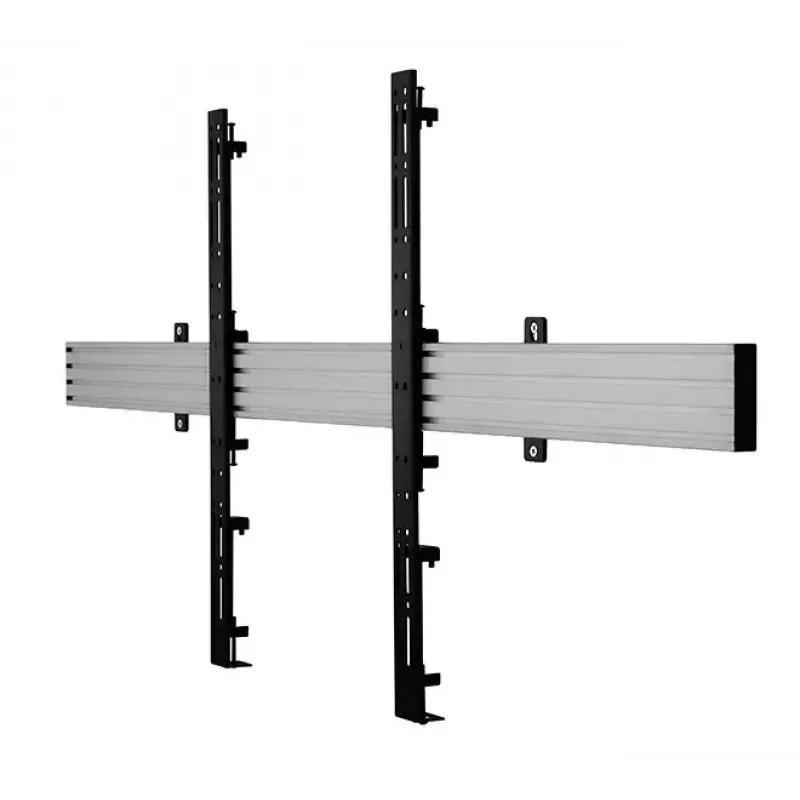

• Mounting large flat-panel displays on System X horizontal rails
• Fixed installations requiring portrait or landscape orientation
• Commercial AV, digital signage, and control-room displays

Key specifications

• Maximum load capacity: 200 kg
• Compatible with VESA 800 mounting pattern
• Depth from wall when mounted: 64 mm
• Overall height: 886 mm
• Width: 58 mm
• Finish: black
• Certifications: cTUVus, TUV

How to use

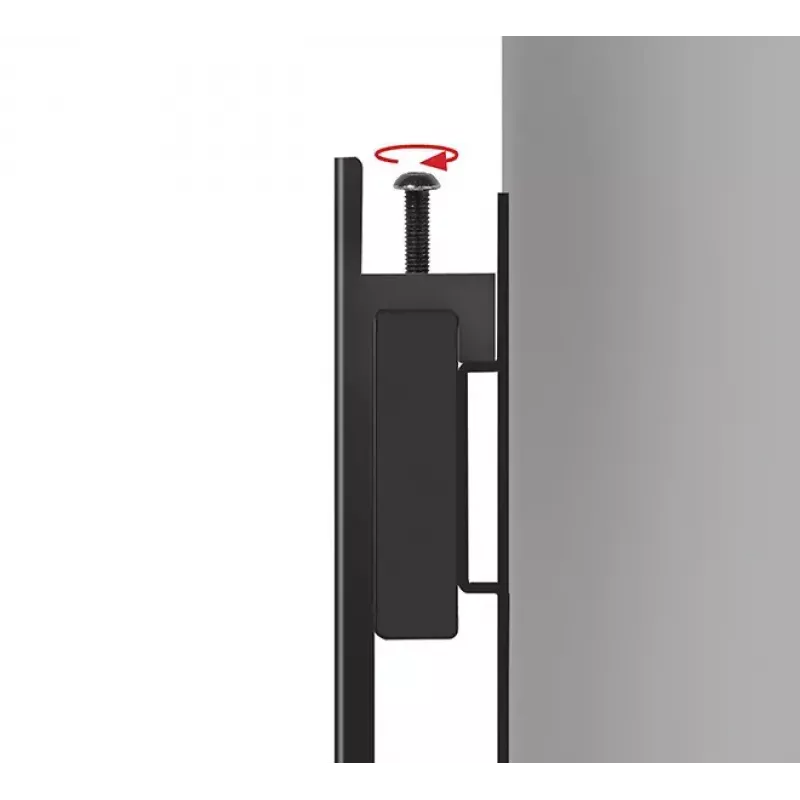

Attach the interface arms to one or two System X horizontal mounting rails following the rail manufacturer’s instructions, then fix the screen to the arms using the VESA 800 pattern. Use the levelling screws on each arm to adjust the display height and ensure it is level. Confirm that the total weight of the screen does not exceed the 200 kg capacity and that all fasteners are tightened according to recommended torque values.

Recommendations

For safe and durable installation, use with compatible System X rails, verify screen weight and VESA pattern before mounting, and route cables through the gap provided by the 64 mm mounting depth to avoid strain on connectors.
