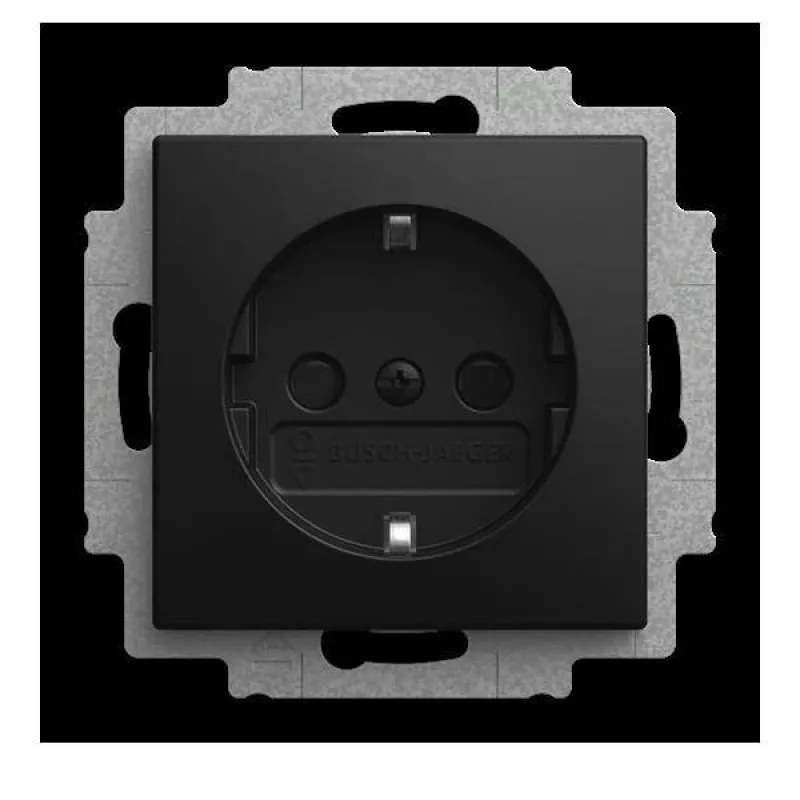

BUSCH-JAEGER BJ 23 EUCB-915 modulo presa SCHUKO Safety+ con morsetti a vite (2CKA002013A5543)

Electricians and installers fitting flush-mounted SCHUKO socket outlets in residential or commercial buildings will appreciate the BUSCH-JAEGER BJ 23 EUCB-915 insert. It provides a 1-gang socket with enhanced contact protection (Safety+) and screw terminals for secure wiring.

Key specifications

• Socket type: SCHUKO (Type F)
• Connection type: screw terminals
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Safety feature: enhanced contact protection (Safety+)
• Mounting type: flush-mounted
• Number of gangs: 1
• Material: thermoplastic
• Terminal capacity (rigid conductors): 1.5 - 2.5 mm²
• Installation depth: approx. 32 mm

Why choose it

This insert is designed for use with Busch-Jaeger cover plates and frames, ensuring a consistent look. The Safety+ feature provides increased protection against accidental contact, making it suitable for homes with children.

Ideal use cases

• New electrical installations in homes and offices
• Replacement of existing SCHUKO sockets
• Projects requiring child-safe outlets

Good to know

The insert fits standard wall boxes and is compatible with common Busch-Jaeger switch ranges. Screw terminals accept rigid conductors from 1.5 to 2.5 mm².
