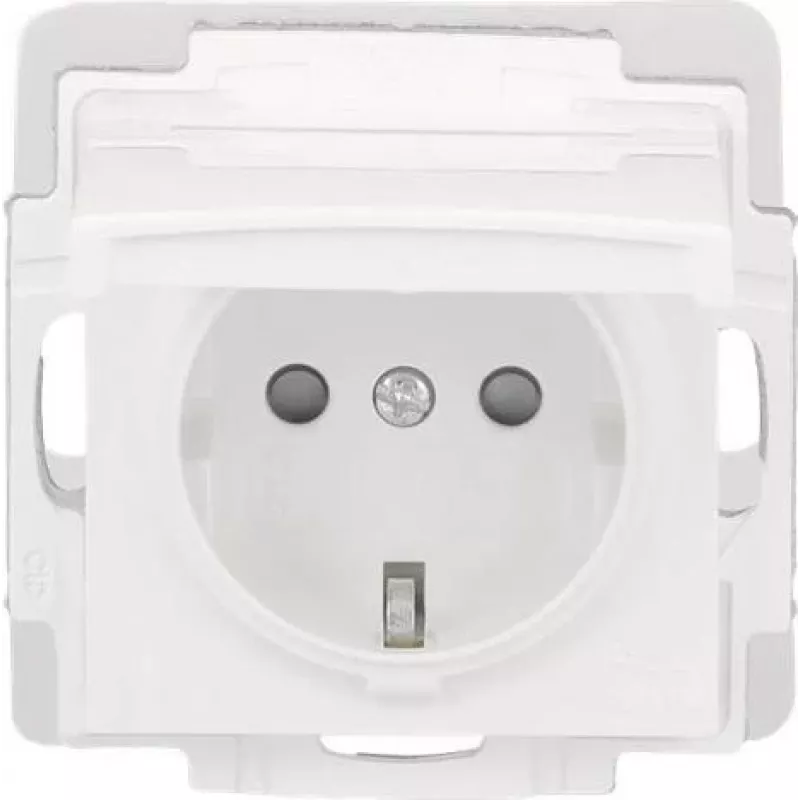

BUSCH-JAEGER Modulo presa SCHUKO 16A 250V da incasso bianco alpino 2CKA002013A5446

Rated at 16 A and 250 V AC, this SCHUKO socket outlet insert from Busch-Jaeger delivers robust power connectivity for residential and commercial installations. The flush-mounted design integrates seamlessly into standard wall boxes, while screw terminals accept rigid conductors from 1.5 to 2.5 mm² for secure, maintenance-free connections.

Overview

Part of the Reflex SI / SI Linear series, this 1-gang socket outlet combines a glossy thermoplastic (PC/ABS) finish in Alpine White with a halogen-free construction. It is certified to VDE standards and operates reliably across a temperature range of -5 to +40 °C at 50/60 Hz.

What stands out

• SCHUKO (Type F) socket with 2-pole + earth configuration
• 16 A / 250 V AC rating for high-power appliances
• Flush-mounted installation for a clean, modern look
• Halogen-free thermoplastic housing in glossy Alpine White
• VDE certified for safety and compliance

Technical details

• Socket type: SCHUKO (Type F)
• Sockets quantity: 1
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Terminal capacity: 1.5 - 2.5 mm² (rigid conductors)
• Mounting type: Flush-mounted
• Material: Thermoplastic (PC/ABS)
• Surface finish: Glossy
• Colour: Alpine White
• Halogen-free: Yes
• Operating temperature: -5 to +40 °C
• Certification: VDE

Our verdict

A reliable and aesthetically pleasing SCHUKO socket outlet that meets strict VDE requirements, ideal for modern electrical installations where safety and design go hand in hand.
