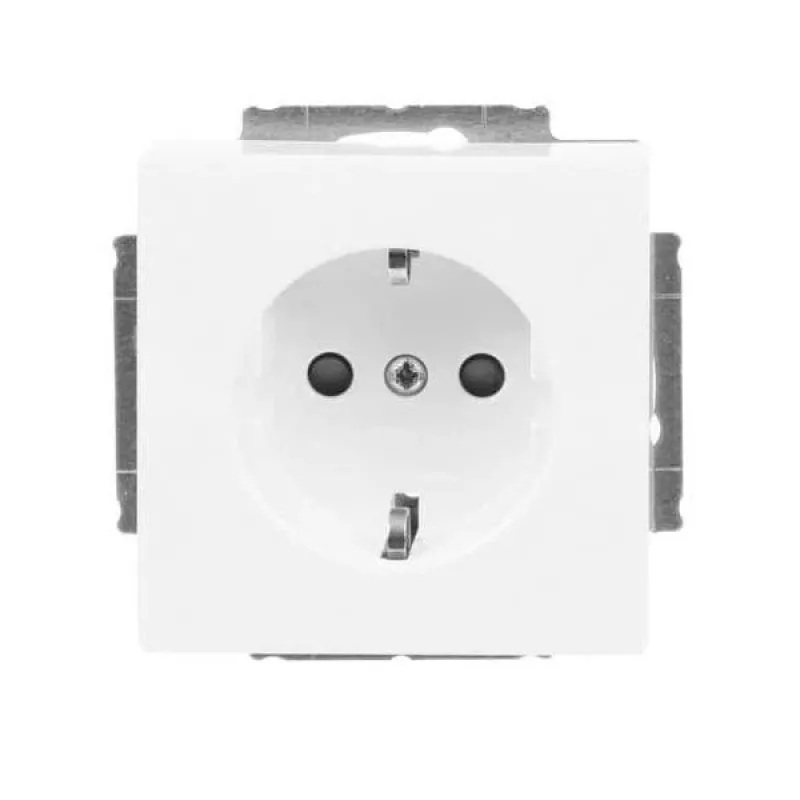

Busch-Jaeger Modulo presa SCHUKO, studio bianco, 16 A, da incasso, protezione bambini 2CKA002013A5430

The Busch-Jaeger SCHUKO socket outlet insert in studio white provides a flush-mounted, single-gang power point with central earth contact and increased touch protection. It is built around plug-in terminals for fast wiring and is compatible with common Busch-Jaeger cover frames such as Reflex SI, future linear, carat and pure.

Highlights

• SCHUKO (Type F) socket, 2-pole + earth, 250 V AC, 16 A
• Flush-mounted design with plug-in terminals
• Increased touch protection (child protection)
• Halogen-free thermoplastic housing in studio white
• VDE certified

In daily use

The insert is intended for installation in standard flush-mounted boxes. It accepts SCHUKO plugs and is suitable for use with a wide range of Busch-Jaeger cover frames, allowing it to be matched to different design lines.

Full specifications

• Socket type: SCHUKO (Type F)
• Number of sockets: 1-gang
• Rated voltage: 250 V AC
• Rated current: 16 A
• Connection type: Plug-in terminals
• Mounting type: Flush-mounted
• Increased touch protection: Yes
• Material: Thermoplastic
• Colour: Studio white
• Halogen-free: Yes
• Degree of protection: IP20
• Earth contact position: Central
• Number of poles: 2-pole + earth
• Certification: VDE

Final note

A reliable flush-mounted SCHUKO socket insert with child protection, designed for use with Busch-Jaeger cover frames.
