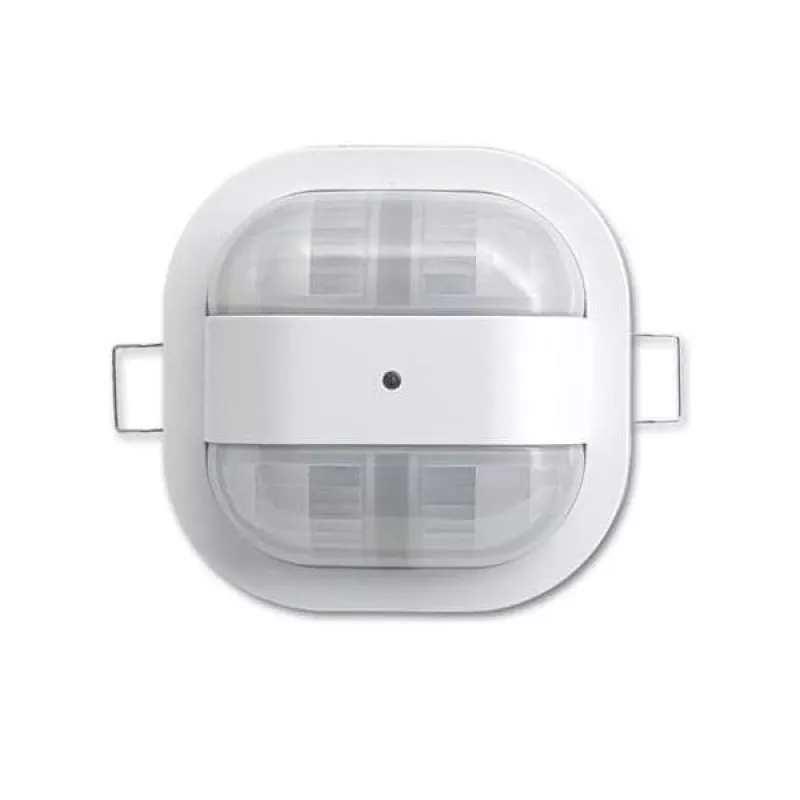

Busch-Jaeger Rilevatore di presenza studio bianco opaco 6819/58-24 2CKA006800A2754

360° passive infrared presence detector with adjustable brightness threshold and time delay, designed for flush-mounted installation.

Overview

The Busch-Jaeger 6819/58-24 is a presence detector with a 360° detection angle and a range of approximately 7 m diameter at a mounting height of 1.1 m. It operates on 230 V AC and can switch resistive loads up to 2300 W or LED lamps up to 200 W. The brightness threshold is adjustable from 5 to 1000 Lux, and the time delay can be set from 10 seconds to 30 minutes.

What stands out

• 360° detection angle for comprehensive coverage
• Adjustable brightness threshold (5–1000 Lux)
• Adjustable time delay (10 s – 30 min)
• Manual override via extension input
• Master/slave capability
• Studio white matt finish

Technical details

• Sensor technology: Passive Infrared (PIR)
• Mounting type: Flush-mounted (requires separate insert)
• Operating voltage: 230 V AC, 50 Hz
• Switching capacity (resistive load): 2300 W
• Switching capacity (LED lamps): 200 W
• Protection class: IP20
• Operating temperature: 0 °C to +45 °C
• Standby power consumption: 0.5 W
• Housing material: Thermoplastic

Our verdict

A versatile presence detector for indoor use, offering flexible settings and reliable switching for various load types.
