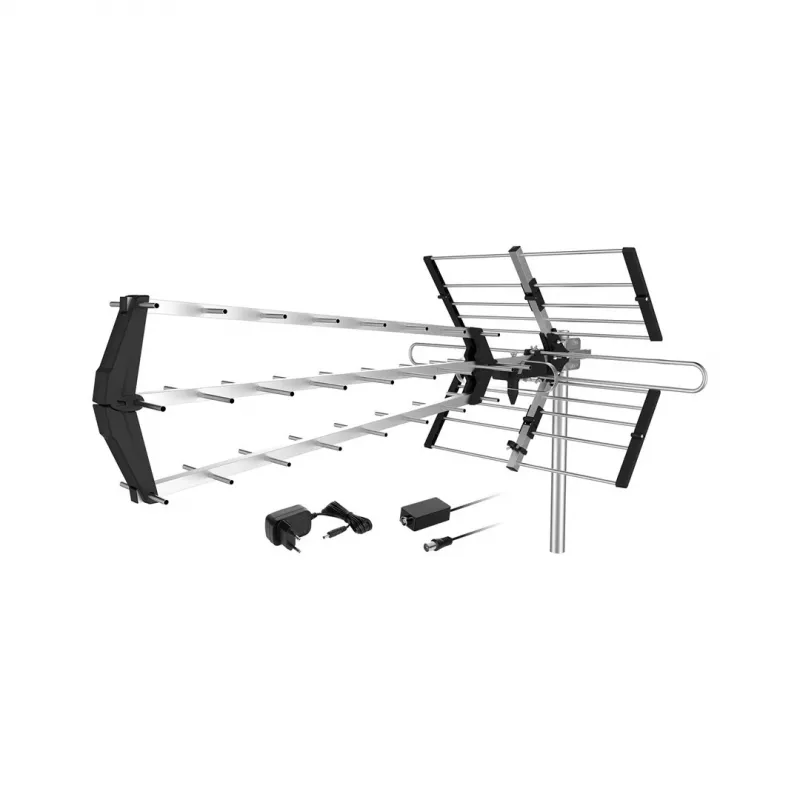

CABLETECH ANT0641 Antenna direttiva attiva per esterni per DVB-T2 con amplificatore 28 dB e filtro LTE

With a built-in 28 dB low-noise amplifier and an integrated LTE/4G filter, the CABLETECH ANT0641 pulls in weak DVB-T2 signals while rejecting interference from mobile networks above 790 MHz. This active directional antenna is built for outdoor installation, delivering up to 42 dB of total gain for stable reception of digital terrestrial television, DAB+ digital radio, and FM broadcasts.

Overview

The ANT0641 is a high-performance active directional antenna designed for outdoor use. It covers the full VHF (174–230 MHz) and UHF (470–790 MHz) bands used by DVB-T and DVB-T2 broadcasts, as well as DAB+ and FM radio. The integrated low-noise amplifier boosts weak signals by 28 dB, while the built-in LTE filter cuts off frequencies above 790 MHz to prevent interference from 4G/5G mobile networks. The antenna features a rugged, weatherproof housing with UV-resistant materials, making it suitable for year-round outdoor installation.

What stands out

• Active directional design with 28 dB built-in amplifier for maximum signal gain
• Integrated LTE/4G filter eliminates interference from mobile networks
• Wide frequency coverage: VHF 174–230 MHz, UHF 470–790 MHz
• Supports DVB-T, DVB-T2, DAB+, and FM radio
• Weatherproof, UV-resistant housing for durable outdoor use
• Flexible power options: 5V via coaxial cable or 12V via included power injector
• Horizontal or vertical polarization for optimal signal alignment
• Complete mounting kit included for pole or mast installation

Technical details

• Frequency range: VHF 174–230 MHz, UHF 470–790 MHz
• Built-in amplifier gain: 28 dB
• Maximum total gain: up to 42 dB
• Noise figure: less than 3 dB
• Output impedance: 75 Ohm
• Connector: F-type
• Power supply: DC 5V (via coaxial cable) or DC 12V (via power injector)
• Power consumption: less than 3 W
• VSWR: less than 2.5
• Polarization: horizontal or vertical
• LTE/4G filter: yes (cuts off above 790 MHz)
• Weather resistance: UV-resistant, waterproof housing
• Material: aluminum elements, ABS plastic housing
• Mounting: pole/mast mount with clamp included

Our verdict

The CABLETECH ANT0641 is a robust and powerful outdoor antenna that excels in areas with weak or interference-prone DVB-T2 signals. Its combination of high gain, low noise, and LTE filtering makes it a reliable choice for anyone seeking stable digital TV reception in challenging environments.
