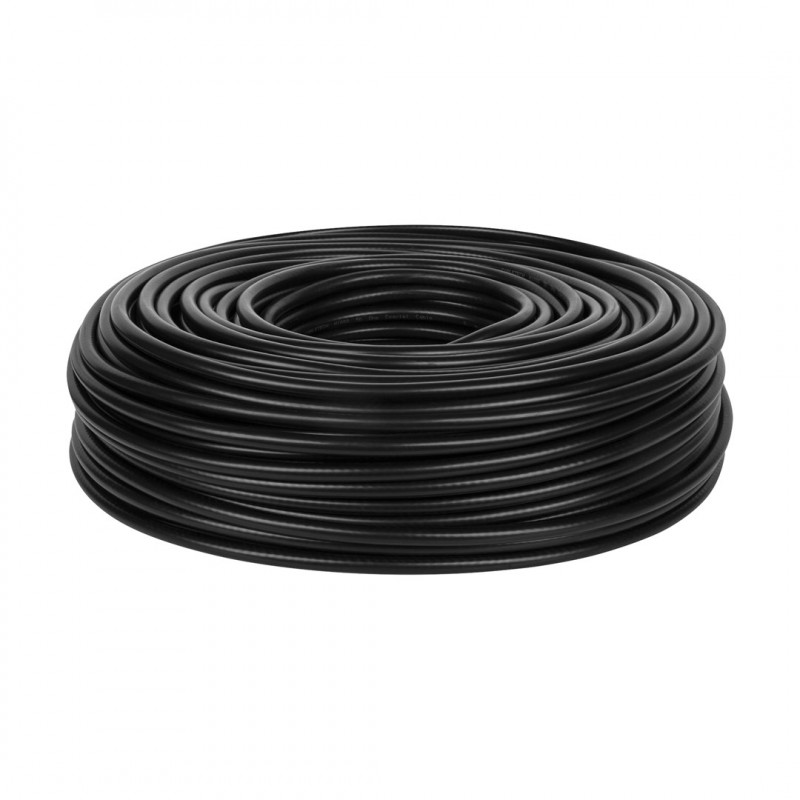

Cavo coassiale H1000 100m nero

Reliable signal transmission over long distances is a common challenge in satellite and cable TV installations. The CABLETECH KAB0040 H1000 coaxial cable solves this by offering low attenuation and robust shielding, ensuring clear picture and sound quality even at 100 meters. This 75-ohm cable is specifically engineered for high-frequency applications, making it an excellent choice for professional and DIY setups alike.

Who is it for

This cable is ideal for installers, technicians, and home users who need a dependable connection for satellite TV, DVB-T, DVB-C, radio, or CCTV systems. Whether you're setting up a new antenna, extending an existing line, or wiring a surveillance system, the H1000 cable provides the performance and durability required for long-term use.

Main features

• High-quality coaxial cable with 75 Ohm impedance for optimal signal integrity
• 100-meter length allows flexible routing without signal loss
• Double shielding (aluminium foil + tinned copper braid) with over 60% braid coverage for excellent interference rejection
• Solid copper inner conductor (1.0 mm) ensures superior conductivity and low attenuation
• UV-resistant PVC jacket protects against outdoor elements, making it suitable for both indoor and outdoor use
• Foamed polyethylene dielectric maintains consistent impedance and reduces signal loss

Specifications

• Cable type: Coaxial cable
• Standard: H1000
• Impedance: 75 Ohm
• Length: 100 m
• Colour: Black
• Inner conductor: Solid copper, 1.0 mm diameter
• Dielectric: Foamed polyethylene, 4.8 mm diameter
• Shielding: Double shielded (aluminium foil + tinned copper braid), braid coverage >60%
• Outer jacket: UV-resistant PVC, 6.8 mm diameter
• Attenuation: 6.5 dB/100m @ 100 MHz, 15.0 dB/100m @ 500 MHz, 22.0 dB/100m @ 1000 MHz, 32.0 dB/100m @ 2000 MHz
• Screening effectiveness: >90 dB
• Applications: Satellite TV, DVB-T, DVB-C, radio, CCTV

Tips

For best results, use appropriate F-type connectors and ensure proper weatherproofing for outdoor connections. When running the cable, avoid sharp bends that could damage the shielding. This cable is compatible with standard coaxial connectors and tools, making installation straightforward.
