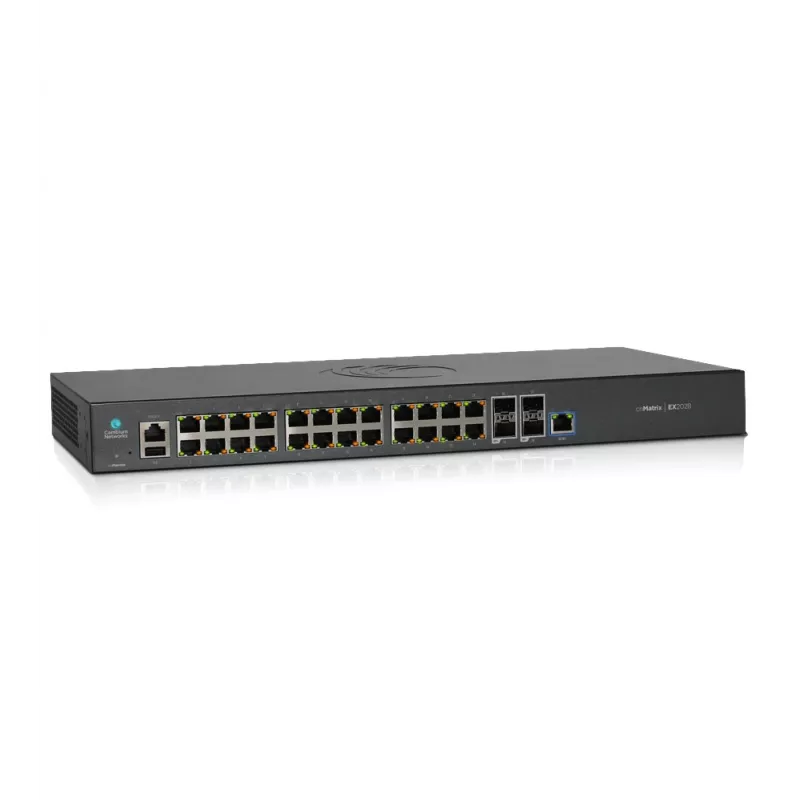

Cambium Networks cnMatrix EX2028 Managed L2/L3 Gigabit Ethernet

The Cambium Networks cnMatrix EX2028 Managed L2/L3 Gigabit Ethernet switch simplifies network deployment and operation by providing a unified wired/wireless enterprise-grade solution when integrated with cnPilot WLAN access points and the cnMaestro management system. This 1U, 24-port Gigabit Ethernet managed switch supports L2/L3 functions and 10G uplinks, offering an efficient option to improve network performance, security and management while reducing provisioning time and operational cost.

Advantages

The cnMatrix EX2028 delivers full managed-switch capabilities with support for industry networking standards (including IEEE 802.1Q VLANs, 802.1x authentication and 802.1p QoS), 24 Gigabit RJ-45 ports and 10G uplink options. Its integration with cnPilot access points and cnMaestro enables centralized provisioning and streamlined operations. The switch combines compact 1U form factor and a black metal chassis with feature-rich software to reduce deployment time and ongoing management overhead.

Suitable for

• Enterprise access layer switching for offices and campus networks
• Network deployments requiring centralized management with cnMaestro
• Environments needing VLANs, 802.1x security and QoS for voice and data
• Installations that use cnPilot WLAN access points for unified wired/wireless solutions

Key specifications

• Model: cnMatrix EX2028 (MX-EX2028XXA-E)
• Ports: 24 x Gigabit Ethernet RJ-45 (10/100/1000)
• Uplink: 10G support
• Switch type: Managed L2/L3
• Form factor: 1U, rack-mountable
• Networking standards: IEEE 802.1p, 802.3z, 802.3x, 802.3u, 802.3ab, 802.3, 802.1x, 802.1w, 802.1s, 802.1Q, 802.1D
• Colour: Black
• Weight: 2.77 kg
• EAN: 5706998582928

How to use

Install the cnMatrix EX2028 in a standard 19-inch rack (1U) and connect client devices to the 24 Gigabit RJ-45 ports. Configure uplinks as required for 10G connections. Use the built-in management interface or integrate the switch with cnMaestro for centralized provisioning, monitoring and firmware management. Configure VLANs, 802.1x authentication and QoS according to network design to segregate traffic and prioritise critical services such as voice and real-time applications.

Recommendations

For optimal results, deploy the EX2028 together with Cambium cnPilot access points and manage devices centrally via cnMaestro to reduce provisioning time and simplify ongoing operations. Follow standard rack-mounting, grounding and airflow practices and apply firmware updates through the management system to maintain security and stability.
