Cambium Networks Iniettore DC PoE 60W 56V 5GbE indoor, alimentazione Energy Level 6

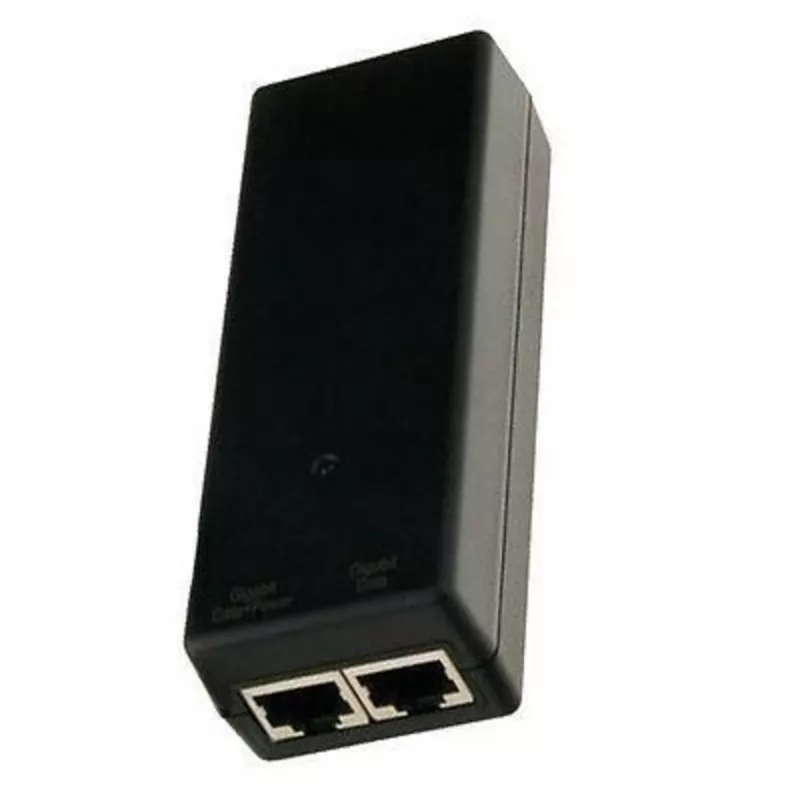

The Cambium Networks PoE 60W 56V 5GbE DC Injector is a high-performance Power over Ethernet (PoE) injector designed for indoor use. It delivers up to 60W of power at 56V DC over 5 Gigabit Ethernet connections, complying with IEEE 802.3bt Type 3 standard. This energy-efficient Level VI power supply accepts a standard IEC C5 connector and is ideal for powering advanced networking devices such as access points, switches, and IoT equipment.

Advantages

This PoE injector provides a reliable and cost-effective solution for deploying PoE-powered devices without the need for separate power outlets. With 5GbE data rate support, it ensures high-speed data transmission for bandwidth-intensive applications. The compact indoor design and wall-mountable option offer flexible installation, while the comprehensive protection features safeguard connected equipment against electrical faults.

Suitable for

• Powering IEEE 802.3bt compliant devices such as high-power access points, PTZ cameras, and digital signage
• Extending network reach in enterprise, education, and hospitality environments
• Upgrading existing PoE+ networks to support higher power demands

Key specifications

• PoE Output Power: 60 W
• PoE Output Voltage: 56 V DC
• Ethernet Data Rate: 5 GbE (5 Gigabit Ethernet)
• PoE Standard: IEEE 802.3bt Type 3
• Input Voltage: 100 - 240 V AC, 50/60 Hz
• AC Input Connector: IEC C5 (Mickey Mouse)
• Data Ports: 2 x RJ-45 (1x Data In, 1x Data & Power Out)
• Usage Environment: Indoor
• Energy Efficiency: Level VI
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 5% to 95% non-condensing
• LED Indicators: Power, Link/Activity
• Safety Certifications: UL, CE, FCC, RoHS
• Mounting Type: Desktop, Wall-mountable
• Protection Features: Over-voltage, Over-current, Short-circuit
• Power Pin Assignment: Pins 1,2,3,6 (+) and 4,5,7,8 (-)

Recommendations

For optimal performance, use with Cat6a or higher cabling to support 5GbE speeds. Ensure the connected device is compatible with IEEE 802.3bt Type 3 PoE. This injector is an excellent choice for powering Cambium Networks access points and other high-power network devices.
