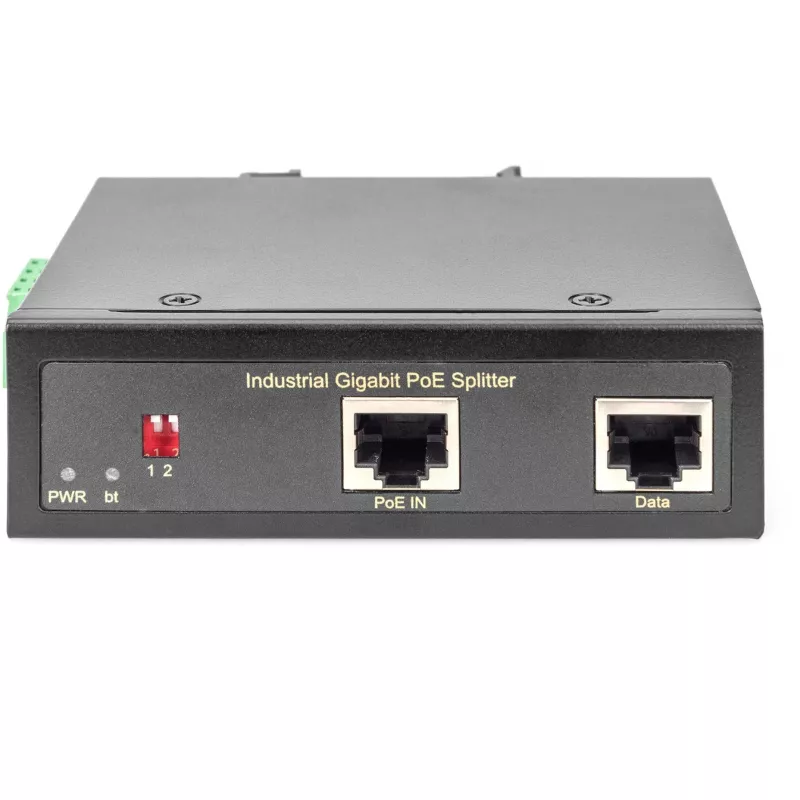

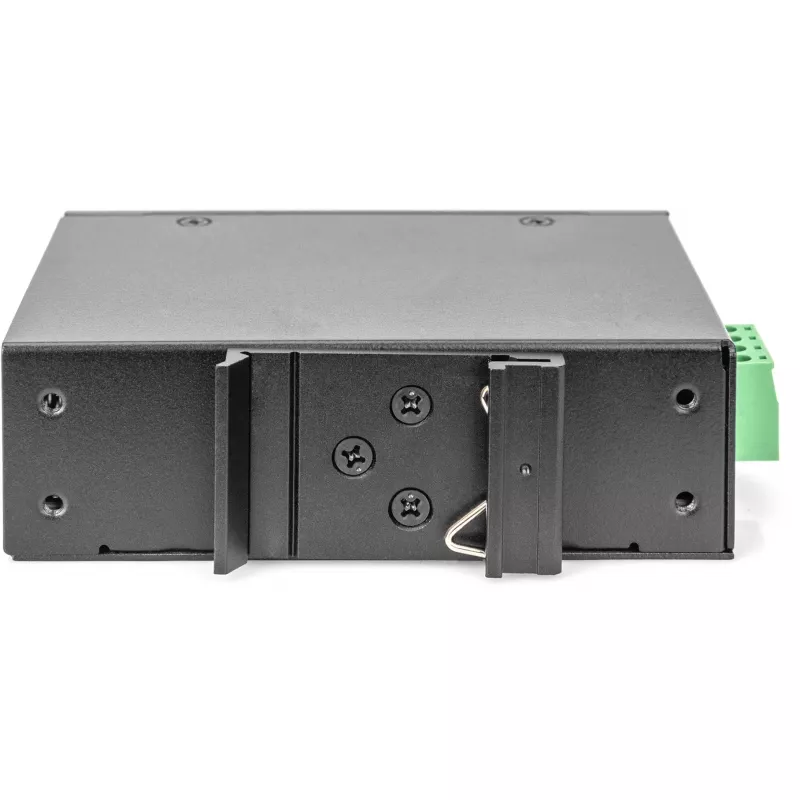

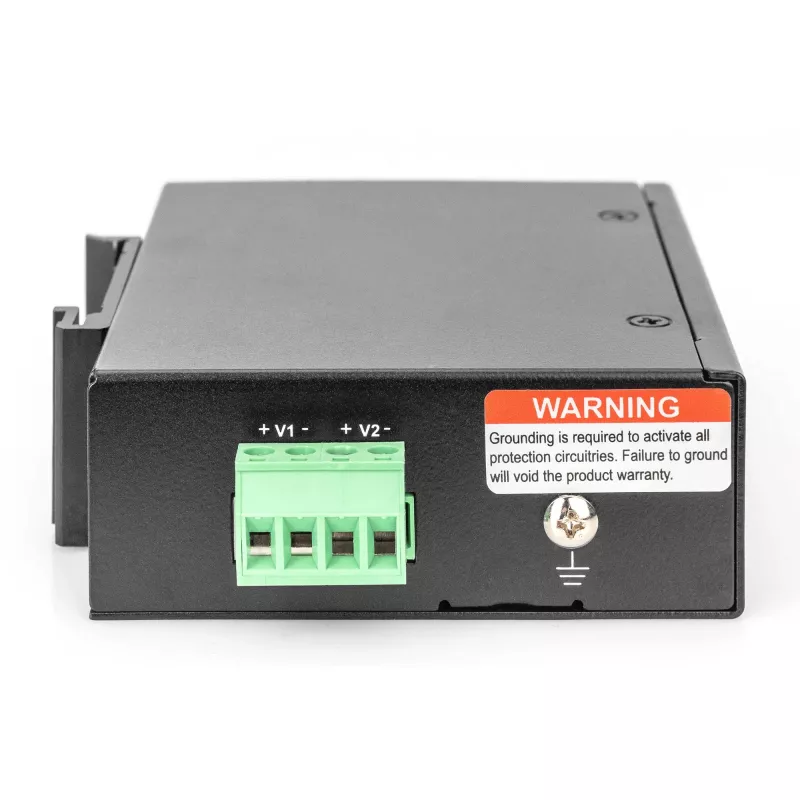

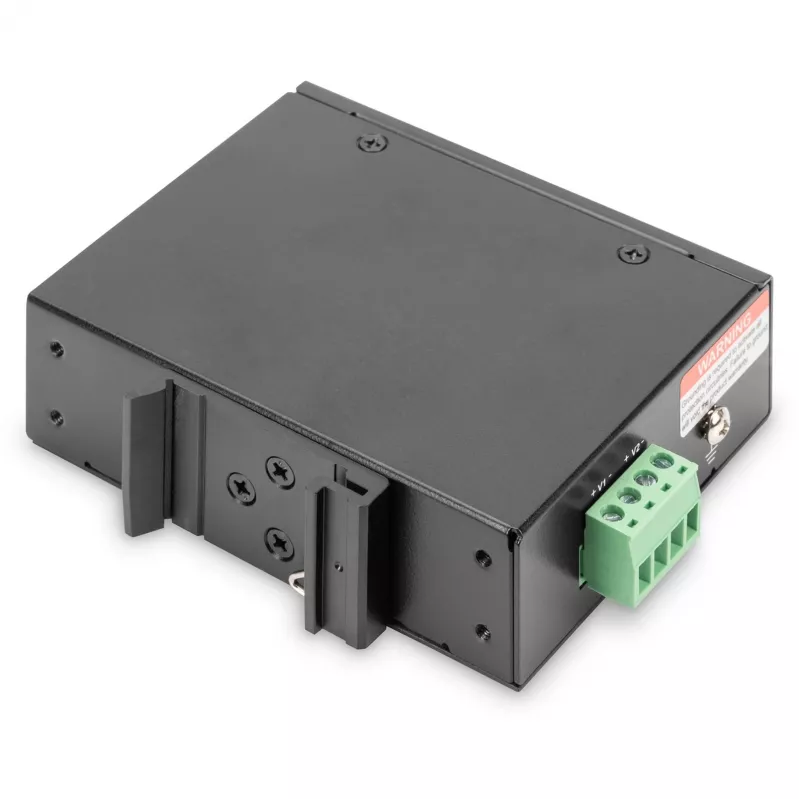

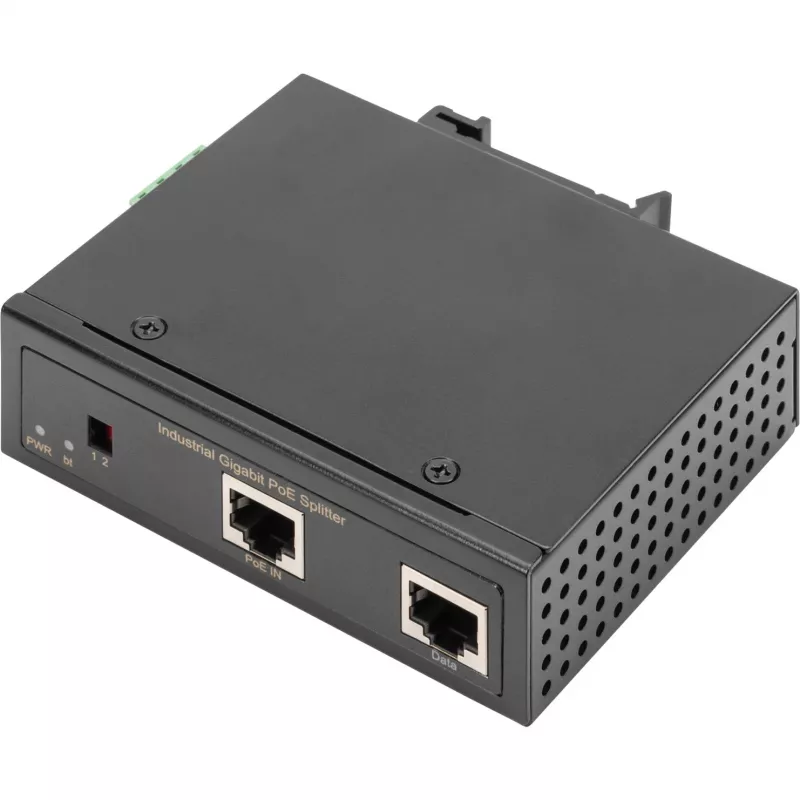

Splitter PoE++ Digitus DN-651111

The DIGITUS PoE++ Splitter DN-651111 is an industrial-grade Gigabit PoE splitter designed for use in harsh environments. Housed in a rugged IP30 aluminium case, it provides a Gigabit data output and a selectable DC output voltage (12V, 16V, 24V or 48V) to supply non-PoE devices. Compliant with IEEE 802.3bt, the splitter supports PoE feed up to 95W and offers two parallel current outputs for connected terminal devices. Its operating temperature range of -40 °C to 75 °C and compact dimensions make it suitable for demanding applications in transport, production, traffic and safety monitoring.

Advantages

The DN-651111 combines Gigabit network connectivity with flexible power delivery, enabling integration of non-PoE devices into PoE infrastructures without additional power wiring. The rugged aluminium housing with IP30 protection and wide temperature tolerance ensures reliable operation in environments exposed to moisture, temperature fluctuations and vibrations. Plug-and-play operation requires no configuration, and selectable output voltages increase compatibility with a broad range of devices.

Suitable for

• Industrial and factory automation equipment
• Transport systems (rail, road, vehicles)
• Traffic control and road surveillance
• Security and video surveillance cameras (non-PoE models)
• Outdoor and harsh-environment network endpoints (with appropriate enclosure)

Key specifications

• Model: DIGITUS DN-651111 (PoE++ Splitter)
• PoE standard: IEEE 802.3bt (PoE++), up to 95W feed
• Output voltages: selectable 12VDC / 16VDC / 24VDC / 48VDC
• Data interface: Gigabit Ethernet (10/100/1000Base-T)
• Outputs: two parallel current outputs for terminal devices
• Operating temperature: -40 °C to 75 °C
• Housing: aluminium, IP30
• Dimensions: 103.5 mm x 81.5 mm x 32 mm
• Manufacturer: DIGITUS; MPN: DN-651111; EAN: 4016032441182

How to use

Connect the incoming PoE cable from a compatible IEEE 802.3bt PoE++ power source to the splitter's PoE input. Select the required DC output voltage (12V, 16V, 24V or 48V) according to the power requirements of the target device. Connect the device to the splitter's DC outputs and the Gigabit Ethernet data output to the network endpoint. Ensure polarity and voltage compatibility before powering the connected device. The splitter operates without additional configuration.

Recommendations

Install the splitter in a dry, ventilated location or inside an appropriate protective enclosure if used outdoors; verify the selected output voltage and the connected device's power rating; use IEEE 802.3bt-compliant power sources and quality Cat5e/Cat6 cabling for reliable Gigabit performance.
