Carotatrice diamantata Distar T-Concrete 68 mm diametro, 65 mm lunghezza di taglio, attacco SDS+

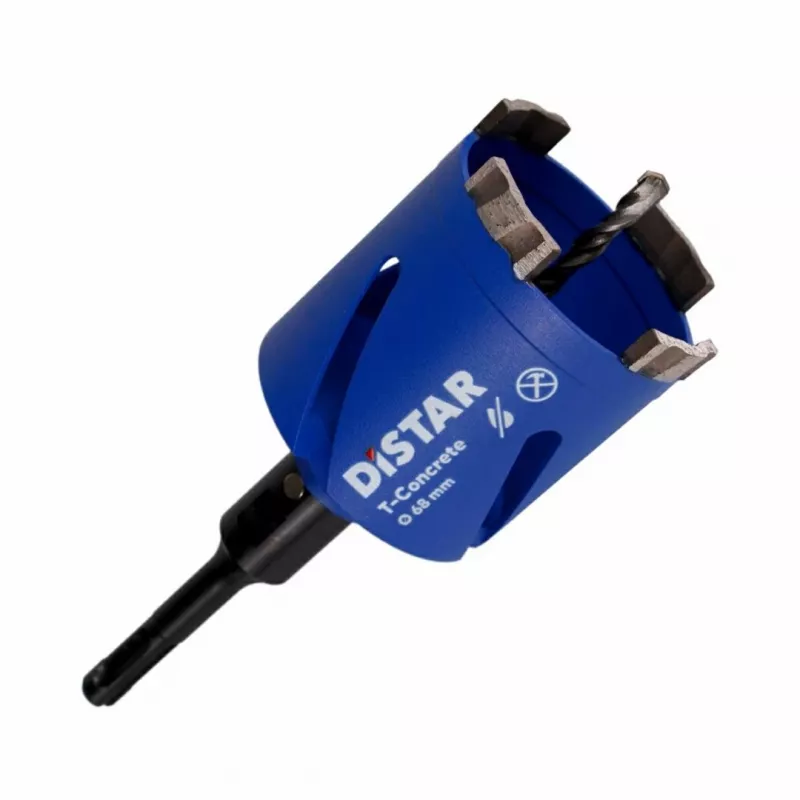

Diamond core drill bit Distar T-Concrete 68 mm diameter, 65 mm cutting length, SDS+ shank is a circular cutting tool designed for making precise holes in concrete, reinforced concrete and masonry. The 68 mm outer diameter and 65 mm cutting length form a compact core bit suited to typical installation and renovation tasks where controlled, smooth-edged openings are required. The SDS+ shank ensures secure mounting in compatible rotary hammer drills and helps transmit impact and rotation for efficient penetration of hard substrates.

Advantages

The diamond-segmented cutting edge provides high abrasion resistance and maintains cutting performance over repeated use, delivering clean hole walls and reducing the need for post-drilling finishing. The SDS+ shank design enables quick, tool-free insertion and reliable retention in hammers with SDS+ chucks, improving work continuity. A compact cutting length minimizes clogging in short-depth applications and allows straightforward extraction of the core when drilling through thin elements.

Suitable for

• Drilling clean circular holes for pipes, conduits and cable entries in concrete and masonry
• Creating openings for anchors, sleeves and utility fixtures during renovation
• Installing plumbing and electrical penetrations through reinforced concrete
• On-site carpentry and construction tasks requiring precise, repeatable hole diameters

Key specifications

• Outer diameter: 68 mm
• Cutting length: 65 mm
• Shank type: SDS+
• Cutting material: diamond segments for hard mineral substrates
• Intended materials: concrete, reinforced concrete, masonry

How to use

Select a rotary hammer drill with an SDS+ chuck and ensure the machine’s power and mode are suitable for diamond core drilling. Mark the hole position and, if possible, use a guide or pilot mark to stabilize the bit at start-up. Fit the Distar T-Concrete core bit into the SDS+ chuck until it locks. Start drilling at low speed to seat the bit, then apply steady pressure and use the hammer function as required for the substrate. Maintain a consistent feed rate without forcing the bit; allow the diamond segments to cut. Periodically withdraw the bit to clear dust and remove the core. Use water cooling where appropriate and compatible with the drill to extend segment life and reduce dust, following the drill manufacturer’s instructions.

Recommendations

For best results, use the core bit with an appropriate drill rated for concrete drilling, and consider wet drilling or intermittent flushing to reduce heat and dust. Wear appropriate PPE including eye protection, gloves and respiratory protection when drilling. Check the drill and bit condition regularly, and replace the core bit when cutting performance noticeably declines.
