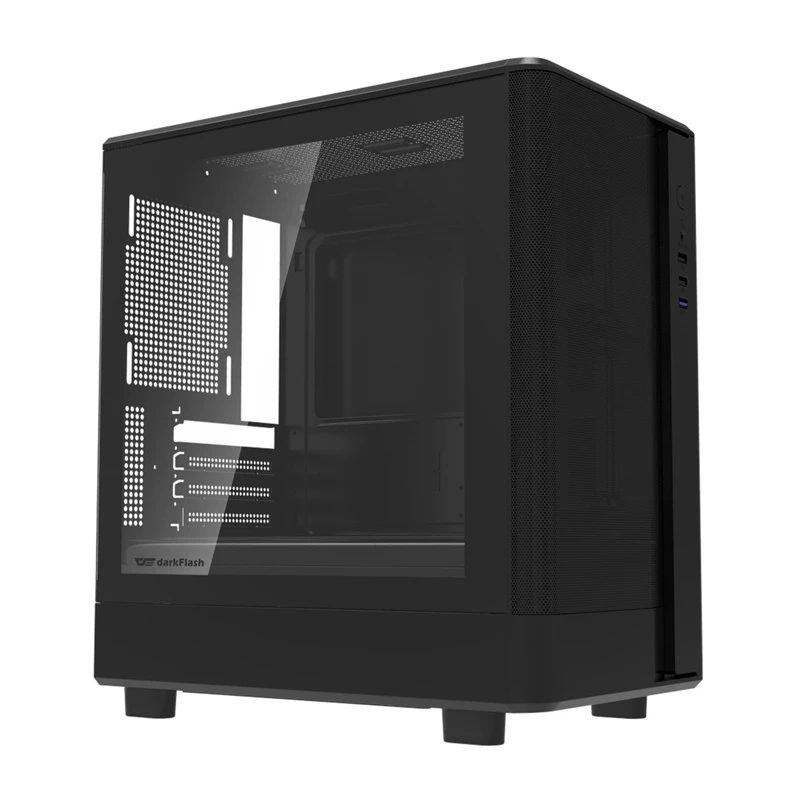

Case per computer Darkflash DB330M Mesh ATX nero

Darkflash DB330M Mesh is a compact mid-tower computer case designed for M-ATX and ITX motherboards. It has external dimensions of 368 × 218 × 400 mm and supports graphics cards up to 305 mm long and CPU coolers up to 180 mm high. The chassis is built on a 0.5 mm SPCC steel frame and combines a tempered glass side panel with a mesh front to enable effective air or liquid cooling.

Advantages

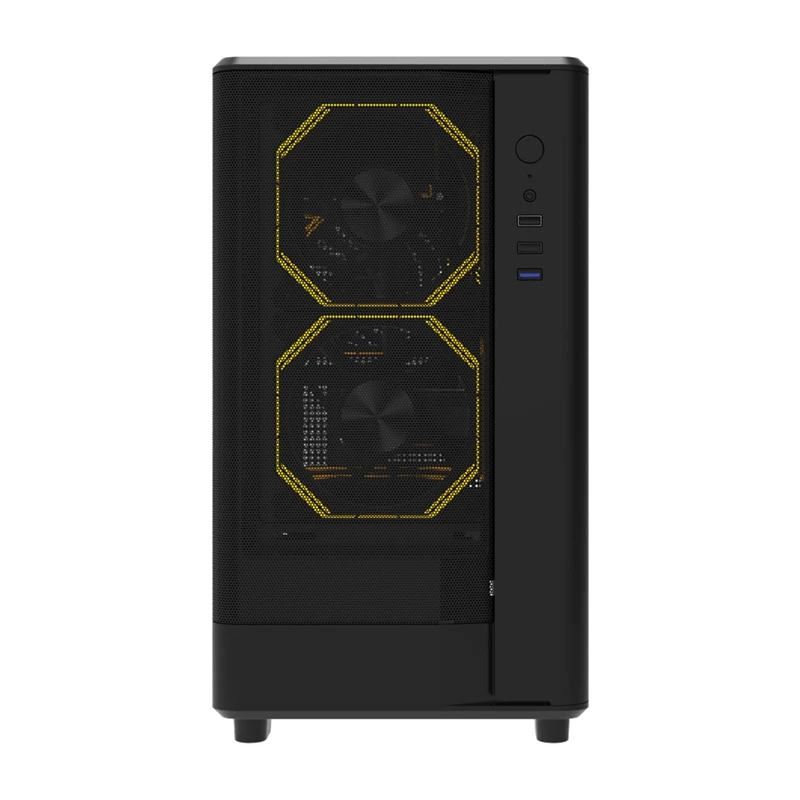

The front mesh panel with integrated dust filtering improves airflow to internal components while additional vents on the top and bottom support overall ventilation. The tempered glass side panel is removable without tools and reveals internal components. The case accepts a standard ATX power supply at the bottom and provides space for tidy cable routing behind the motherboard tray. Multiple fan mounting points and support for a 240 mm top radiator give flexibility for air or AIO liquid cooling configurations.

Suitable for

• Compact gaming PC builds with M-ATX or ITX motherboards
• Home and office systems requiring good airflow and cable management
• Builds using a single long graphics card (up to 305 mm) and up to 180 mm CPU coolers

Key specifications

• Case type: Midi tower (compact)
• Supported motherboard sizes: M-ATX, ITX
• Material: 0.5 mm SPCC steel with tempered glass side panel
• External dimensions (H×W×D): 400 × 218 × 368 mm
• Maximum GPU length: 305 mm
• Maximum CPU cooler height: 180 mm
• Maximum PSU length: 210 mm
• Drive bays: 3.5" HDD ×2, 2.5" SSD ×1
• Expansion slots: 4
• Fan support: up to 7 fans (Front: 2×120 mm; Bottom: 2×120 mm; Top: 2×120/140 mm; Rear: 1×120 mm)
• Water cooling support: Top radiator up to 240 mm
• Front I/O: USB 3.0 ×1, USB 2.0 ×2, HD Audio
• Color: Black
• Weight: 3.8 kg

How to use

Install an M-ATX or ITX motherboard and position the power supply in the bottom compartment. Route cables through the pass-through holes and the contoured rear space to keep the main chamber clear. Fit storage drives into the dedicated drive bays and install the graphics card (up to 305 mm) into the PCI slots. Mount fans in the front, bottom, top and rear positions according to your cooling plan; a 240 mm radiator can be installed at the top if using an AIO liquid cooler. The tempered glass side panel can be removed by hand for component access and maintenance.

Recommendations

For best airflow, use a balanced intake and exhaust configuration (for example, front and bottom intake with top and rear exhaust). Clean the front mesh filter regularly to maintain cooling efficiency and choose fan sizes according to the specified mounting positions.
