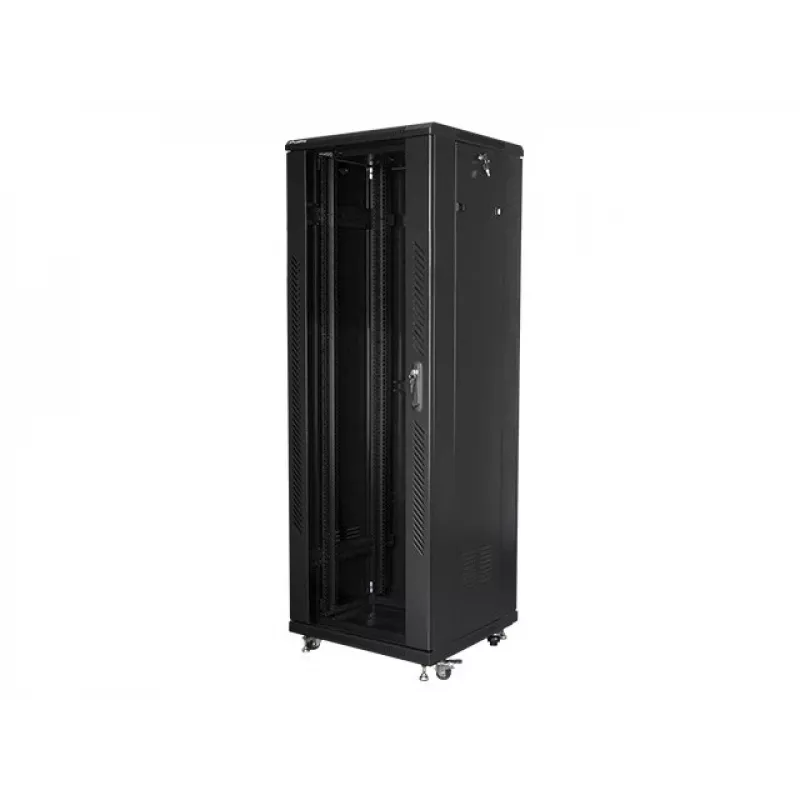

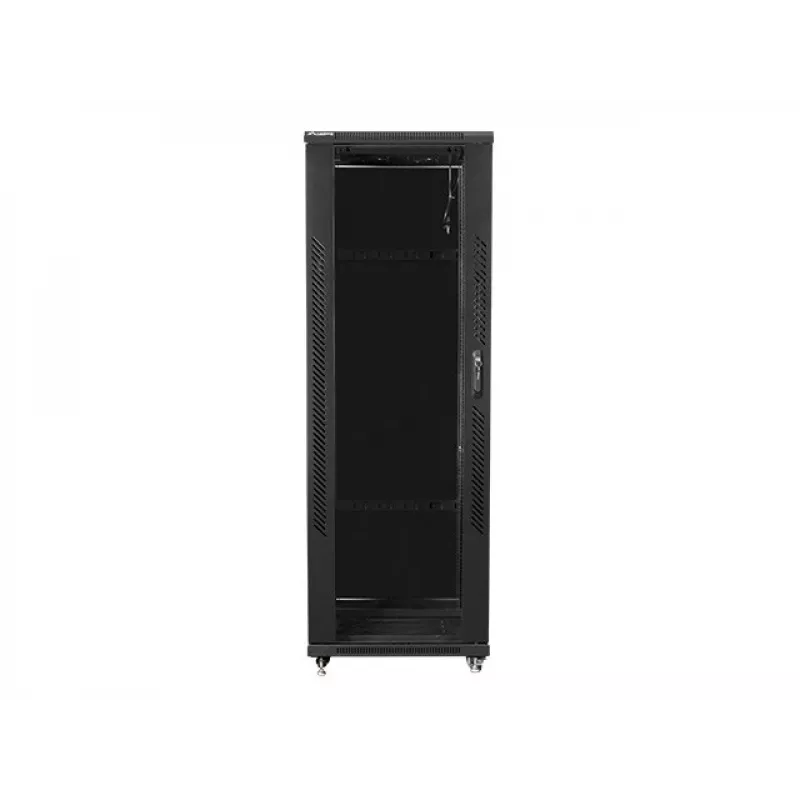

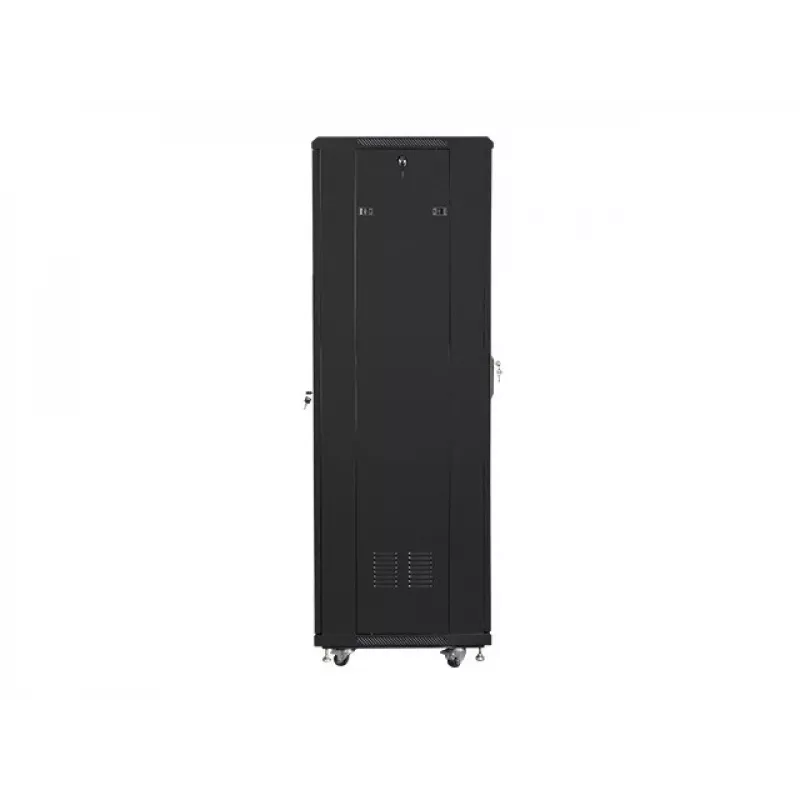

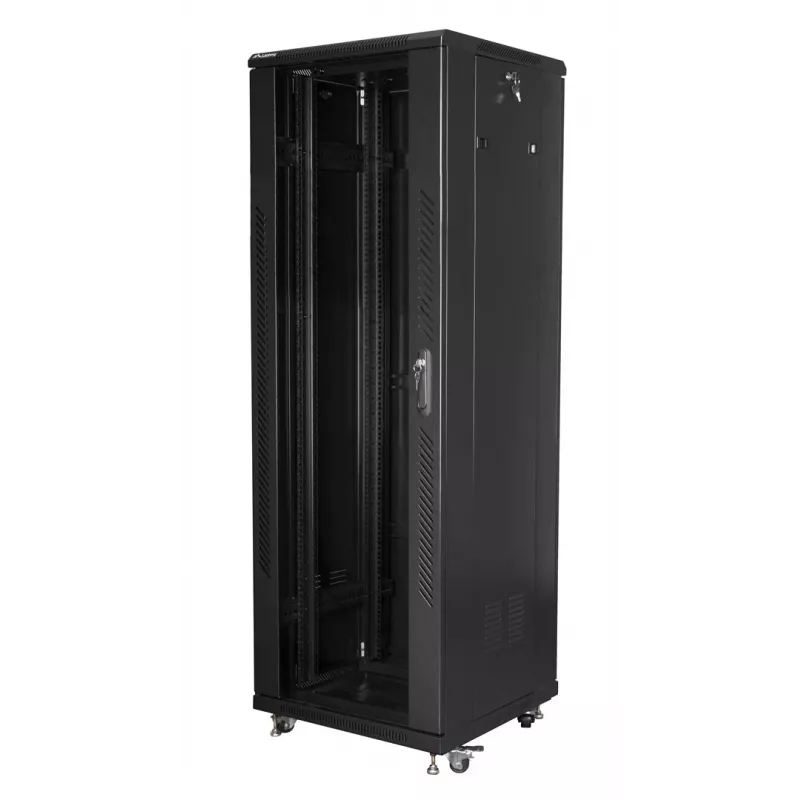

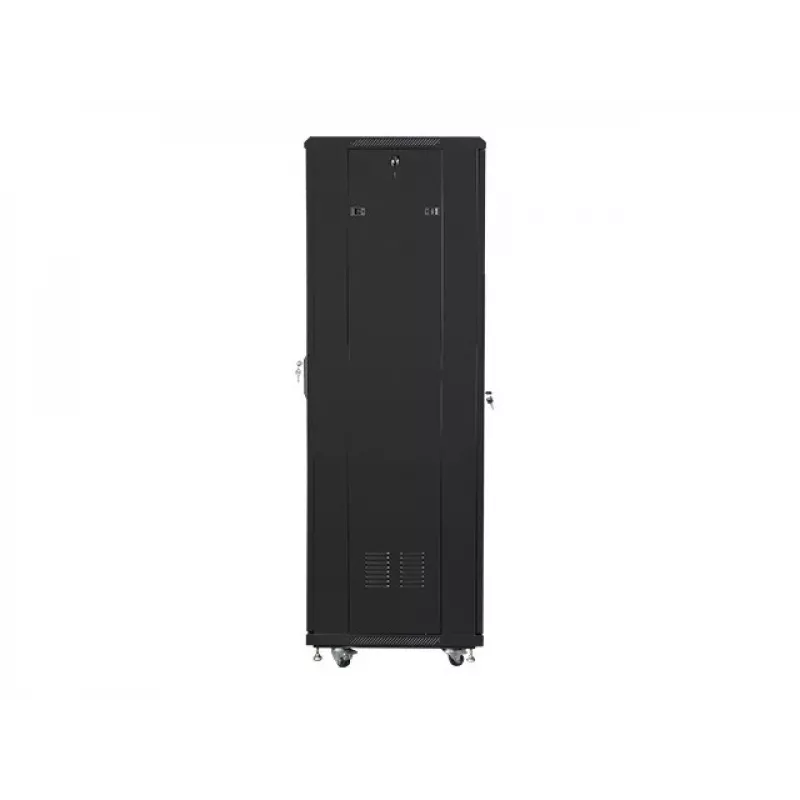

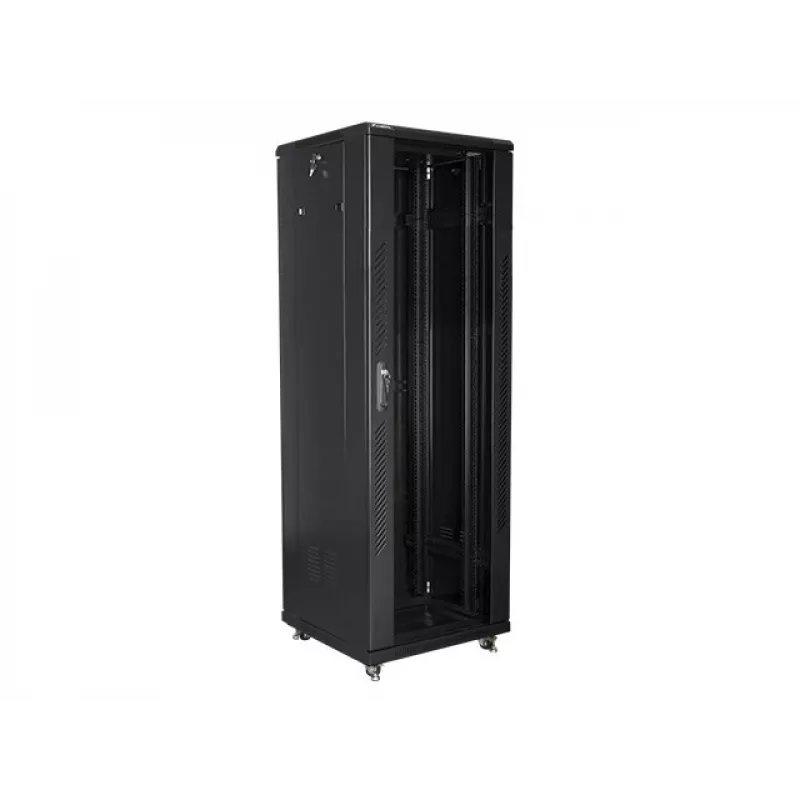

Rack autoportante Lanberg FF01-6637-12B

Freestanding rack Lanberg FF01-6637-12B is a 37U 19" cabinet designed to house network and server equipment with a maximum load capacity of 800 kg. Constructed from high-grade cold-rolled steel and finished in black, the cabinet is intended for indoor use (IP20) in server rooms, data centers, small and medium businesses, and other installations that require substantial internal space for networking, CCTV, access control and low-voltage systems.

Advantages

The cabinet offers adjustable vertical mounting rails with full depth adjustment, removable side panels with locks, a rear steel door with lock, and a front tempered glass door that can be installed to open from the left or right. Top and bottom cable entry panels (blank panels included) simplify wiring routes. The package contains a fan tray with two 230 V fans, M6 cage nuts and additional rail-mount accessories. The structure ships in three flat packs to facilitate transport and on-site assembly.

Suitable for

• Network equipment installations (switches, routers, patch panels)
• Server rooms and data centers
• CCTV and IP surveillance systems
• Access control, alarm and fire protection low-voltage systems
• Small and medium business IT infrastructure

Key specifications

• Brand: LANBERG
• Model: FF01-6637-12B
• Rack capacity: 37U (19")
• Maximum load capacity: 800 kg
• Dimensions (H×W×D): 1826 × 600 × 600 mm
• Maximum mounting depth: 520 mm
• Weight: 78 kg
• Colour: Black
• IP rating: IP20
• Included: front tempered glass door with lock, rear solid steel door with lock, removable side panels with locks, fan tray with 2 × 230 V fans, M6 cage nuts, blank cable entry panels

How to use

Assemble the cabinet from the three flat packs following the supplied instructions, then position it in a suitable indoor location. Fit the adjustable vertical mounting rails to the required depth, secure them with the provided M6 cage nuts and mount equipment in the 37U frame. Route cabling through the top or bottom cable entry panels and secure side panels and doors using the integrated locks. Connect the fan tray to a 230 V supply and verify airflow. Use the adjustable feet or castors to level or move the cabinet as needed.

Recommendations

Place the cabinet on a stable, level floor in a dust-controlled indoor environment. Allow clearance around the front and rear for airflow and maintenance. Do not exceed the specified 800 kg load capacity and follow equipment manufacturer guidance for rack-mount spacing and ventilation.
