Case per computer Darkflash DB460M Micro ATX nero

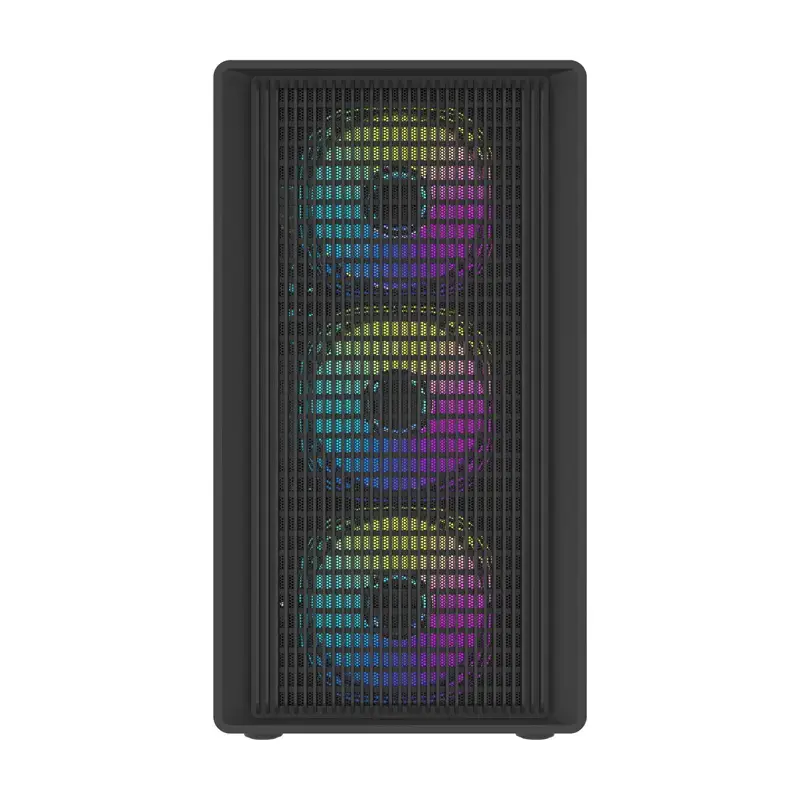

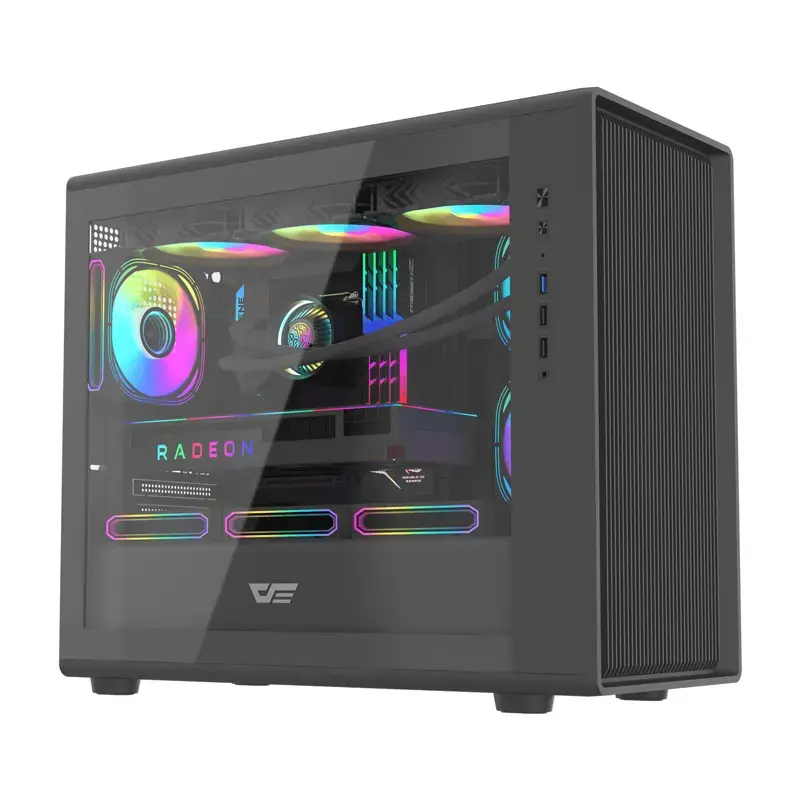

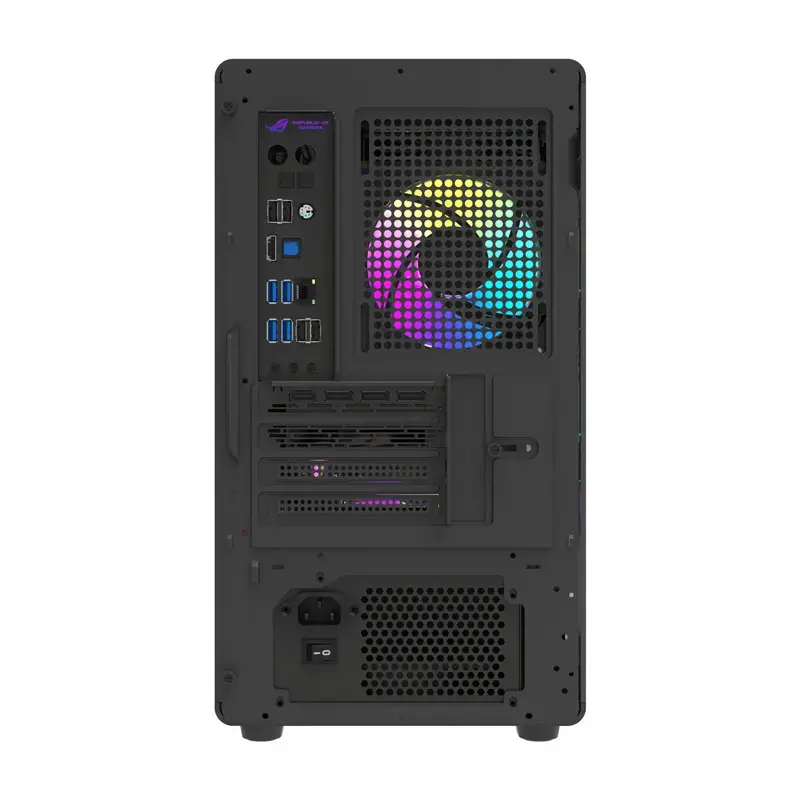

Darkflash DB460M is a micro-ATX computer case in black with a tempered glass side panel and a full-mesh front panel. It supports M-ATX and ITX motherboards and provides space for long graphics cards, multiple cooling options and front-panel USB connectivity. The interior layout and tool-free clamshell side panel simplify access to components and upgrades, while the mesh front and multiple fan mounts enable effective airflow management.

Advantages

The chassis combines a tempered glass side panel that opens without tools, a full-mesh front for improved airflow, and a roomy interior that accepts graphics cards up to 420 mm in length and CPU coolers up to 174 mm in height. It supports extensive air and water cooling configurations (up to twelve 120 mm fans or a 360 mm radiator), offers front USB 3.0 and USB 2.0 ports, and is constructed from durable 0.5 mm SPCC steel in a compact tower footprint.

Suitable for

• Gaming builds using M-ATX or ITX motherboards
• Compact workstations requiring strong cooling
• PC builders who need space for long GPUs and easy component access

Key specifications

• Form factor: Micro-ATX / ITX support
• Case type: Compact tower with tempered glass side panel
• Material: 0.5 mm SPCC steel
• Maximum GPU length: 420 mm
• Maximum CPU cooler height: 174 mm
• Maximum PSU length: 240 mm
• Drive bays: 2 × 3.5" HDD, 2 × 2.5" SSD
• Expansion slots: 4
• Fan support: up to twelve 120 mm or four 140 mm fans; mounting layout — Rear: 120 mm ×1; Top: 120 mm ×3 or 140 mm ×2; Bottom: 120 mm ×3; Front: 120 mm ×3 or 140 mm ×2
• Liquid cooling support: Top up to 360/280/240 mm, Rear 120 mm
• Front connectors: USB 3.0 ×1, USB 2.0 ×2, HD Audio
• Dimensions (H×W×D): 410 × 220 × 470 mm
• Color: Black

How to use

Install an M-ATX or ITX motherboard on the supplied standoffs, then route power and data cables through the case openings to the power supply mounted at the bottom. Fit storage drives into the dedicated 3.5" and 2.5" bays, install the GPU (up to 420 mm) into the PCIe slots and secure the CPU cooler within the 174 mm height limit. Use the tool-free tempered glass clamshell panel to access components for installation or maintenance. Configure fans and optional radiators according to the chosen cooling setup while ensuring unobstructed airflow through the mesh front.

Recommendations

For optimal cooling performance, balance intake and exhaust fans and consider installing a front intake configuration with up to three 120 mm or two 140 mm fans combined with top exhaust and a rear exhaust. When fitting a long graphics card, verify clearance with front fan mounts and route cables to avoid restricting airflow.
