Case per computer DeLOCK 47200

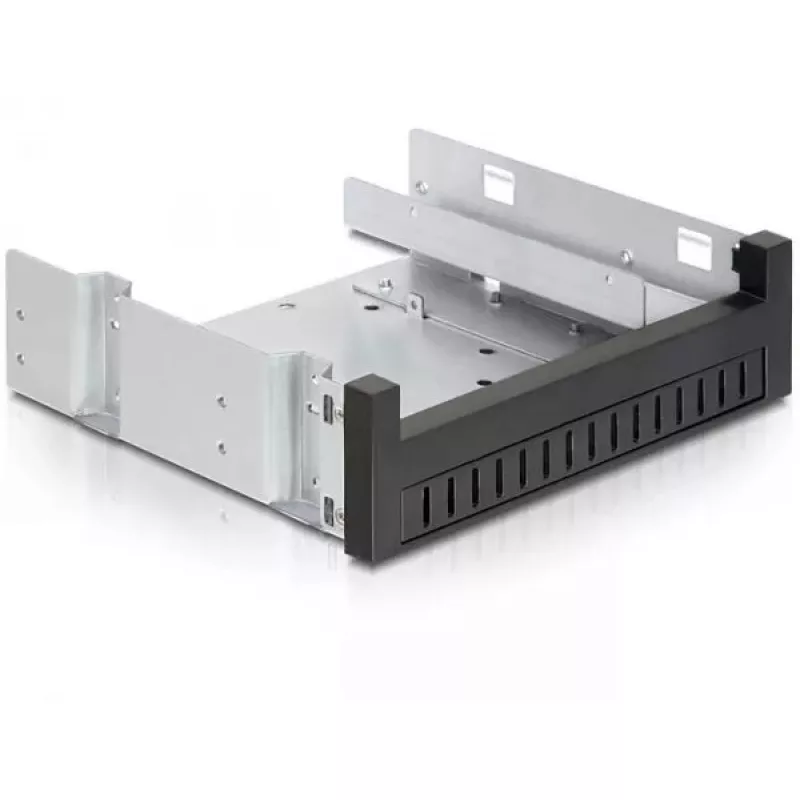

Use this Delock installation frame to mount drives into a free 5.25" bay of your computer. The frame supports installation of one 5.25" slim drive together with either one 2.5" hard drive or one 3.5" hard drive, allowing a combination of optical or slim devices and internal storage in a single bay.

Advantages

The Delock installation frame enables flexible use of a 5.25" bay by accommodating a slim 5.25" device plus a 2.5" or 3.5" HDD. It simplifies internal drive integration without requiring additional full-height bays and is compatible with standard 5.25" openings.

Key specifications

• Supported front bay: 1 × 5.25" free bay
• Supported slim drive: 1 × 5.25" slim drive
• Supported HDD options: 1 × 2.5" HDD or 1 × 3.5" HDD
• Manufacturer: Delock

How to use

Insert the installation frame into an available 5.25" bay, secure it according to your chassis mounting method, then install the 5.25" slim drive into the front position of the frame. Mount either one 2.5" HDD or one 3.5" HDD into the designated slot, fasten the drives, and connect power and data cables to the motherboard and power supply.

Recommendations

Ensure the chosen HDD thickness and mounting hole positions match the frame’s mounting points before installation. Power off the PC and disconnect all cables prior to fitting the frame and drives.
