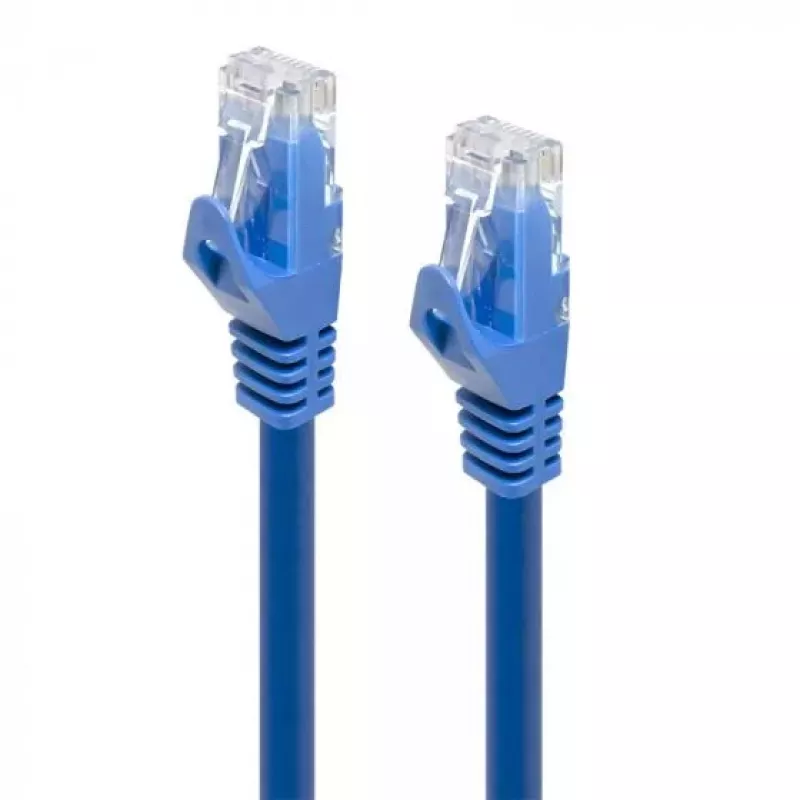

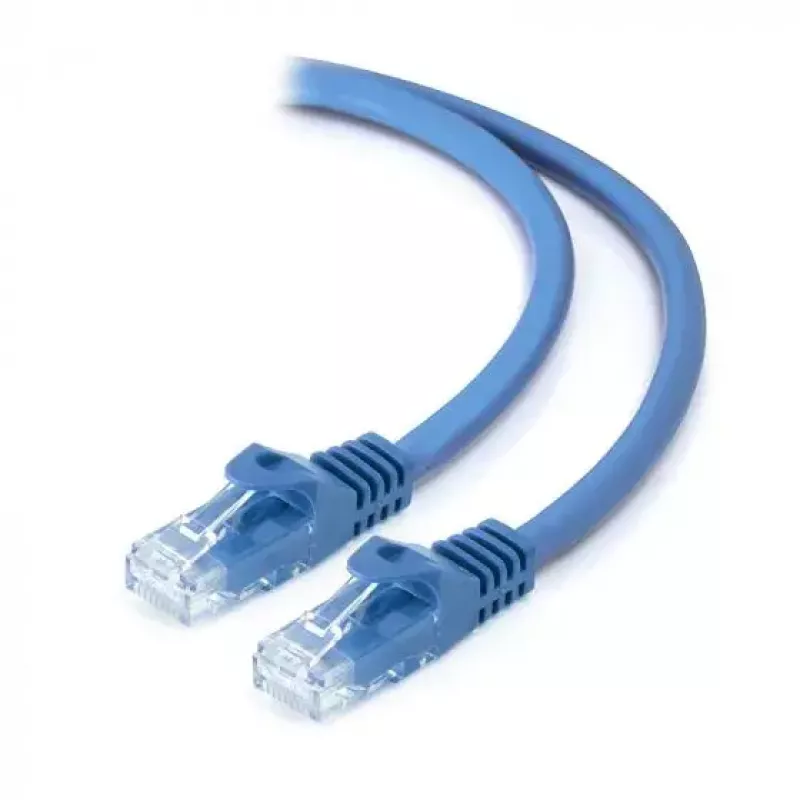

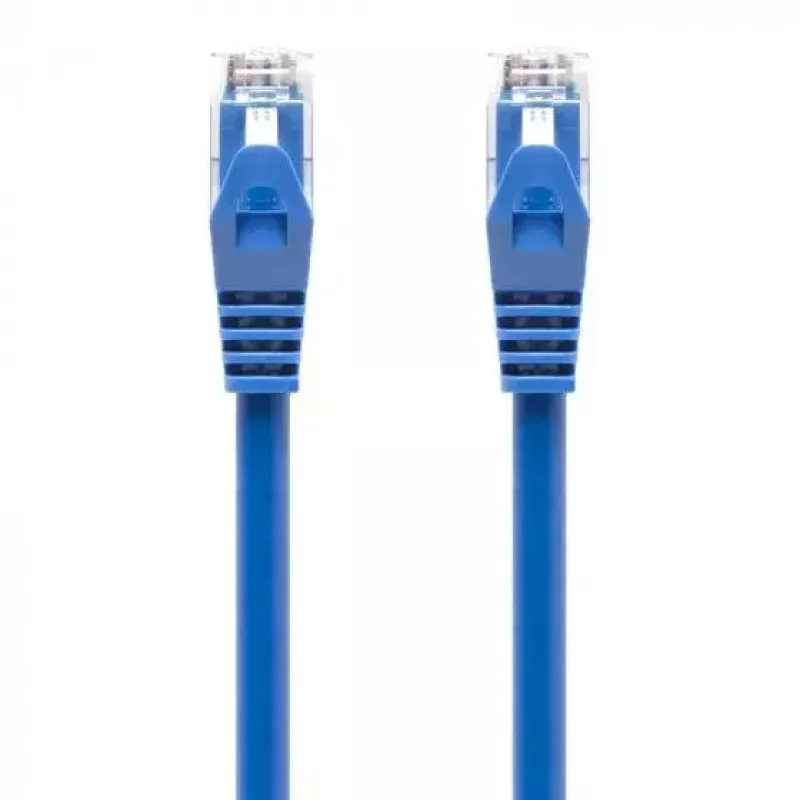

Cavo di rete ALOGIC blu CAT6 LSZH 1m

The ALOGIC Blue CAT6 LSZH 1m network cable is designed for high-speed Ethernet connections and multi-gigabit protocols, supporting reliable transfer of voice, data, video and communication signals. It uses four pairs of 24 AWG insulated copper conductors separated by a cross spacer to maintain consistent pair spacing, reducing crosstalk and insertion loss for improved network performance. The cable is fitted with gold-plated RJ-45 connectors and a snagless boot for protection during installation.

Advantages

This CAT6 LSZH cable reduces impedance and return loss to help improve network speeds and signal integrity, with construction that supports lower crosstalk and higher data rates. Gold-plated RJ-45 connectors provide stable connectivity and corrosion resistance, while the snagless boot protects the connector during routing and installation. The LSZH jacket meets low-smoke, zero-halogen requirements for safer use in enclosed spaces.

Suitable for

• Wired Ethernet connections at home or office
• Connecting switches, routers, NAS and networked devices
• High-speed data transfer up to gigabit rates
• Environments where low-smoke, zero-halogen cabling is required

Key specifications

• Standard: CAT6
• Length: 1 m
• Conductor: 4 pairs, 24 AWG insulated copper
• Connector: RJ-45 with gold plating
• Jacket: LSZH (Low Smoke Zero Halogen)
• Typical data rate: up to 1000 Mbit/s (gigabit Ethernet)
• Manufacturer: ALOGIC, MPN: C6-01B-BLUE

How to use

Plug one RJ-45 connector into the Ethernet port of your router, switch or device and the other end into the target device. Ensure connectors click into place and avoid sharp bends or excessive pulling on the cable. Route the cable using cable management accessories if needed to prevent strain and maintain signal quality.

Recommendations

For optimal performance, use within standard gigabit Ethernet installations and avoid running the cable parallel to high-voltage power lines. Inspect connectors before installation and replace if pins or plating show damage. In installations demanding longer runs or higher-than-gigabit speeds, consider appropriate higher-category cabling.
