Cavo di rete Deltaco TP-620UV RJ-45 Cat6 20 m nero

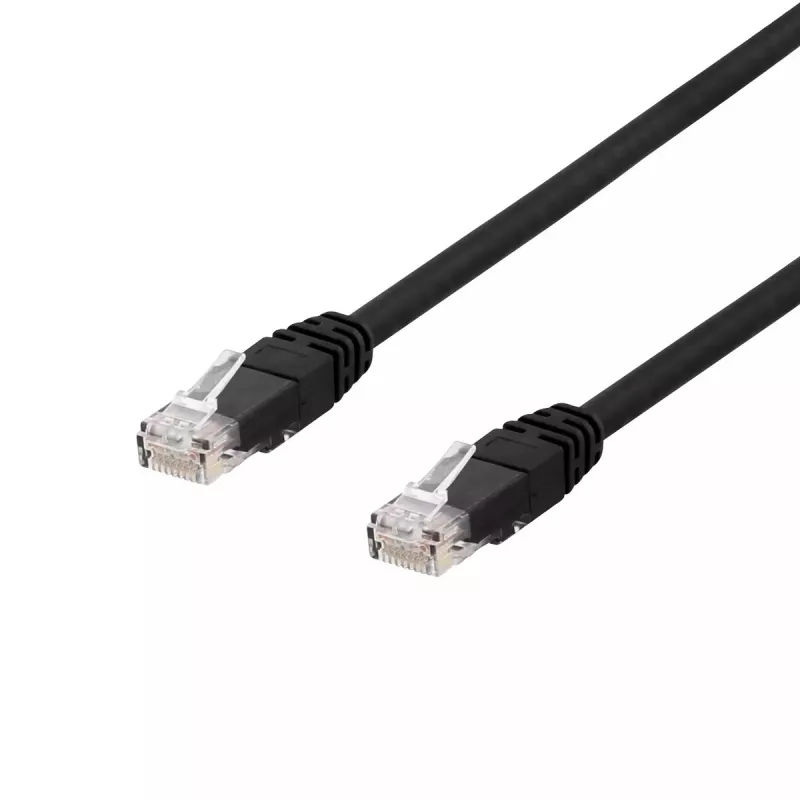

Networking cable Deltaco TP-620UV RJ-45 Cat6 20 m Black is a 20 metre U/UTP Cat6 patch cable with molded RJ45 connectors. The cable includes a central plastic cross separator along its entire length to maintain conductor pair geometry and improve performance up to 250 MHz. The outer sheath is UV resistant and the cable uses LSZH (low smoke, zero halogen) materials, which do not emit halogen gases in case of fire.

Advantages

The Cat6 construction with an internal plastic cross reduces crosstalk and helps sustain reliable data transmission. Molded RJ45 connectors provide secure connections and reduce strain at the cable ends. The LSZH jacket minimizes hazardous fumes in fire situations while UV resistance allows outdoor or sun-exposed installation where applicable. The cable is Delta certified and rated for operation up to 250 MHz.

Suitable for

• Wired Ethernet connections in home and office networks
• Patch panels, switches and routers with RJ45 ports
• Indoor installations and outdoor areas with sun exposure (UV resistant)
• Environments where low smoke and zero halogen materials are required

Key specifications

• Length: 20 m
• Standard: Cat6, U/UTP
• Frequency: up to 250 MHz
• Connectors: RJ-45 to RJ-45, molded
• Sheath: LSZH (low smoke, zero halogen)
• Colour: Black
• Certification: Delta certified

How to use

Connect one RJ45 end to a network device (such as a switch, router or computer) and the other end to the corresponding port on the opposite device or patch panel. Ensure connectors are fully inserted until the latch clicks. Avoid tight bends near the ends and do not overstretch the cable; maintain the minimum bend radius specified for Cat6 cables to preserve performance.

Recommendations

For optimal performance, use the cable within its specified frequency range and avoid running it parallel to power lines to minimize interference. When installing outdoors or in direct sunlight, confirm that connectors and terminations are protected from moisture.
