Cavo di rete Digitus Cat.6 U/UTP 305 m viola

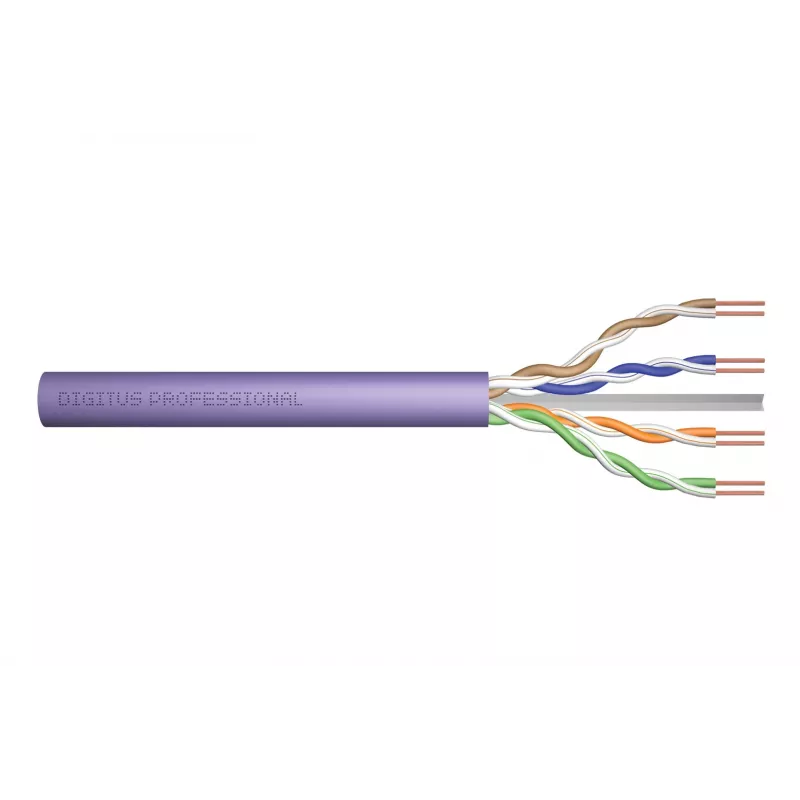

The Digitus Cat.6 U/UTP installation cable (305 m, violet) delivers future-oriented standards and high-end quality for structured data networks and building cabling. It supports data transfer rates up to 1 Gbit/s, a transmission frequency of 250 MHz and Power over Ethernet (PoE/PoE+). The cable conforms to ISO/IEC 11801, DIN EN 50288-6-1, DIN EN 50173 and IEC 60332-1 and is suitable for both analog and digital data transmission.

Advantages

U/UTP Cat.6 construction provides reliable performance for high-speed network applications while keeping the cable design straightforward and easy to terminate. The 305 m length is suitable for long runs in installations and the violet colour simplifies identification in cabling environments. The cable supports PoE and PoE+ for powering compatible devices and meets CPR class Dca-s2,d2,a1 for fire performance.

Suitable for

• Structured cabling in offices and data centres
• Ethernet networks up to 1 Gbit/s
• Power over Ethernet (PoE/PoE+) devices such as IP phones and access points
• Long horizontal or vertical installation runs requiring a 305 m reel

Key specifications

• Cable type: Cat.6 U/UTP installation cable
• Length: 305 m
• Data rate: up to 1 Gbit/s
• Transmission frequency: 250 MHz
• PoE support: Yes (PoE/PoE+)
• Colour: Violet
• Standards: ISO/IEC 11801, DIN EN 50288-6-1, DIN EN 50173, IEC 60332-1
• CPR classification: Dca-s2,d2,a1

How to use

Install the Digitus Cat.6 U/UTP cable following structured cabling best practices and local installation standards. Route the cable on cable trays or within conduits as required, avoid tight bends and excessive pulling force, and terminate with compatible Cat6 connectors or patch panels. Test each run for continuity, attenuation and return loss to verify compliance with performance requirements.

Recommendations

Use this cable for horizontal and backbone installations where 1 Gbit/s performance and PoE support are required; store and unspool the 305 m reel on a suitable dispenser to prevent kinking during installation.
