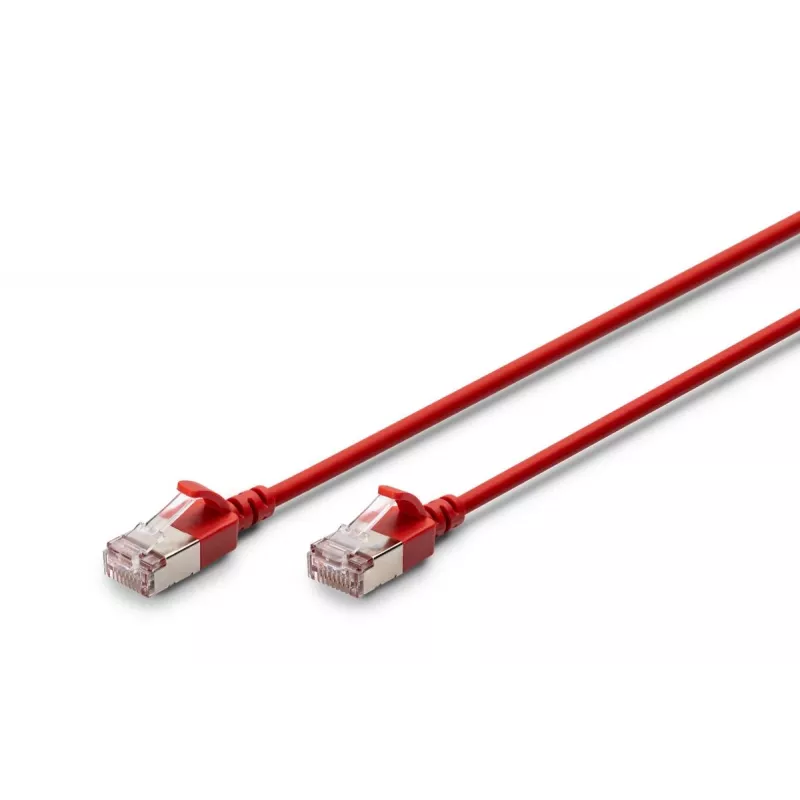

Cavo di rete Digitus CAT 6A DK-1632-A-015S-R RJ-45 Cat6a 1,5 m rosso

The DIGITUS Network Cable CAT 6A DK-1632-A-015S-R is a 1.5 m slim patch cable designed for high-speed data transmission up to 10 Gbit/s with a frequency rating of 500 MHz. It features F/FTP shielding to reduce electromagnetic interference, RJ-45 connectors with bronze and gold plating for reliable contact, and an LSZH jacket for low smoke and halogen-free performance. The slim, flexible design allows easy routing in confined spaces and suits data centers, high-density installations and home offices.

Advantages

The cable’s small outer diameter and flexible jacket enable effortless installation in tight cable channels. Conformance to ISO/IEC 11801 and DIN EN 50173 CAT 6A standards ensures the cable meets channel specifications and delivers tested performance including near-end crosstalk (NEXT) up to 500 MHz. A molded anti-kink sleeve with strain relief and locking lever protection prevents connector damage and accidental unplugging. PoE+ ready design supports power-over-Ethernet applications.

Suitable for

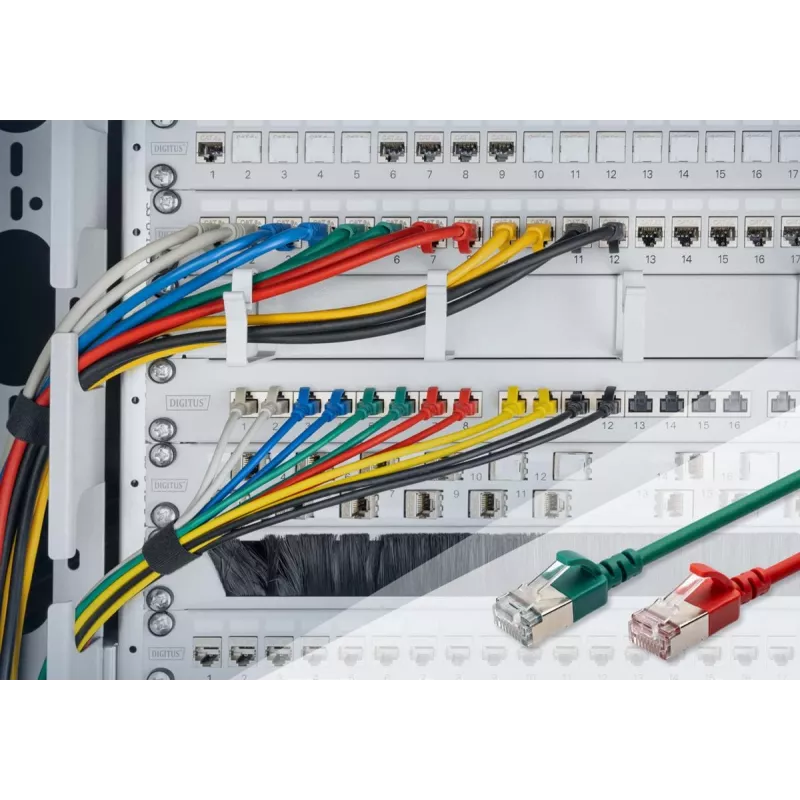

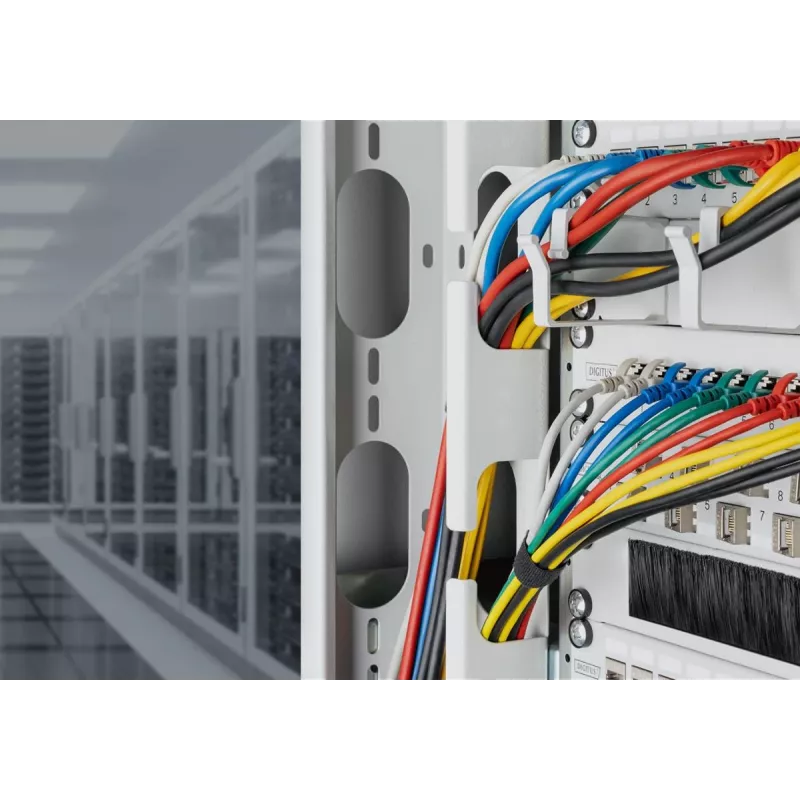

• Data centers and server rooms
• High-density networking racks and patch panels
• Home offices and workplace connections
• PoE+ powered devices (IP phones, cameras, access points)

Key specifications

• Standard: ISO/IEC 11801, DIN EN 50173 CAT 6A
• Data rate: up to 10 Gbit/s
• Frequency: 500 MHz
• Length: 1.5 m
• Shielding: F/FTP

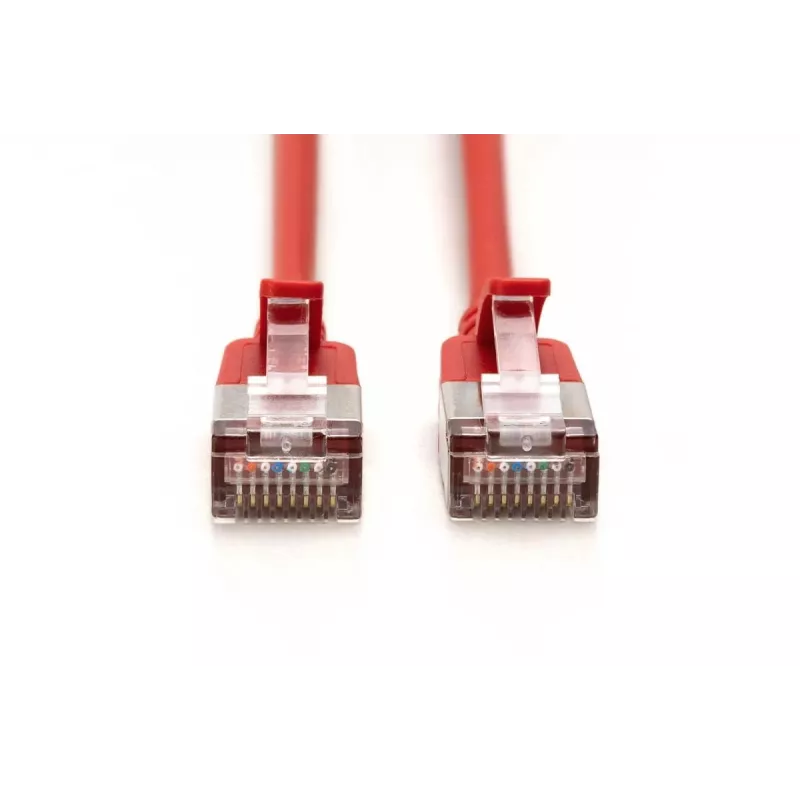

• Connectors: RJ-45 – bronze/gold plated
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Red
• MPN: DK-1632-A-015S-R
• EAN: 4016032497905

How to use

Connect one RJ-45 plug to the network port of your device and the other RJ-45 plug to the network switch, patch panel or wall socket. Route the slim cable through cable trays, conduits or along racks as required; the flexible jacket and small diameter facilitate installation in confined spaces. Ensure both ends are fully inserted until the locking lever engages to guarantee a secure connection.

Recommendations

For optimal performance, avoid sharp bends and excessive tensile stress. Maintain bend radii in accordance with standard installation practice and keep the cable away from strong electromagnetic sources where possible. Use the cable for Cat6A-compatible infrastructure to ensure full 10 Gbit/s and 500 MHz performance.
