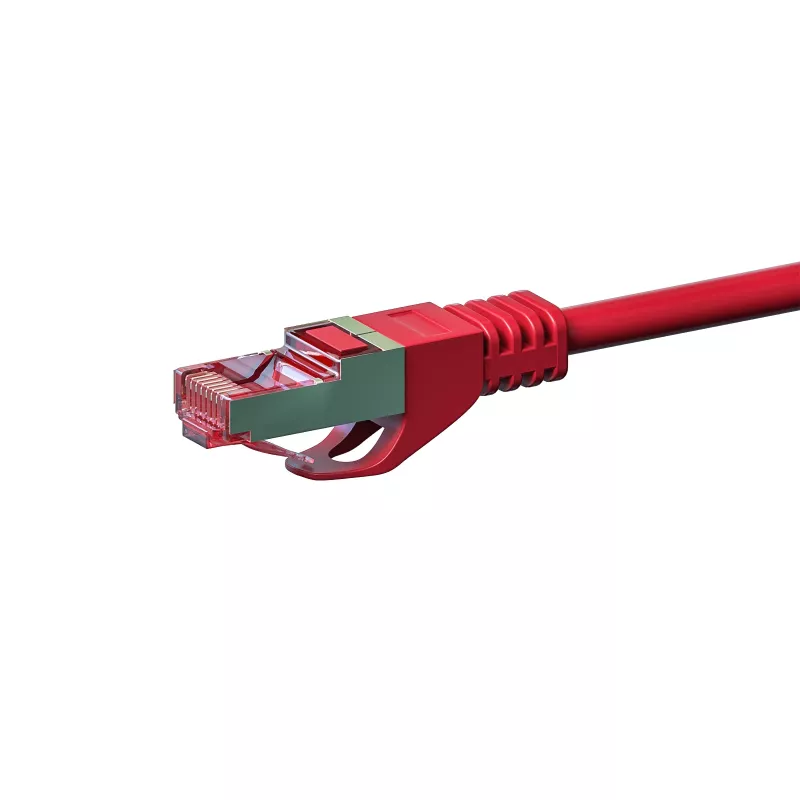

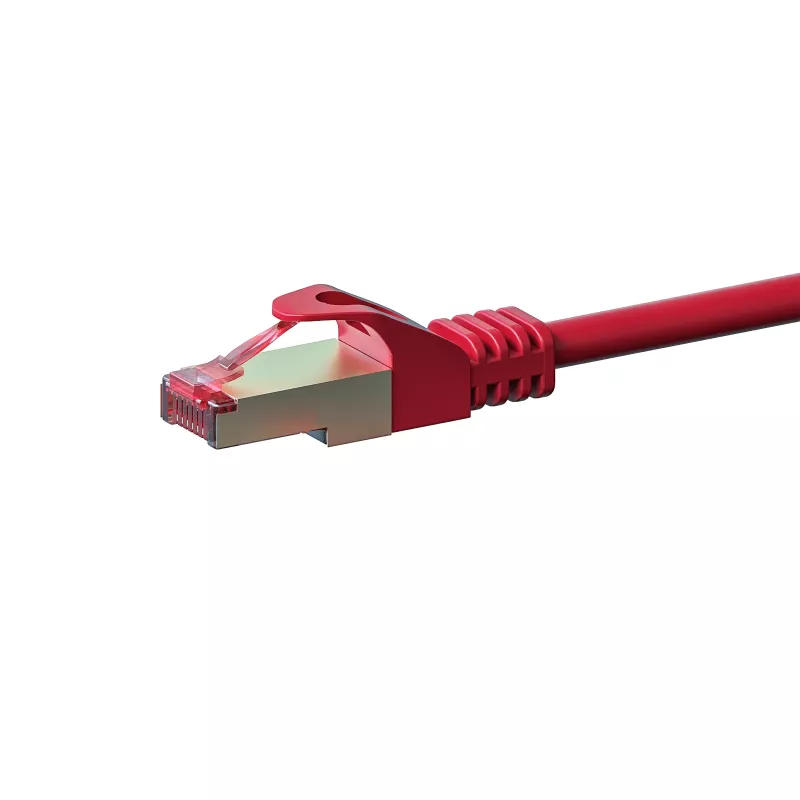

Cavo di rete DSIT CAT 6 LSOH - S/FTP - 10 metri - rosso (DC-S65-100)

Running a high-density data center or a busy office network? This 10-meter red CAT 6 patch cable from DSIT delivers reliable, high-speed connectivity for servers, switches, and workstations. Its S/FTP shielding with individually foiled pairs and an overall braid ensures excellent protection against electromagnetic interference, making it ideal for environments with heavy cable traffic or industrial noise. The LSOH jacket emits low smoke and zero halogens in case of fire, adding an extra layer of safety for enclosed spaces. With gold-plated RJ45 connectors, this cable maintains a stable connection for 10 Gigabit Ethernet up to 250 MHz bandwidth.

Key specifications

• Category: CAT 6
• Shielding: S/FTP (Screened/Foiled Twisted Pair, PiMF)
• Length: 10 meters
• Colour: Red
• Jacket material: LSOH (Low Smoke Zero Halogen)
• Conductor: Copper, 26 AWG, stranded
• Connectors: RJ45 male to RJ45 male, gold-plated (50µm)
• Data transfer rate: Up to 10 Gbps (10GBASE-T)
• Bandwidth: 250 MHz
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA-568B
• Fire safety: IEC 60332-1, IEC 61034, IEC 60754
• Compliance: RoHS, CE

Why choose it

This cable is built for performance and safety. The S/FTP shielding drastically reduces crosstalk and external interference, ensuring error-free data transmission even in electrically noisy environments. The LSOH jacket is a critical feature for installations in public buildings, offices, and data centers where fire safety regulations demand low smoke and halogen-free materials. The stranded copper conductors provide flexibility for easy routing, while the gold-plated connectors resist corrosion and maintain signal integrity over time.

Ideal use cases

• Connecting servers to switches in data centers
• Workstation patching in offices
• High-speed backbone links for 10G networks
• Industrial environments with high EMI
• Installations requiring LSOH compliance

Good to know

The cable operates reliably in temperatures from -20°C to 60°C, making it suitable for a wide range of indoor environments. It is backward compatible with CAT 5e and CAT 6 networks, so you can upgrade gradually without replacing existing infrastructure. Each pair is individually wrapped in foil, and the overall braid provides additional shielding, giving you the best possible protection against interference.
