Cavo di rete EFB Elektronik K5530.1 verde 1 m Cat5e SF/UTP

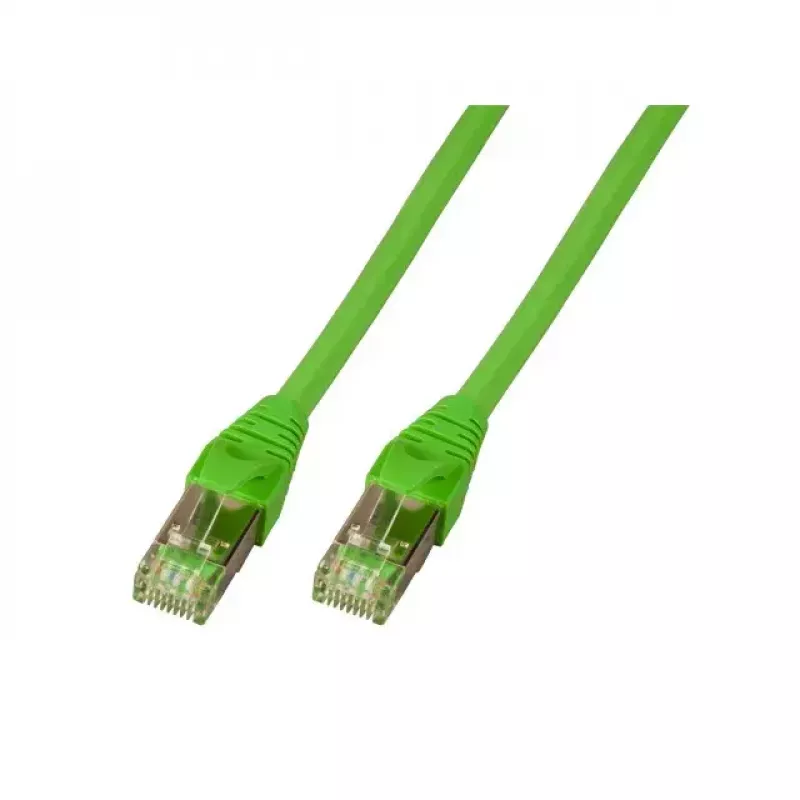

The EFB Elektronik K5530.1 is a 1 m Cat5e networking cable with SF/UTP (S-FTP) construction and a green PUR jacket. It is designed for standard Ethernet connections and provides shielded transmission with RJ45 plugs on both ends. The cable meets IEC 60603-7-3 connector specifications and features 50 µin gold-plated contacts for reliable signal transfer.

Advantages

This Cat5e SF/UTP cable offers low differential impedance and a full 360° shield contact for improved EMC performance and reduced interference. The moulded strain relief with latch protection increases mechanical durability, while gold-plated contacts ensure corrosion resistance and consistent connectivity. The PUR jacket and extended temperature range make the cable suitable for a variety of indoor and protected industrial environments.

Suitable for

• Ethernet connections up to Cat5e speeds (1 m runs)
• Shielded network environments requiring reduced EMI
• Connections to switches, routers, patch panels, and networked devices
• Indoor and protected industrial installations with moderate mechanical stress

Key specifications

• Length: 1 m
• Cable type: SF/UTP (S-FTP) Cat5e
• Conductor: 4 x 2 x AWG26/7
• Jacket material: PUR, color RAL6018, Ø = 6.2 mm
• Connectors: 2 × RJ45 plug, shielded, IEC 60603-7-3
• Contacts: 50 µin gold plated; contact durability: minimum 750 mating cycles
• Shielding: low impedance differential 360° shield contact
• Temperature range: -40 °C to +80 °C
• Standards: Cat5e

How to use

Connect the RJ45 plugs to the corresponding Ethernet ports on network devices such as switches, routers or PCs. Ensure the latch on the moulded connector clicks into place to secure the connection. Route the cable to avoid sharp bends and mechanical pinching; keep the cable away from strong sources of electromagnetic interference where possible.

Recommendations

For best performance maintain runs within recommended length for Cat5e and avoid repeated flexing at the connector ends; use strain relief or cable management if the installation is subject to movement or vibration.
