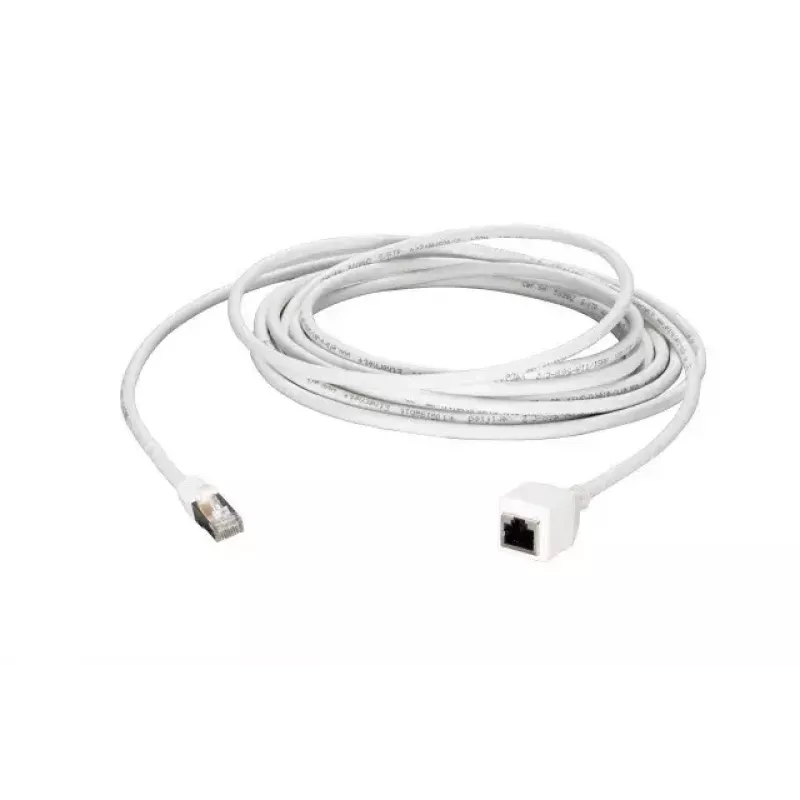

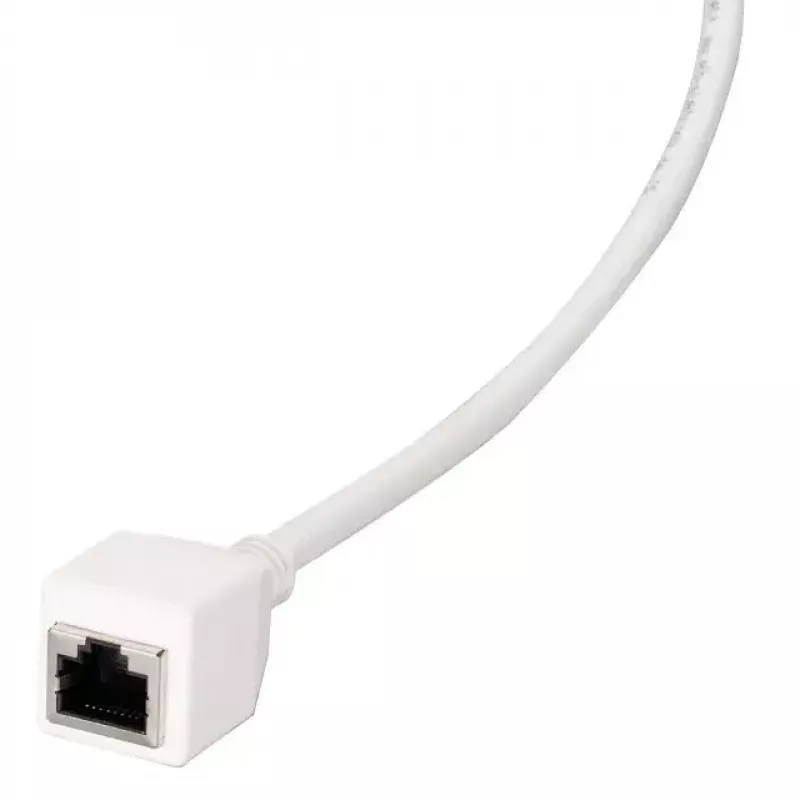

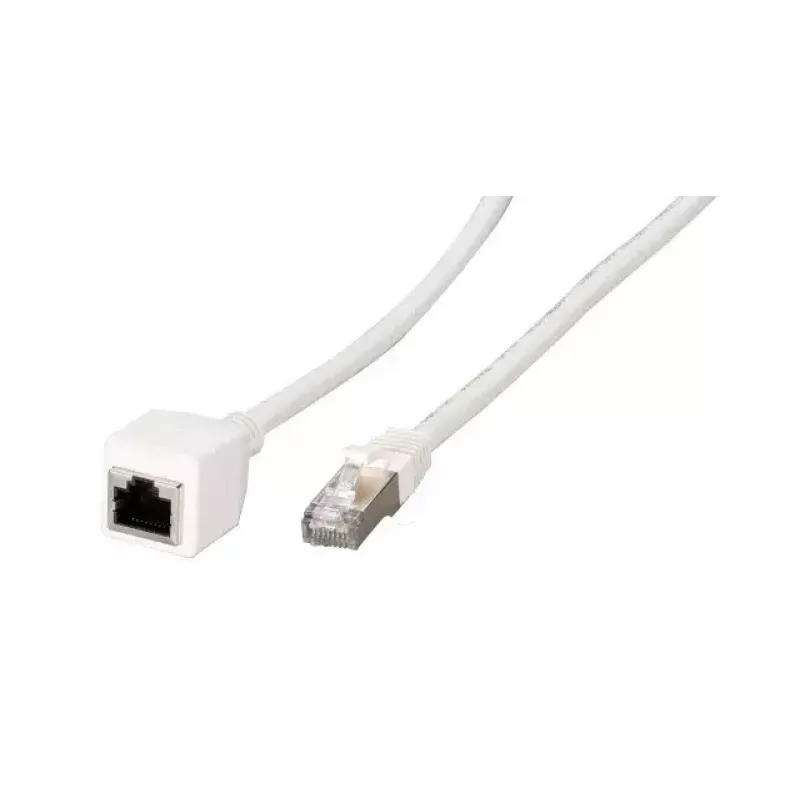

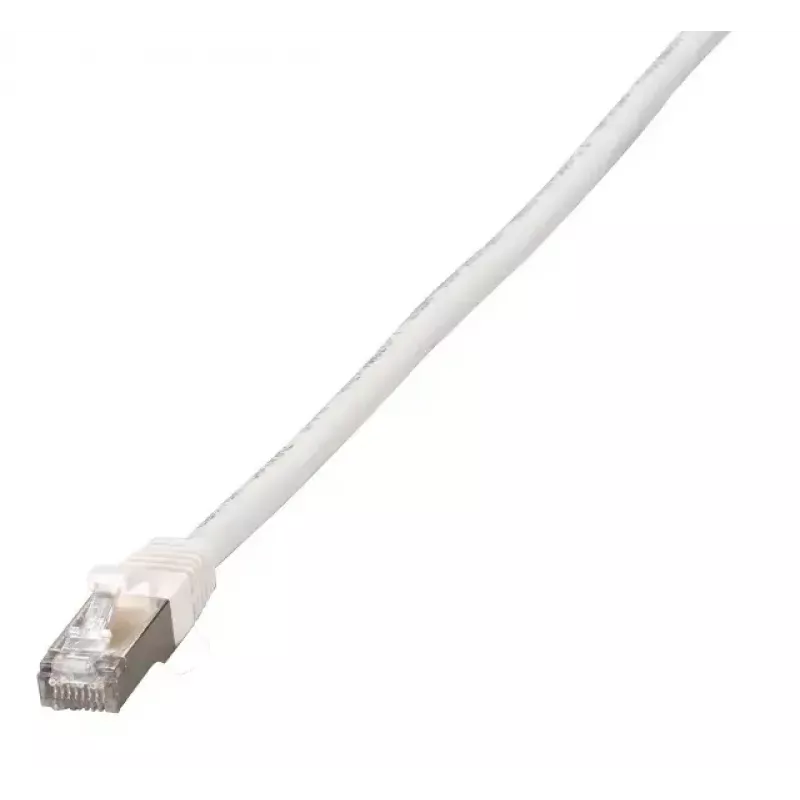

Cavo di rete EFB Elektronik K5546WS.10 RJ-45 Cat6a 10 m bianco

The EFB Elektronik K5546WS.10 is a 10 m RJ45 Cat6A shielded patch cable extension designed for data transmissions up to 10 Gbit/s according to ISO11801. It extends an existing network connection without replacing permanently installed cabling and can be used to protect device sockets by taking the mechanical load from frequent plug/unplug cycles. The cable features S/FTP shielding and gold-plated RJ‑45 connectors and comes in white.

Advantages

The Cat6A construction and S/FTP shielding provide improved protection against electromagnetic interference and support high-speed 10Gbit/s links where the infrastructure permits. Gold-plated RJ‑45 connectors improve contact reliability and reduce corrosion risk. A 10 m length offers flexibility to bridge longer distances between wall outlets and devices without re-routing fixed cabling. The extension also serves as a sacrificial connector to protect device ports from wear.

Suitable for

• Extending existing RJ45 network connections in offices and homes
• Connecting computers, notebooks, routers, switches and DSL modems
• Temporary or permanent link where an additional 10 m reach is needed
• Protecting device RJ45 sockets from repeated mechanical stress

Key specifications

• Standard: Cat6A (ISO11801 compliant)
• Transmission: up to 10 Gbit/s
• Shielding: S/FTP (overall shield with individually shielded pairs)
• Connectors: RJ‑45 to RJ‑45, gold-plated contacts
• Length: 10 m
• Colour: White
• Brand / MPN: EFB Elektronik / K5546WS.10
• EAN: 4049759261009

How to use

Plug one RJ‑45 connector of the K5546WS.10 into the existing wall outlet or patch panel and connect the other end to your device’s RJ‑45 socket. Ensure connectors click into place for a secure connection. For optimal performance, avoid sharp bends and keep the cable away from strong sources of electromagnetic interference. Test the link speed after installation to confirm 10Gbit/s capability where supported by the network equipment.

Recommendations

Use the extension to avoid replacing installed in-wall cabling and to reduce wear on device ports. For full 10 Gbit/s performance, verify that both connected devices and intermediate infrastructure (switches, patch panels, cables) support Cat6A and 10G speeds.
