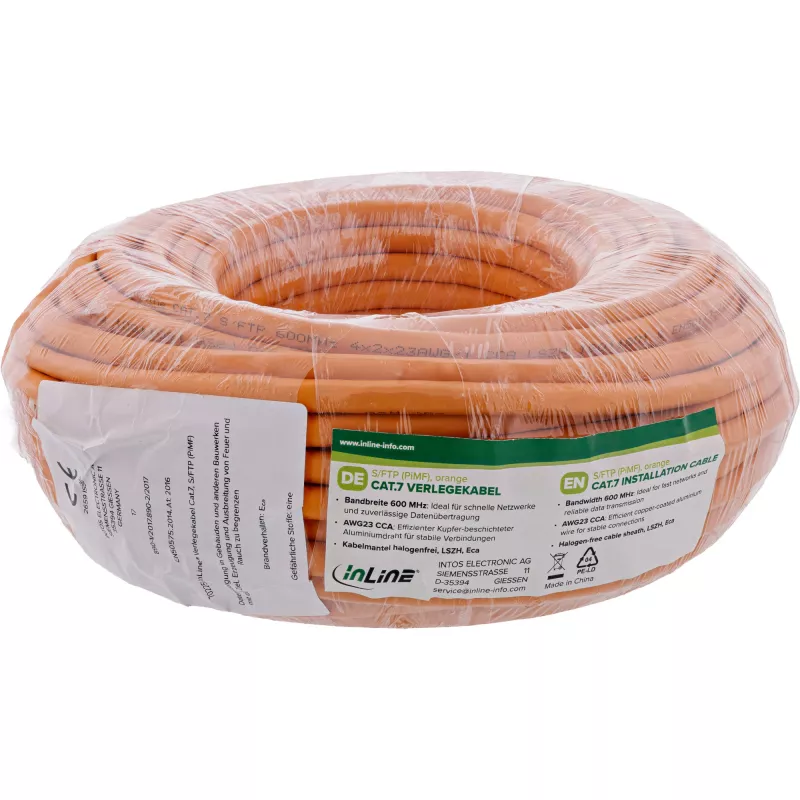

Cavo di rete InLine 70220I RJ45 Cat.7 600MHz 1m arancione

Cost-effective network cabling:High-quality CCA conductor material with 20% copper content offers reliable performance at an attractive price.
Future-proof with 600 MHz performance:Ideal for structured building cabling with Cat.7 standard up to 70 m permanent link.
PoE and PoE+ support:Suitable for modern network applications with IEEE 802.3af and 802.3at – ideal for access points, cameras and IP telephones.

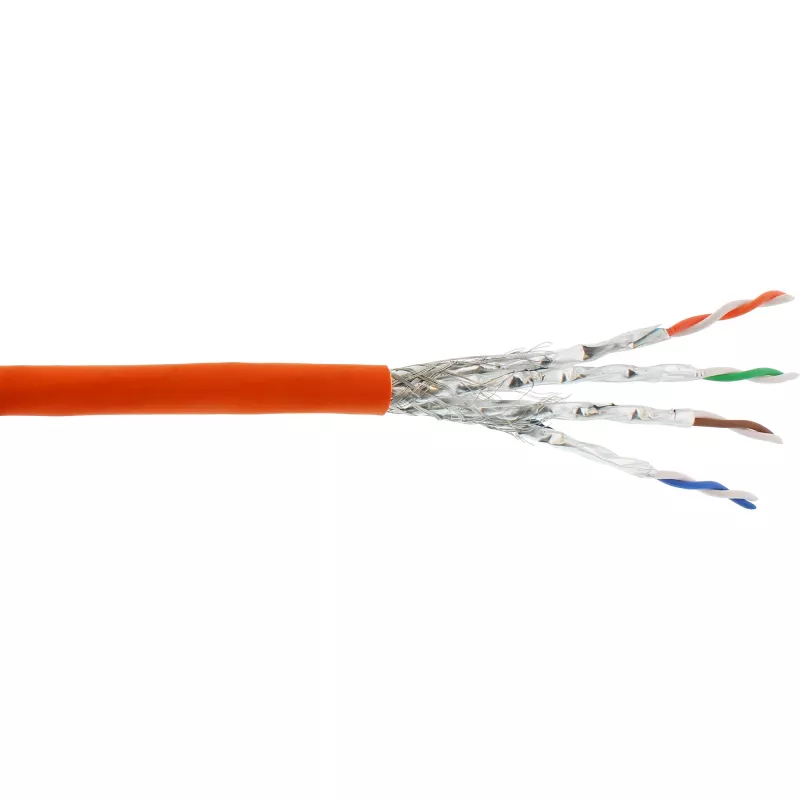

Robust shielding for EMC-critical environments:S/FTP (PiMF) with AL foil and braiding offers high interference immunity.
Halogen-free sheath:Safety in case of fire thanks to reduced smoke emission thanks to LSZH material.

InLine® Cat.7 installation cables with S/FTP construction (PiMF) and AWG23 conductors made of copper-coated aluminium offer a powerful and economical solution for professional network projects. With a transmission frequency of up to 600 MHz and a permanent link length of up to 70 metres, the cables are ideal for structured building cabling in residential and commercial properties.
Thanks to their support for IEEE 802.3af (PoE) and 802.3at (PoE+), the cables enable power-supply devices to be operated directly via the network – without additional power cables. The double shielding consisting of aluminium foil (≥25%) and aluminium-magnesium braiding (≥30%) ensures stable and reliable signal transmission even in interference-prone environments.
The LSZH (Low Smoke Zero Halogen) sheath material used complies with CPR classification Eca and thus offers increased safety in the event of fire. The orange sheathing also ensures quick identification during installation.
The various pre-assembled lengths allow for flexible planning and economical implementation – ideal for professional applications with a focus on price-performance.

Conductor material: copper-coated aluminium (CCA), 20% copper content
Cores: 8 conductors (4 pairs)
AWG: 23
Construction: 1/0.57 mm
Insulation diameter: 1.35 mm
Sheath material: LSZH
Sheath thickness: 0.55 mm ±0.05
Outer diameter: 7.6 mm ±0.3
Shielding: AL foil ≥25%
Braiding: AL-MG ≥30%
PoE support: IEEE 802.3af and 802.3at
Standards: ISO/IEC 11801, EN 50575, IEC 60332-1-2
CPR classification: Eca

InLine 70220I. Cable length: 20 m, Cable standard: Cat7, Cable shielding: S/FTP (S-STP), Data transfer rate: 10000 Mbit/s, Product colour: Orange

How to use

Plug the RJ45 connectors into the corresponding Ethernet ports on your network devices, ensuring a secure click-in connection. Use the 1 m InLine Cat.7 cable for short-distance links between patch panels, switches and devices. For PoE+ devices, confirm that the switch or injector provides the required power class and that connected equipment is PoE+ compliant. Route the cable to avoid sharp bends and sources of strong electromagnetic interference for optimal performance.

Recommendations

For best results, use the cable within structured cabling systems that maintain bend radius and separation from high-voltage power lines. Verify PoE+ compatibility of both the power source and powered device before relying on in-line power delivery. Store unused cables in a dry environment and avoid exposure to direct sunlight to preserve the halogen-free jacket.
