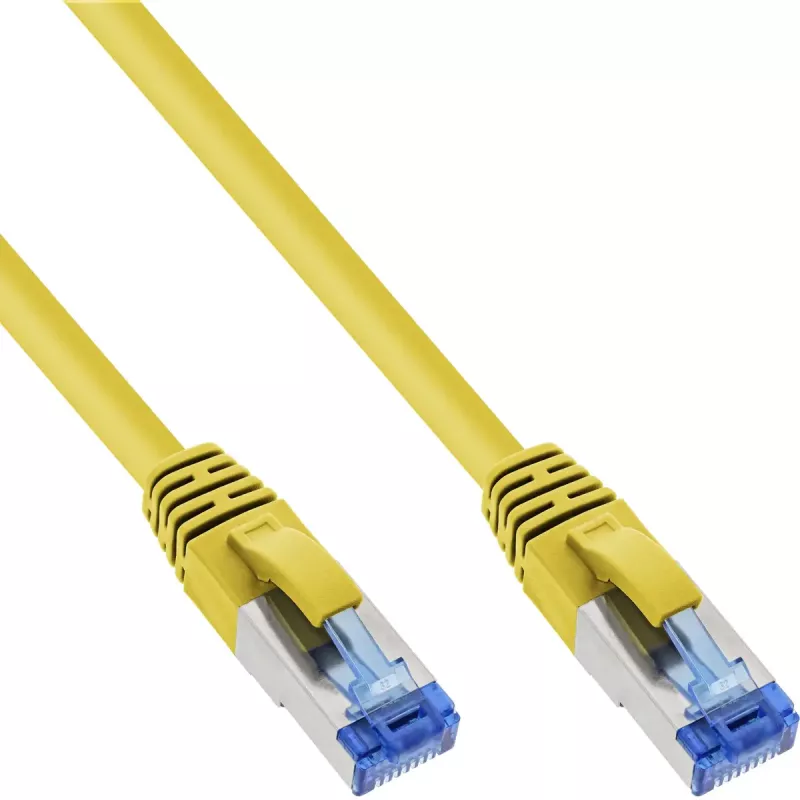

InLine B-76802Y Cat6A S/FTP (PiMF) cavo patch privo di alogeni, 2 m, giallo, confezione da 40

The InLine B-76802Y is a Cat6A S/FTP (PiMF) halogen-free patch cable supplied in a 40-pack. It features a solid copper conductor, overall braided shield with pair-wise foil shielding, and RJ45 connectors with 50µ" gold-plated contacts and snap-in protection. The cable is suitable for Gigabit and 10 Gigabit applications up to 500MHz and includes an enclosed test report.

Key features

• Cat6A S/FTP (PiMF) shielding
• Halogen-free LSZH jacket
• RJ45 connectors with 50µ" gold-plated contacts and snap-in protection
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications up to 500MHz
• Includes enclosed test report
• Supports PoE up to 802.3bt (max. 90W)
• 40 pieces packed in a PE bag and outer carton

Specifications

• Brand: InLine
• MPN: B-76802Y
• Product colour: Yellow
• Cable construction: S/FTP (PiMF) 4x2xAWG26/7, solid copper conductor
• Jacket: Halogen-free LSZH, compliant with IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector type: RJ45 plug straight (Side A and Side B)
• Assignment: 1:1
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Length: 2m
• Data transmission rate: 10Gb/s
• Max. supported data transfer rate: 10Gb/s
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Assignment according to TIA/EIA 568B2.1
• Country of origin: Taiwan
