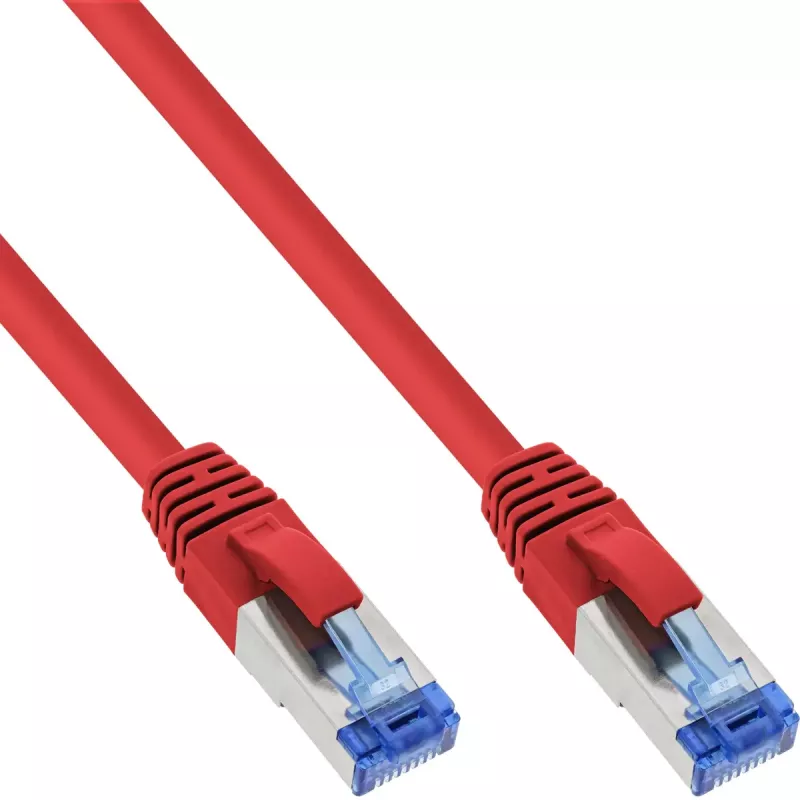

InLine B-76814R Cat6A S/FTP (PiMF) cavo patch privo di alogeni, 1,5 m, rosso, confezione da 50

The InLine B-76814R is a Cat6A S/FTP (PiMF) halogen-free patch cable with a length of 1.5 m, supplied in a 50-pack. It features a solid copper conductor, overall braided shield with pair-wise foil shielding, and RJ45 connectors with 50µ" gold-plated contacts.

Key features

• Cat6A S/FTP (PiMF) patch cable
• Halogen-free LSZH jacket
• RJ45 plug straight to RJ45 plug straight
• Blue-coloured connector for differentiation
• Suitable for Gigabit and 10 Gigabit applications
• Up to 500MHz
• Includes enclosed test report
• PoE/PoE+/PoE++: Yes
• Max. supported PoE standard: 802.3bt
• Max. supported power: 90W
• Max. supported data transfer rate: 10Gb/s

Specifications

• Brand: InLine
• MPN: B-76814R
• Product colour: Red
• Length: 1.5m
• Cable construction: S/FTP (PiMf) 4x2xAWG26/7, solid copper conductor
• Overall braided shield with pair-wise foil shielding
• Jacket: Halogen-free jacket, LSZH, compliant with standards IEC 60332-1-2, IEC 60754-1, IEC 60754-2, IEC 61034
• Connector: RJ45 (50µ" gold-plated contacts) with special design and snap-in protection
• Assignment: 1:1
• Conductor material: CU (copper)
• Outer diameter: 6.2mm
• Diameter: AWG 26
• Design: Round cable
• Operation temperature: -10 to +60°C
• Storage temperature: -20 to +70°C
• Signal: Network
• Assignment according to TIA/EIA 568B2.1
• Country of origin: Taiwan
